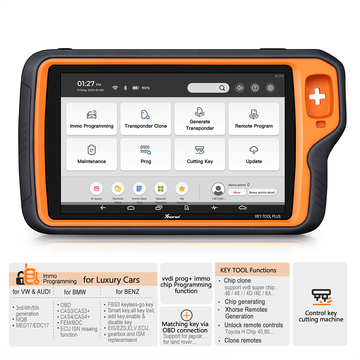

  • Xhorse VVDI Key Tool Plus All-In-One Automotive Solution for Locksmith

    Xhorse VVDI Key Tool Plus


    Highlights:

    1. VVDI Key Tool Plus provides an all-in-one security solution for locksmiths. Much easier to complete various automotive programming anywhere, no need to take your laptop, mobile phone.
    2. Support IMMO programming for luxury cars like BMW, BENZ, AUDI, and VW etc.
    3. Available to control the key cutting machines developed by Xhorse. Greatly saving cost and facilitating the work process. Bind with Xhorse key cutting machine to get one free BGA token everyday.
    4. Advanced Version with Free Update Online
    5. Cover all functions of VAG OBD Helper.

    6. ID48 96bit and read MB Key password online will need token, but both can read xhorse bonus points. Read Xhorse bonus points for copy 48 96 bit ( 100 points ) and Mercedes calcuation ( 200 points ).
    7. The most advanced application processor of VVDI Key Tool Plus, with integrated Bluetooth, FM, WLAN, and GPS modules, is a highly integrated baseband platform incorporating both modem and application processing subsystems to enable the best and most convenient connectivity solution. With this super processor, the enhanced overall quality is achieved for simultaneous voice, data, and audio/video transmission on the device.

    Features:

    1. All-In-One Automotive Solution for Locksmith
    2. Powerful Hardware,Super Advanced Processor
    3. IMMO Programming For Luxury Cars
    4. Prog Function, IMMO Data Tool
    5. Available to Control The Key Cutting Machines

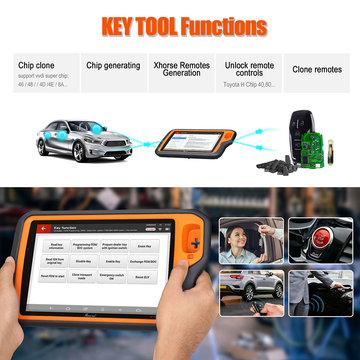

    VVDI KEY TOOL PLUS PAD Basic Functions:

    Generate Remotes and Smart keys
    Renew (unlock) remotes
    Remotes clone
    Program and Immo Transponder
    IC/ID Clone
    Frequency Detection
    Transponder detection, clone, and generating
    Support for Jaguar, Land Rover, Porsche, Volvo, Mitsubishi, and others
    Service light reset
    Key cutting machine control
    Common vehicle IMMO programming

    key tool plus function

    Other Functions:

    DOIP
    CAN-FD
    CAN and K protocol switch pin
    Chip pin detection
    Toyota Smart key programming without simulator
    Long-distance IMMO collection
    Built-in OBD matrix switch
    Radiofrequency simulator
    Smart key simulator
    Integrated key identification coil
    BENZ infrared reading head

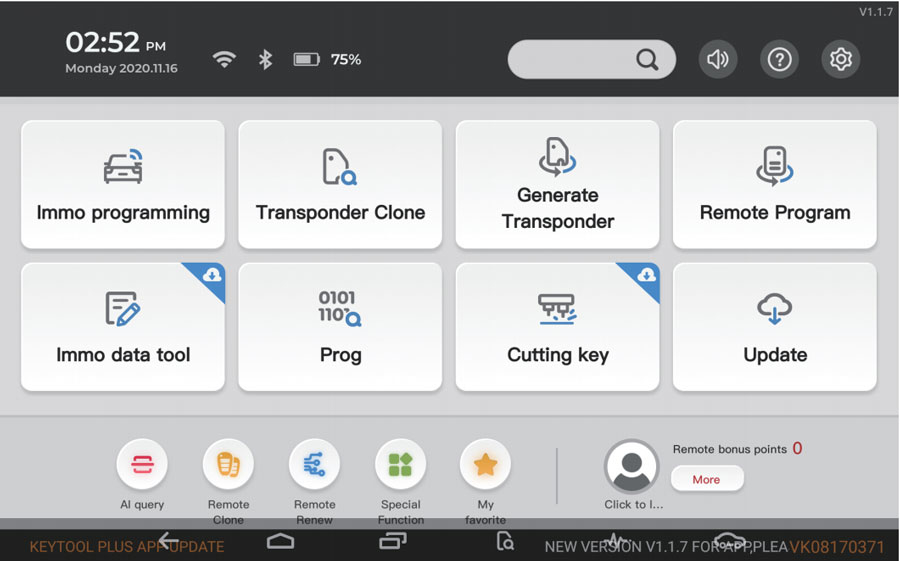

    Xhorse key tool plus functions

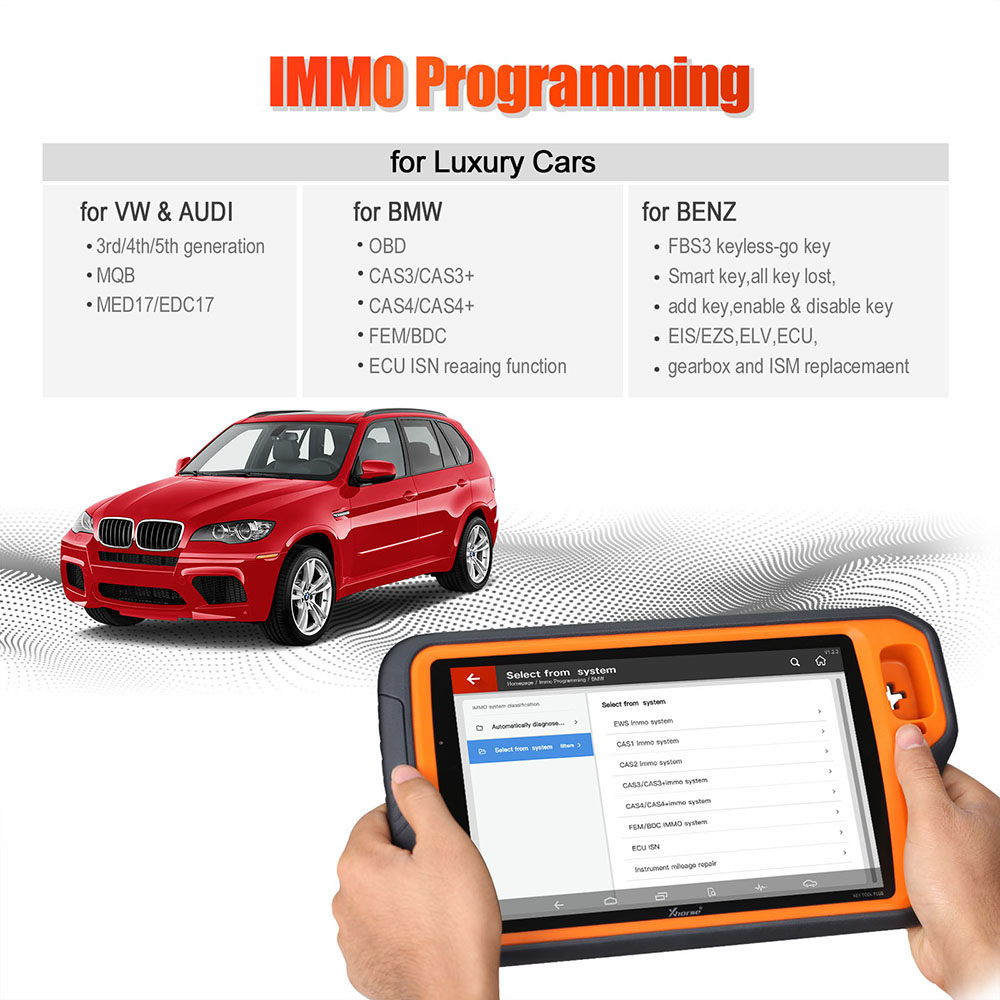

    IMMO Programming for Luxury Cars

    VW&AUDI:
    3rd/4th/5th generation, MQB, MED17/EDC17
    BMW: OBD, CAS3/CAS3+, CAS4/CAS4+, FEM/BDC, ECU ISN reading function
    BENZ: FBS3 keyless-go key, Smart key, all key lost, add key, enable & disable key, EIS/EZS, ELV, ECU, gearbox and ISM replacement
    Common Car Brands - Toyota, Honda, Mazda, Ford, etc.

    Key Tool Plus supports over 20,000 car models worldwide. We can select the car brands and car models on the immo programming interface. On this smart platform, we can easily find the car models we need by brand area, brand name, and A-Z word search.

    key tool plus immo programming

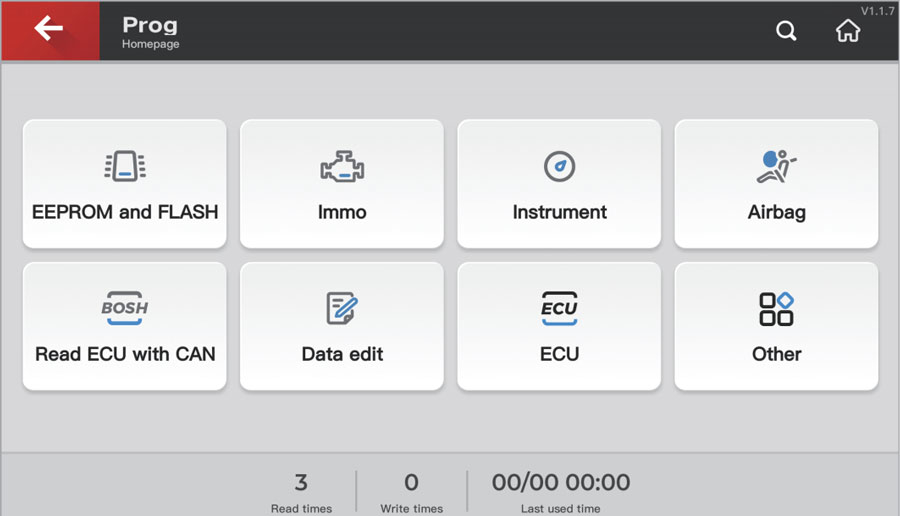

    Prog Function

    Key Tool Plus supports reading and writing common modules and chips. It covers "EEPROM and FLASH", "IMMO", "Instrument", "Airbag", "Read ECU with CAN" and "ECU", etc.

    Support EEPROM reading and writing: support reading & writing most types of transponders in the market.
    Support BMW immo module programming covering CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, and FEM.
    Support Land Rover RFA module reading and immo programming.
    Support Porsche BCM programming.
    Support read ECU with CAN on AUDI, BMW, and VOLKSWAGEN.
    Support Instrument programming on HONDA, KIA, and HYUNDAI.

    key tool plus Prog Function

    Note: To complete certain functions, users need to connect KEY TOOL PLUS to the specific adapters and get the required model prompt on the interface. The function is only effective on the advanced edition.)

    IMMO Data Tool (File Make Key)

    Key programming and certain settings can't be finished via OBD port on some car models due to their immobilizer protection system. Through a professional programming method - FILE MAKE KEY, the problem can be easily solved.

    [ File make key, to generate a car key via a data file. Users need to use the specific device to read the immo data, and generate a boot transponder to directly start the car, no need to match the original car.(Users may need to rewrite the data to the immo box when doing the programming process on some car models.) ]

    Xhorse Key Tool Plus supports File Make Key function for common car models and motorcycles. we can easily find the car models we need by brand area, brand name, and A-Z word search.

    Xhorse key tool plus IMMO Data Tool

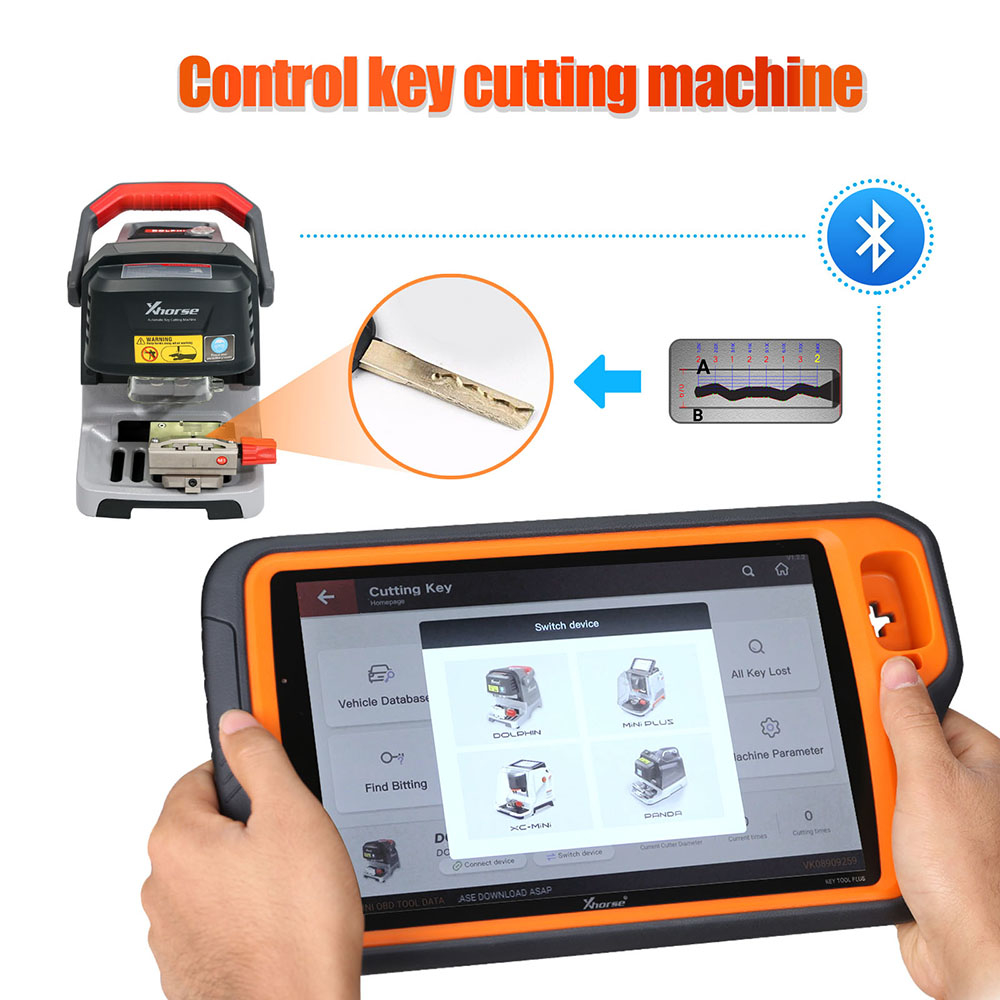

    Control Xhorse Key Cutting Machines

    Key Tool Plus is available to control the Xhorse key cutting machines(CONDOR, DOLPHIN, and PANDA), to perfectly work as an operation screen. By using KEY TOOL PLUS, completely free your mobile phones.
    xhorse key tool plus control key cutting machine

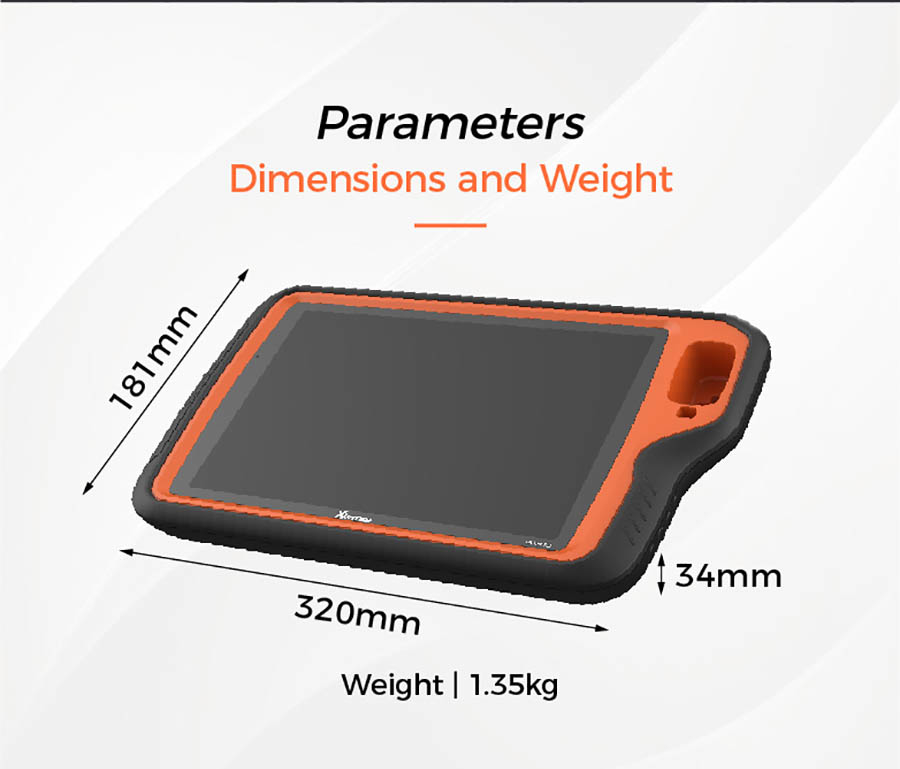

    KEYTOOL PLUS PAREMETERS:

    CPU: 8-core 2GHz (4xCortex-A53 up to 2.3Ghz,4xCortex-A53 up to 1.8Ghz)
    RAM+ROM: 4G+128G
    Operation System: Android 9.0
    Screen Size: 10.1" HD Anti-glare; Anti-fingerprint,Resolution up to FHD+ (2,400*1,080)
    Rear HD Camera: 13.0MP
    Battery Capacity: 10000mAh
    Charging: 30W Super Fast Charge
    Bluetooth: 5.0 Bluetooth
    WIFI: 2.4G/5G

    xhorse key tool plus parameters
    key tool plus camera
    key tool  plus battery

    The most advanced application processor of KEY TOOL PLUS, with integrated Bluetooth, FM, WLAN, and GPS modules, is a highly integrated baseband platform incorporating both modem and application processing subsystems to enable the best and most convenient connectivity solution. With this super processor, the enhanced overall quality is achieved for simultaneous voice, data, and audio/video transmission on the device.

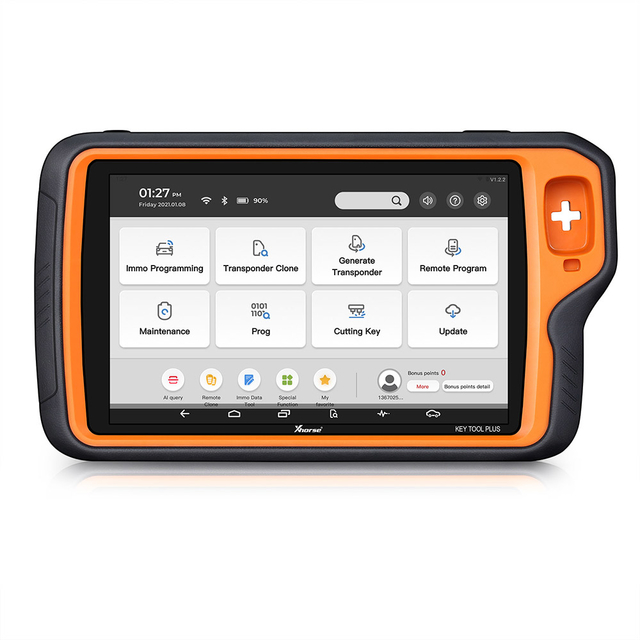

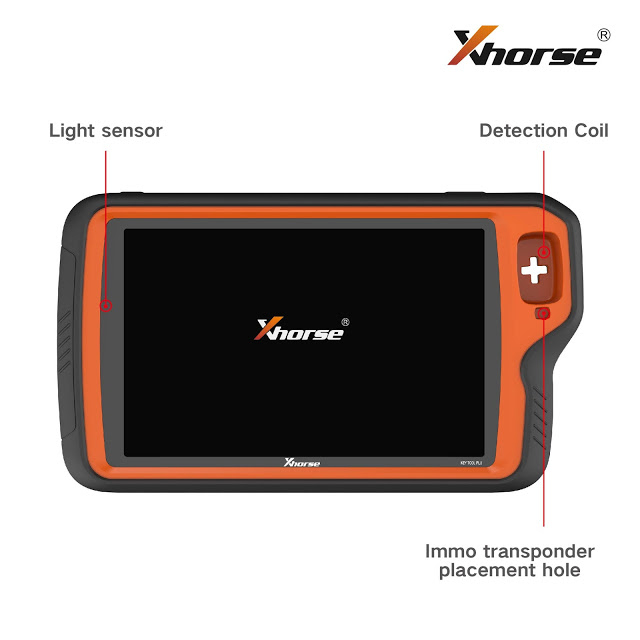

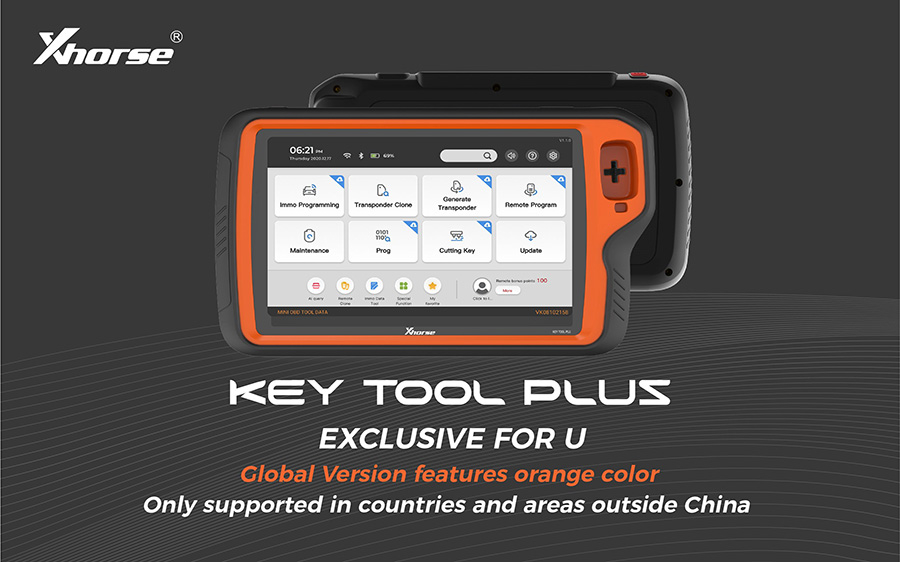

    Xhorse Key Tool Plus Overview:


    key tool plus

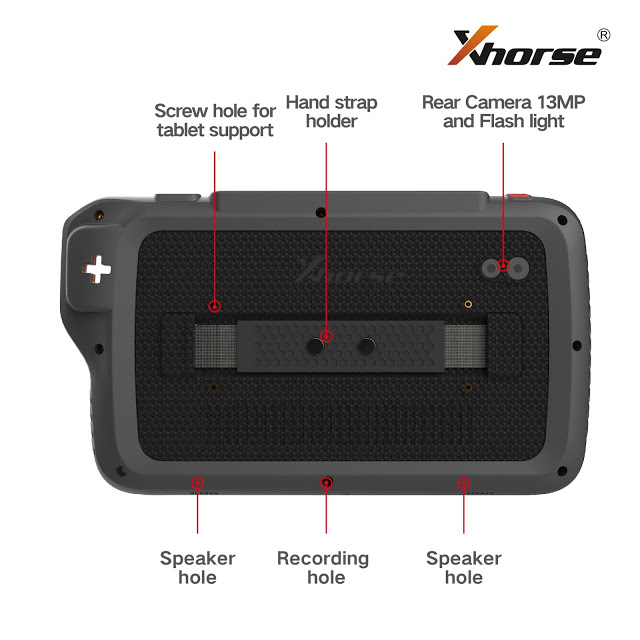

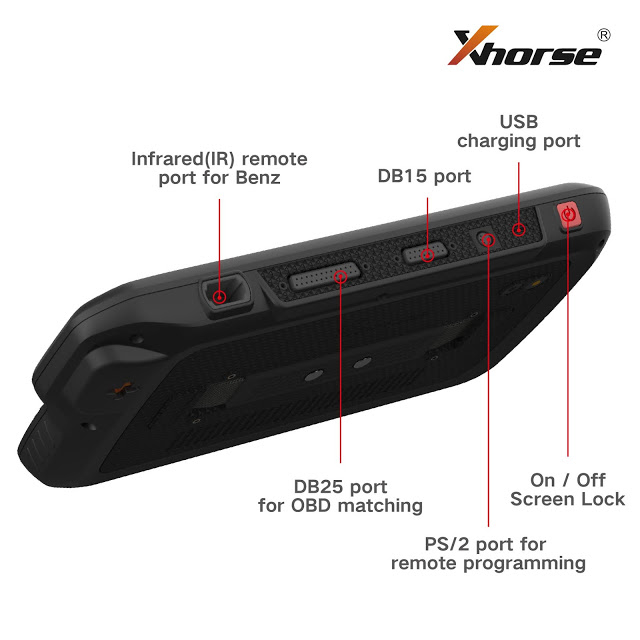

    Xhorse KEY TOOL PLUS PORT
    key tool plus PORT

    Key Tool Plus Ports Introduction:

    Light sensor: detect the brightness in the surrounding environment

    Detection coil (including 125K low, 13.56M Medium, 300-900M high frequency)

    • Support reading, writing, and cloning common immo transponders
    • Support reading common ID transponders
    • Support reading common IC transponders
    • Support frequency detection of common vehicle remotes

    Immo transponder placement hole for vehicle immo transponders

    USB charging port: support standard fast charge adapter and standard Type-C port DC-5V input.
    PS2 port for remote programming
    DB15 port: support standard & optional programming adapters with DB15 port
    DB25 port for OBD matching
    Benz Infrared (IR) port: support IR read Benz FBS3 & FBS4 smart key and support Benz IR reader

    VVDI Key Tool Plus FAQs:

    Q1: What are the features of VVDI Key Tool Plus Tablet?
    A1: KEY TOOL PLUS Tablet is a professional locksmith tool that integrates the main functions of remote control and chip, anti-theft matching, programming, accessory replacement, maintenance reset, etc., and also reserves future expansion capabilities. One device can solve all the needs of daily work.

    Q2. What policy does the KEY TOOL PLUS tablet have for regular customers.
    A2: We have always given priority to old customers, and will give them more preferential treatment. Old customers can book at very low prices as long as they have bonus points.

    Q3. How about the original VVDI series device after the KEY TOOL PLUS tablet comes out?
    A3: The KEY TOOL PLUS Tablet is used to fill the gaps in the KEY TOOL series of product lines, and provides a more convenient tool for the daily work of locksmiths. We will not stop the production and sales of VVDI2, VVDI MB, VVDI PROG and other products, old customers can continue to use, we will continue to provide development and upgrade, will not stop service. Please do not worry.

    Q4. I heard that old customers can migrate functions?
    A4: Yes, because the KEY TOOL PLUS tablet is divided into the basic version and the advanced version, the basic version does not include the anti-theft matching and programming functions of Volkswagen, BMW, Mercedes-Benz. After the migration, the original device function authorization is cancelled, and the relevant authorization is opened on the KEY TOOL PLUS tablet. In order to reduce the impact on the use of old customers, we decided to continue to provide half-year free licenses for the relocated old equipment.

    Q5. Your KEY TOOL PLUS tablet is an update version of KEYTOOL MAX, isn't it?
    A5: No, not just update version of VVDI Key Tool Max. KEY TOOL PLUS Tablet uses higher configuration hardware and supports more protocols and interfaces. Of course, KEY TOOL Super Tablet also covers all the functions of MAX.

    Q6. How do you plan for VVDI2, VVDI MB, and VVDI BMW tools in the future?
    A6: In the future, VVDI series products will continue to be upgraded, and will develop more towards specialized functions such as programming, coding codes, parameter refreshing, etc., and they are professional equipment for locksmiths. KEY TOOL PLUS Tablet focuses on solving daily work needs, so each has its own advantages.

    Q7. How about the KEY TOOL PLUS tablet configuration?
    A7: We have fully listened to the suggestions of the locksmith masters. Considering the sustainability of the product, we have adopted high-performance hardware configuration on the VVDI KEY TOOL tablet, such as 8-core CPU, 4G memory, 128G storage, 10.4 inch HD The screen and other configurations higher than the industry level, while integrating support for new technologies such as DOIP and CAN-FD, reserve sufficient space for future function expansion.

    Q8. Will VVDI KEY TOOL PLUS Tablet cost money in the future?
    A8: We have always insisted on free upgrades, and the upgrade of the main functions of the tablet will also be free. However, for functions with greater breakthroughs, such as the support of Mercedes-Benz FBS4, we will charge a certain upgrade fee because of the large investment in research and development.

    Q9. How about VVDI KEY TOOL PLUS IMMO Support List?
    A9: The VVDI MINI Key Tool Plus Tablet supports more than 90% of the common models on the market. At the same time, we will continue to improve and add new models, and these are free upgrades.

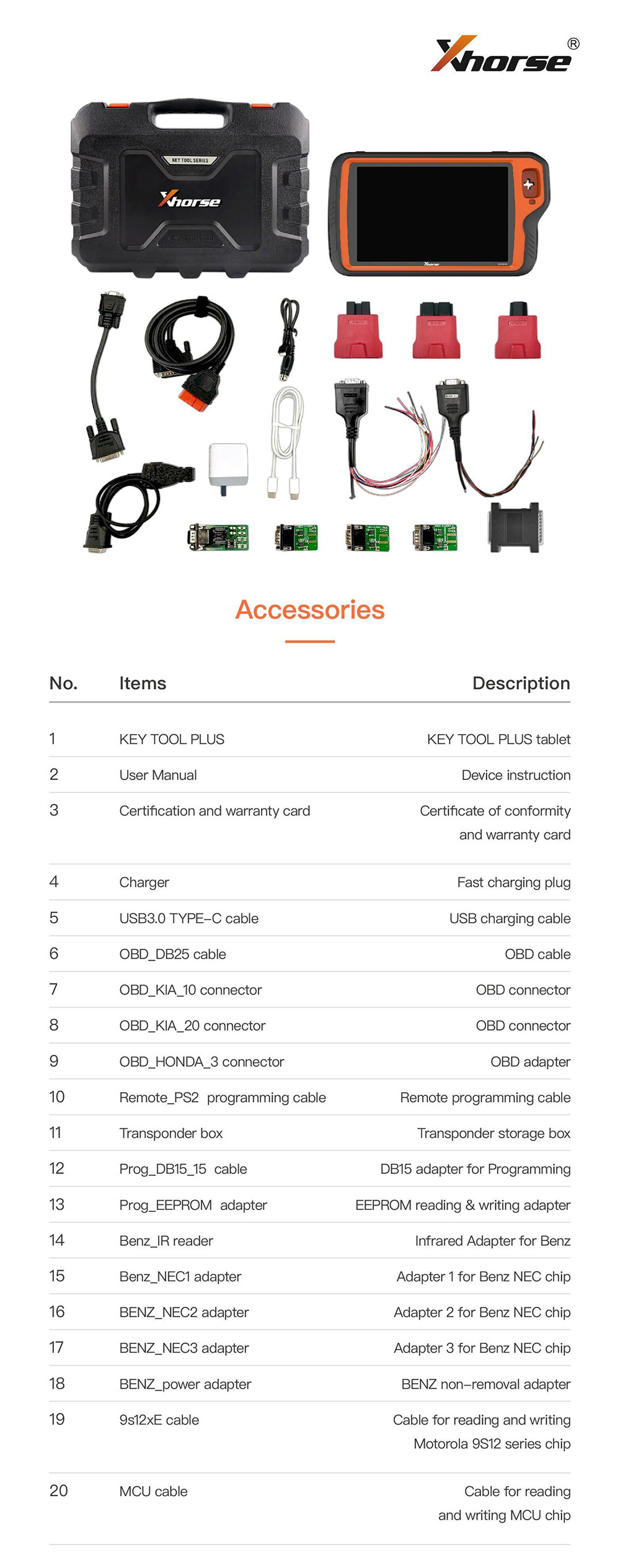

    Package List:

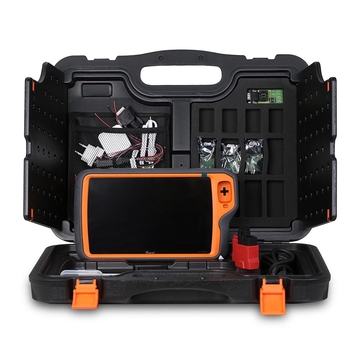

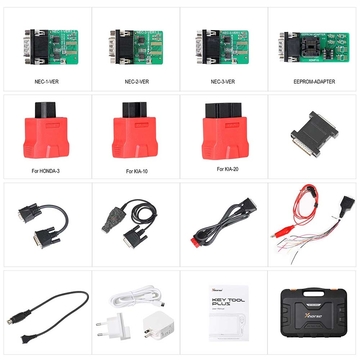

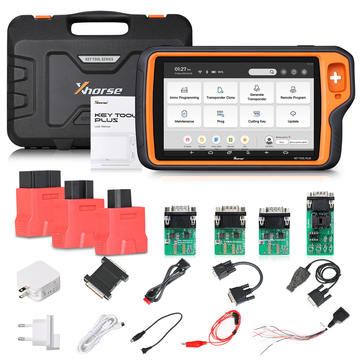

    Xhorse VVDI Key Tool Plus Package List

    Shipping Method and Delivery Time:

    US, UK, Czech and Russia Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.
    US Check: Ship from US
    UK Check: Ship from UK
    EU Check: Ship from Czech
    Russia Check: Ship from RU
    DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. If address belongs to remote area, customer will need to pay remote handling cost or we can change to ship by EMS. Please remember to leave message if you have any special requirement.
    Yanwen Express: 7-10 working days. No Tax or remote cost for European Countries.
    Standard Post: 7-15 working days. To South America and Africa countries it may take 20-25 working days. Customers can tick Express Shipping Service to ship by DHL.
