Original Autel MaxiIM IM608 Advanced Diagnose + IMMO + Key Programming Tool

Original Autel MaxiIM IM608 All-In-0ne Advanced Diagnose + IMMO + Key Programming Tool

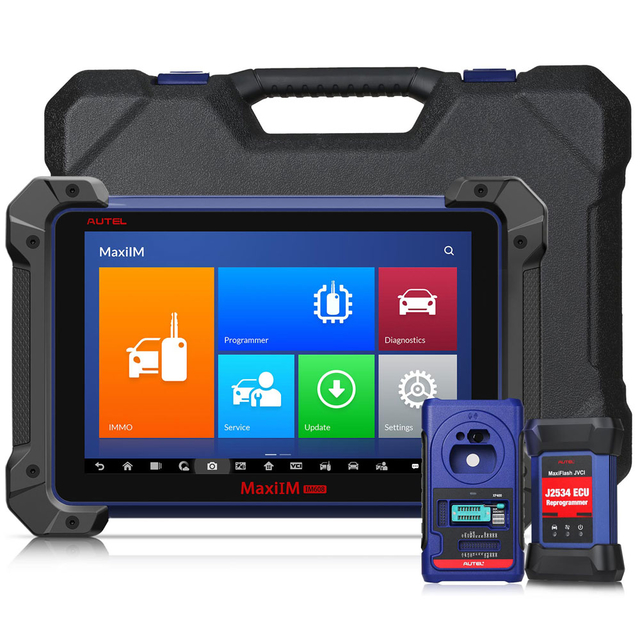

Autel MaxiIM IM608 is the most advanced and the unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM608 provides you with all special functions. It is the unprecedented key programming and diagnostic tool that you ever wanted.

Autel MaxiIM IM608 Highlights:

1. Multi-Language for both Diagnosis and IMMO Menu:
English, French, German, Spanish, Portuguese, Italian, Dutch, Polish, Swedish, Korean, Japanese, Russian and Traditional Chinese
2. Global Version: NO IP Blocking Problem,Can Be Used Worldwide
3. One Year Free Update Online (After One Year, Update Cost 1000USD/Year)

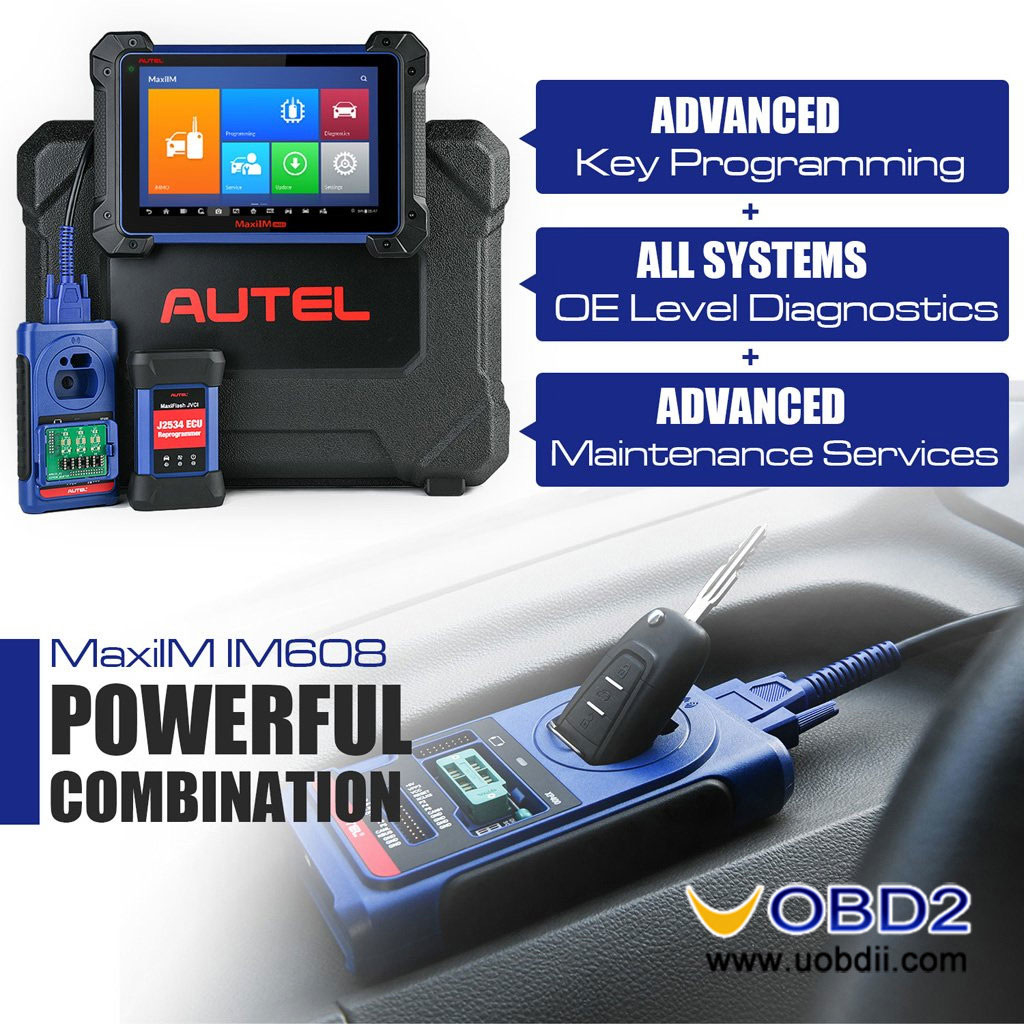

4. All-IN-ONE: Powerful Combination of Advanced Key Programming/ All System Diagnostics (Same as as MaxiSYS MS908)/ Advanced Maintenance Services
5. Professional Key Programming Equipped with XP400 and MaxiFlash JVCI for ECU Coding
6. Pass-Through System, In-depth diagnosis of all vehicle modules and Programming of modules and components of the vehicle
7. Wide Vechicle Coverage: Support more than 80 US, Asian and European makes and models

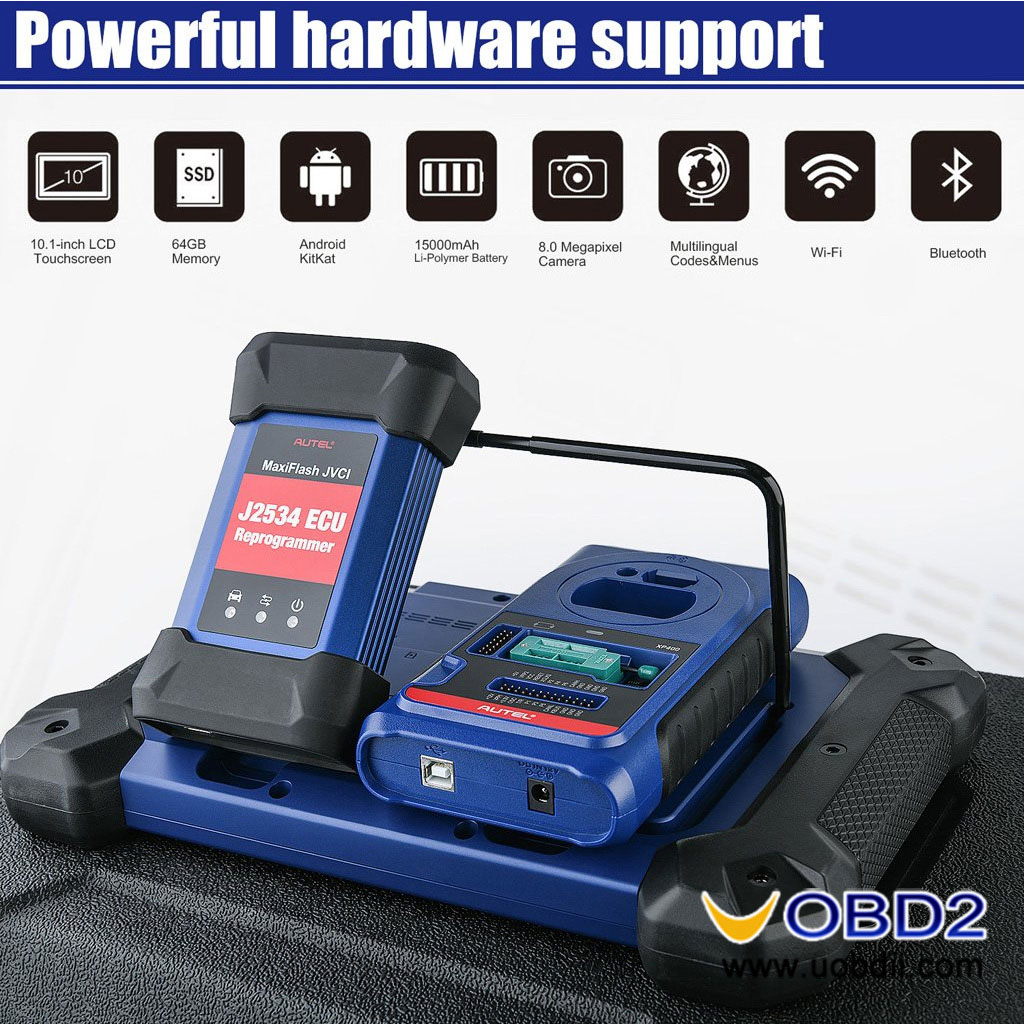

8. Powerful Hardware: Cortex A7+A15 six-core processor,10.1-inch LED capacitive touch screen with 1920x1200 Android Tablet


Autel MaxiIM IM608 Functions:

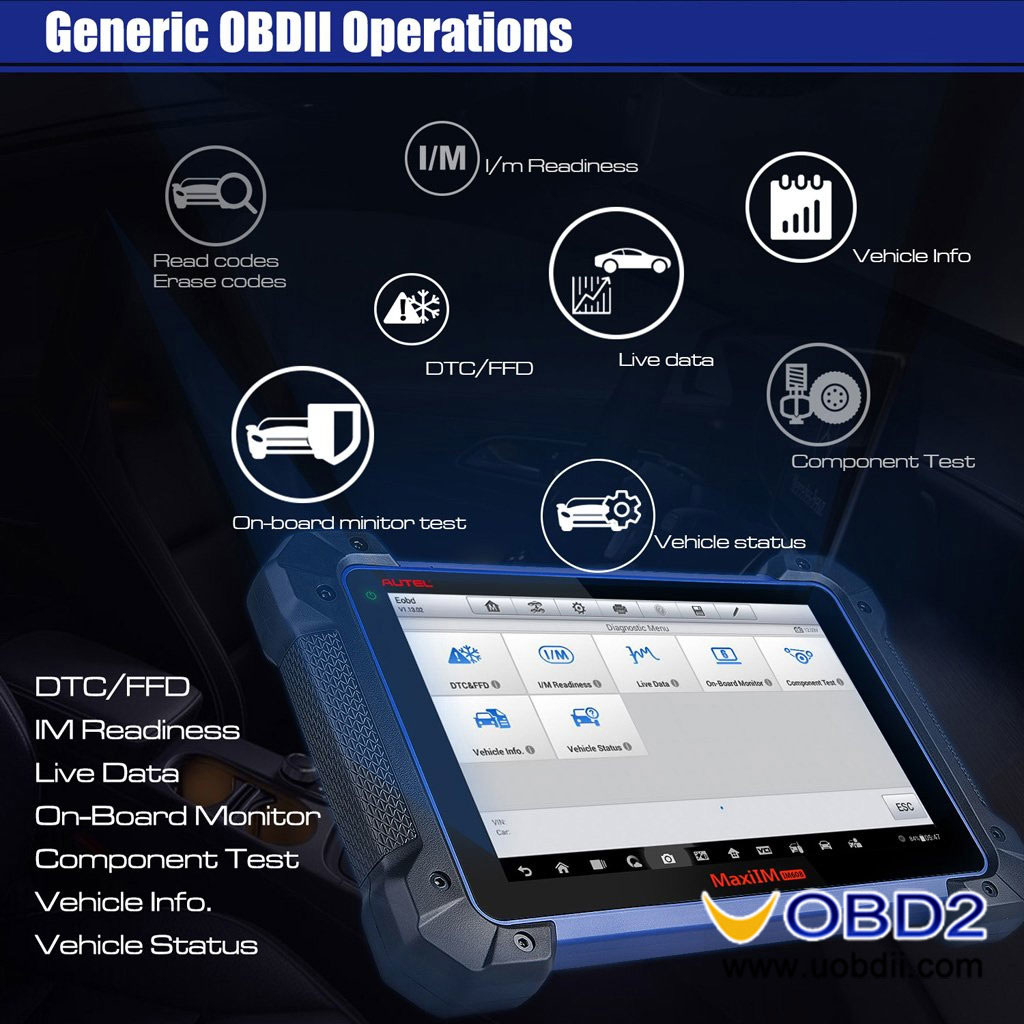

1. OE-Level All Systems Diagnositcs

Connect the IM608 tablet to the vehicle via the OtoFlash (VCI) to perform extensive diagnostic and service functions.
?All System Diagnostics
?Auto Search / VIN Finding
?Reading / Deleting Error Code
?Viewing the Live Data Stream
?View Records of Failure History
?Store and Data Management Applications

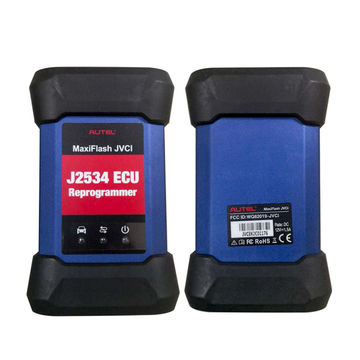

?MaxiFlash JVCI ECU Programmer (Bluetooth / USB Cable)

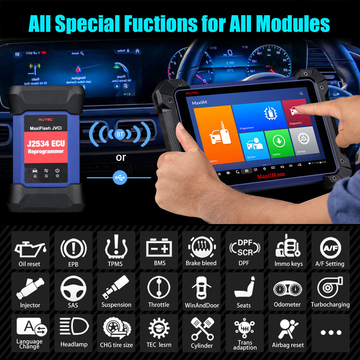

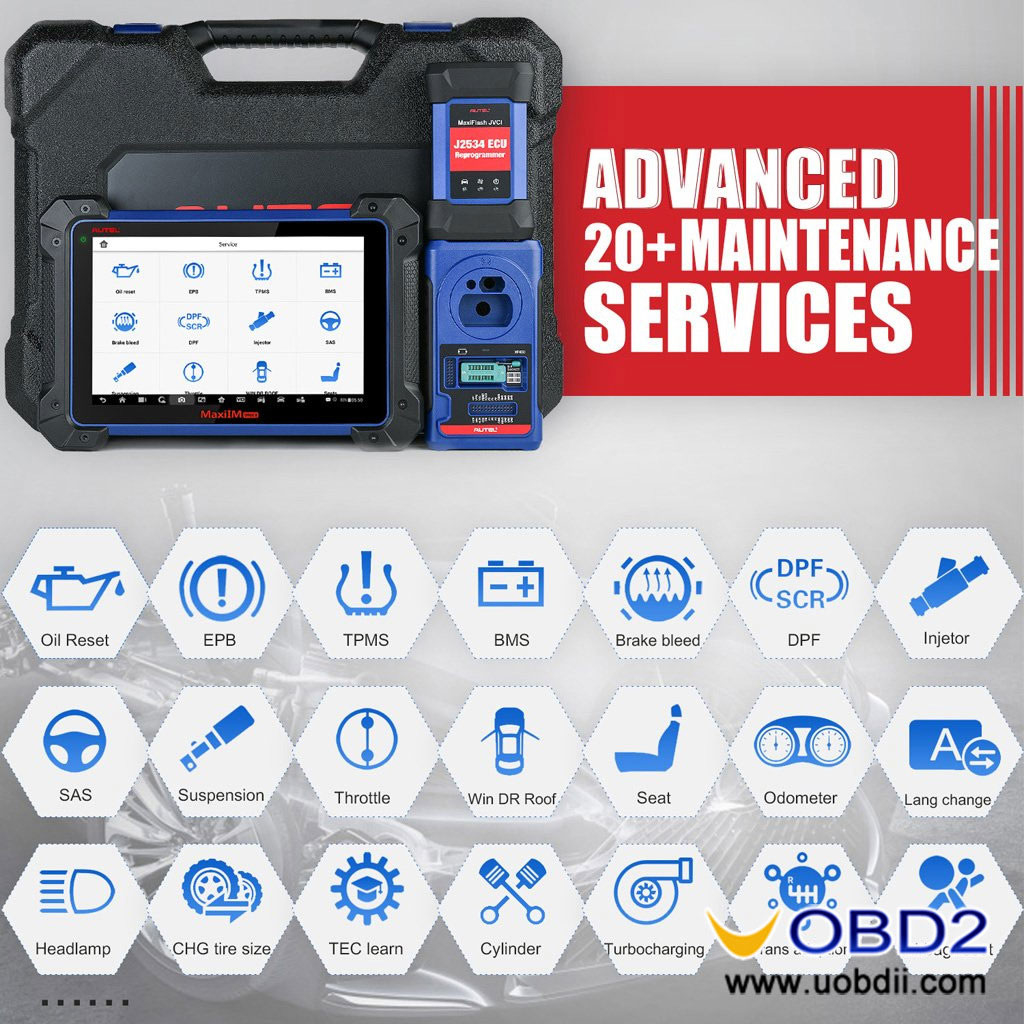

2. All Special Functions, EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID Re-Programming etc.


3. Access Live Data | Data from the ECU/Modulesnsors displayed in real-time (Oxygen sensor-rich/lean etc)
4. Actuation/Component Testing | Actuate (switch on/off) to diagnose functionality (relays, fans, locks etc)

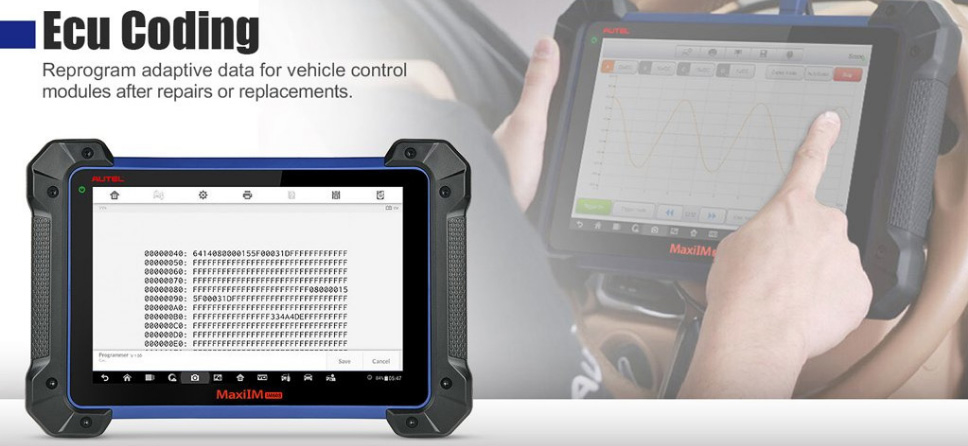

5. Coding Functions | Allows you to change vehicle parts that need to be "coded" (Injectors, ABS, starters etc)



6. Flashing/ Reprogramming | Advanced updating/coding of ECU's online through a J2534 pass-through flashing device

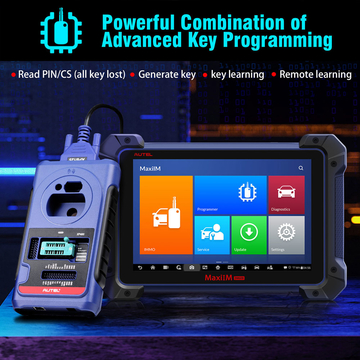

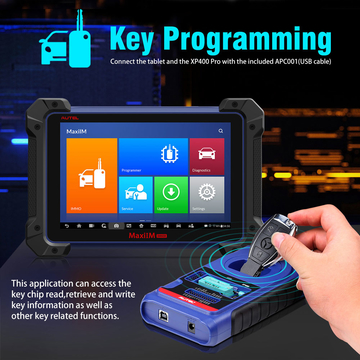

7. Advanced Key Programming | IMMO functions, Transponder read/write/identify, MCU/EEPROM chip read/write

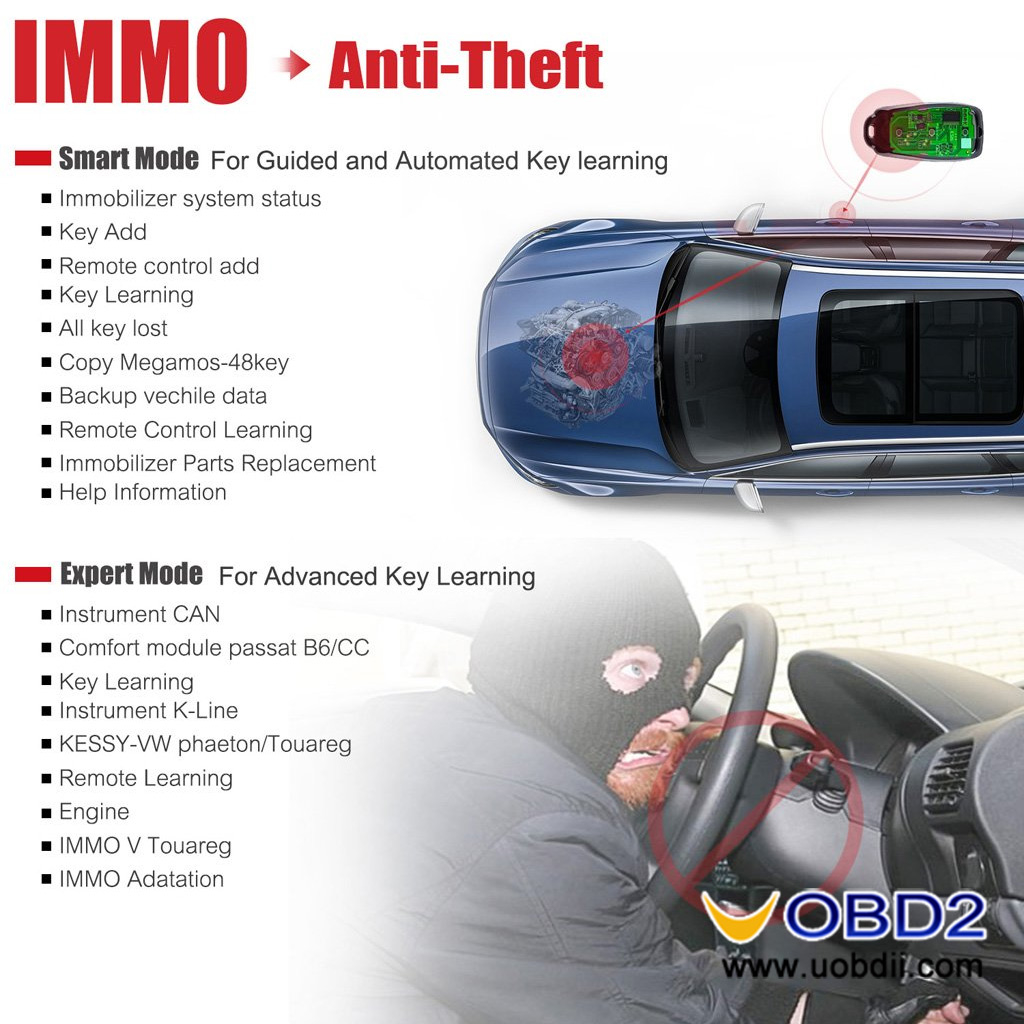

Connect the IM608 tablet to the vehicle (via the Bluetooth VCI or Main Cable) and to the XP400 (via USB cable) to access IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc. The software provides two methods to access IMMO functions
1. Smart Mode – for Guided and Automated Key Learning - step by step through a series of functions.
2. Expert Mode – for Advanced Key Learning - select a specific function.

1). PIN / CS Reading (Full Lost)
2). Key Generation
3). Key Programming
4). Command Introduction
5). Backup / Repair IMMO Data
6). IMMO ECU Brain Reset / Adaptation
7). IMMO ECU Brain Reset / Coding
8). BENZ 3rd Generation IMMO Key Splicing, Full Lost, Key Programming
9). BMW FEM / BDC Key Programming and ECU Adaptation
10). BMW CAS4 / 3/2 Key Programming
11). VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Splicing, Full Lost, A6 Full Lost and More ...

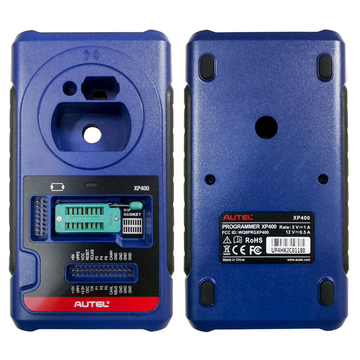

XP400 Key & Chip Programmer Introduction:

Connect the IM608 tablet to the XP400 Key Programmer (no vehicle connection required) to access the key chip, read, retrieve and write key information, as well as other key related functions. The XP400 includes 12 ports:

1. DC Port – provides 12V DC power supply.
2. USB Port – provides data communication and 5V DC power supply.
3. DB 26-Pin Port – connects with the Mercedes Benz infrared cable, vehicle key cable, ECU cable, MCU cable, MC9S12 cable.
4. Cross Signal Pins – holds the MCU board, MCU spare cable or DIY signal interface.
5. IC Card Induction Area
6. Vehicle Key Slot – holds the vehicle key.
7. Transponder Slot – holds the transponder.
8. Remote Control Transponder Induction Area Figure 2-5 XP400 Views 11
9. Mercedes Infrared Key Slot – holds the Mercedes infrared key.
10. Status LED – indicates the current operating status.
11. Locker – locks the EEPROM component transponder slot to ensure proper functioning.
12. EEPROM Component Transponder Slot – holds the EEPROM plug-in transponder or EEPROM socket.


XP400 Key & Chip Programmer Function List:

Support PC
MCU / EEPROM Chips Read / Write
ECU Read / Write
MC9S12 Encryption Chip Read / Write
Key Read / Write
Mercedes Infrared Key Read / Write
Remote Frequency Detect
IC Card Read/Write

Important Notice about XP400 Connection:



Autel MaxiIM IM608 IMMO Vehicle List:

Audi:
A1,A3,A4,A5,A6,RS4,B6,B7,RS5,RS6,A4 Allroad,A8,S8,Q3,RSQ3,Q5,Q7,R8,TT,

Seat:
Alhambra, Altea, Altea, Cordoba, CupraLeon, Exeo, Ibiza, Leon, Mii,Toledo

Skoda:
Citigo,Fabia India,Fabia,Kamiq,Karoq,Octavia,Rapid India,Rapid,Roomster,Superb,Yeti

VW:
Amarok,Arteon,Atlas,Beetle,Bora, BoraGli, Caddy, Crafter, EOS, Fox Africa, Fox EU, Fox, GTI, Gol County, Gol(5U), Gol(5W), Golf PLUS, Golf/ Rabbit(1K), Golf6 ESTATE, Jetta, Parati, Passat, Phaeton, Polo, Scirocco, Sharan, Suran, T-Roc, Tiguan, Touareg, Touran, Transporter5/ Multivan, up, UP!/cross UP!

Fiat:
500,500L, 500X prox, Albea, Boxer, Daily, Doblo, Doblo New, Ducato, Egea, Fiorino, Freemont, Idea, Grande punto, Jumper, Linea, Marea, Nemo, Ottimo, Palio, Palio RST, Panda, Perla, Promaster, Punto, Sinea, Stilo, Viaggio

How to Update Autel MaxiIM IM608 Software:

Autel IM608 Update application allows you to download the latest released software.
The updates can improve the MaxiIM applications’ capabilities, typically by adding new tests, new models, or enhanced applications to the database. The Display Tablet automatically searches for available updates for all of the MaxiIM software when it is connected to the internet. Any updates that are found can be downloaded and installed on the device. This section describes installing an update to the MaxiIM System. A notification message displays if an update is available when the Notifications Center function is enabled in the Settings application.

1. Make sure the Display Tablet is connected to a power source with stable access to the internet.
2. Tap the Update application button from the MaxiIM Job Menu; or tap the update notification message when received one; or tap the Update icon on Vehicle Menu in Diagnostics application. The Update application screen displays.
3. Check all available updates:
--If you decide to update all the items of IMMO software, select IMMO Tab and then tap the Update All button; if you want to update all items of diagnostic software, select Diagnose Tab and then tap the Update All button.
-- If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s).
4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume from the break point.
5. When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.

Autel IM608 Software Update Information:

1, Volkswagen/ Audi Software Upgrad to V4.10
Support MQB All Models Blade Key All Key Lost via OBD

2. Volkswagen/ Audi Software Upgrad to V4.25
1) MQB All Key Lost Via OBD
* Support All MQB models with Megamos AES key
* All key lost: 30USD per vehicle
2) Applicable to all Autel IM products including IM608/ IM508/ Maxisys IM +XP200/ XP400/ XP400 Pro

3. GM Software Updated to V2.90
1) All Key Lost via OBD
* Support all models up to 2020, smart & Blade keys
* APPLICABLE TO ALL AUTEL IM PRODUCTS, INCLUDING IM608. IM508 AND MAXISYS IM
2) Support Models:
* CHEVROLET SILVERADO
* CHEVROLET CAMARO
* GMC SIERRA
* CHEVROLET EQUINOX
* CHEVROLET TRAVERSE
* CADILLAC XT5
* CHEVROLET CRUZE
* CHEVROLET TAHOE

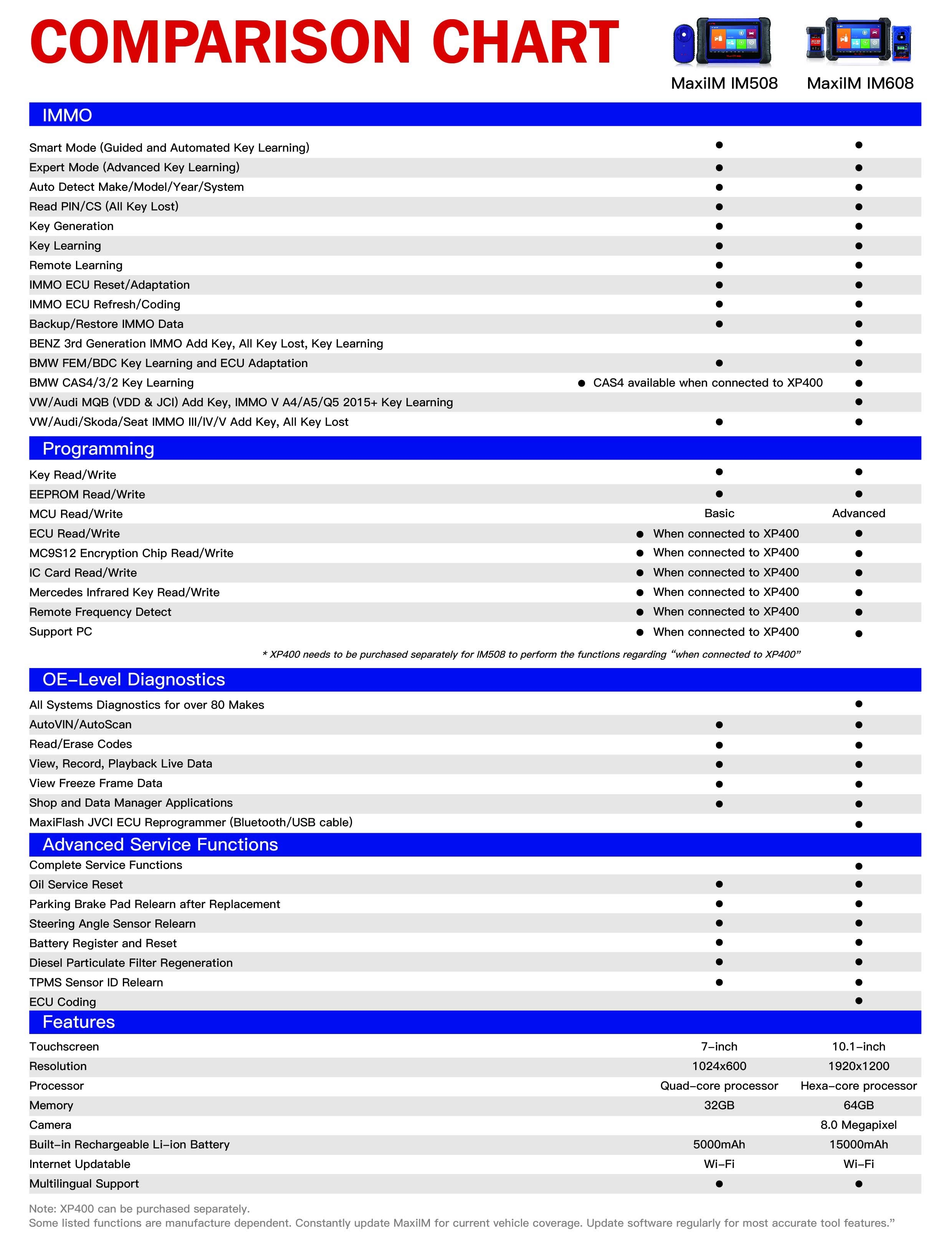

Autel MaxiIM IM608 vs. IM508 Comparison Chart:

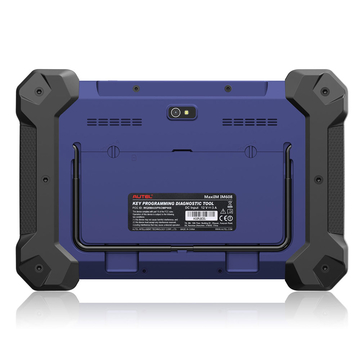

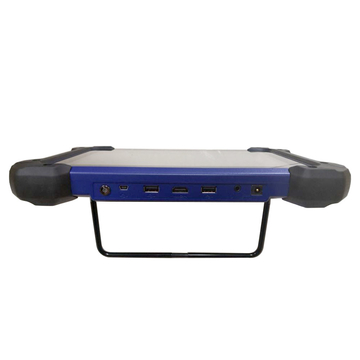

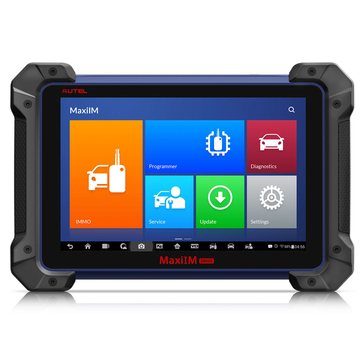

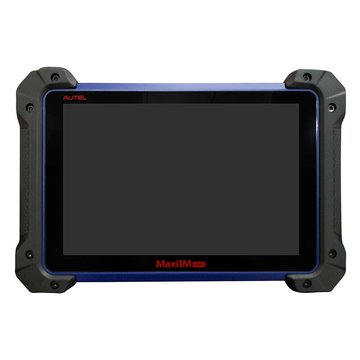

Autel MaxiIM IM608 Main Unit Overviews:



1.10.1-inch LCD Capacitve Touchscreen
2.Ambient Light Sensor-detects ambient brightness.
3.Power LED-indicates battery level & charging or system status.
4.Microphone
5.Collapsible Stand-extends from the back to allow hands-free viewing of the Display Tablet
6.Built-in Bttery
7.Loudspeaker
8.Camera Lens
9.Camera Flash
10.DC Power Supply Input Port
11.Headphone Jack
12.USB Port
13.HDMI (high-definition multimedia interface) Port
14.USB Port
15.Mini USB Port
16.Lock/Power Button-turns the evice on & off with long press,or locks the screen with short press.

Autel MaxiIM IM608 Specifications:

Operation System	Android 4.4.2,KitKat
Processor	Samsung Exynos hex-core Processor(1.3GHz Quad-core ARM Cortex-A7+1.7GHz Dual-core ARM Cortex-A15)
Memory	2GB RAM & 64 GB On-board Menory
Display	10.1-inch LED capacitive touch screen with 1920*1200 resolution Wi-Fi(802.11 a/b/g/n/ac) USB 2.0
Connectivity	BT v.2.1+EDR SD Card (Support up to 32GB) HDMI
Camera(rear)	8.0 Megapixel,AF with Flashlight
Sensors	Gravity Accelerometer,Ambient Light Sensor (ALS)
Audio input/output	Microphone Dual Speakers 3-Band 3.5mm stereo/standard headset jack
Power and Battery	Charging via 12V AC/DC power supply with the temperature between 0℃ to 45℃
Input Voltage	12V (9-24V)
Power Consumption	6.5W
Operating Temp	0℃ to 50℃ (32 to 122℉)
Storage Temp	-20℃ to 60℃ (-4 to 140℉)

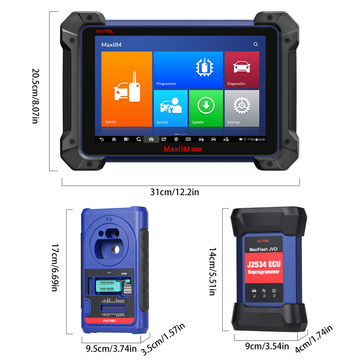

Dimensions(W*H*D)	300mm(11.81")x220.0mm(8.66")x50.0mm(1.97")
Weight	NW:1.42kg(3.13lb.) GW:8.655kg(19.08lb)
Protocols:	ISO9141-2,ISO14230-2,ISO15765-4,K/L-line,Flashing code,SAE-J1850 VPW,SAE-J1850PWN,CAN ISO11898,Highspeed,Middlespeed,Lowspeed and Singlewire CAN,GM,GM UART,UART Echo Byte Protocol,Honda Diag-H Protocol,TP2.0,TP1.6SAE J1939,SAE J1708,Fault-Tolerant CAN

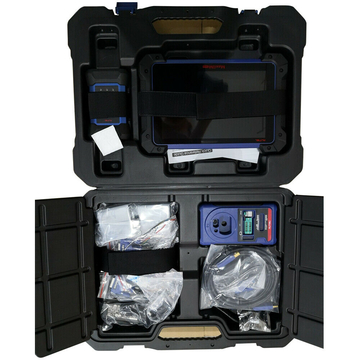

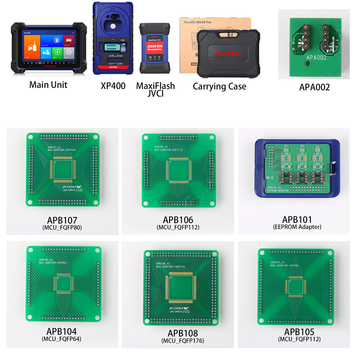

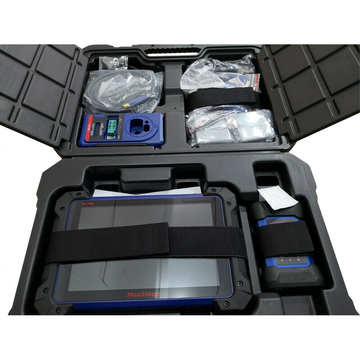

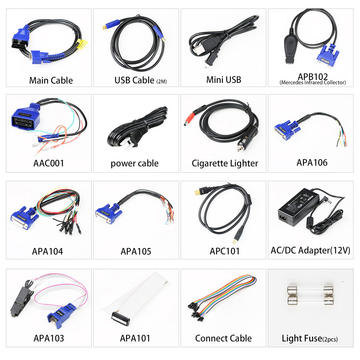

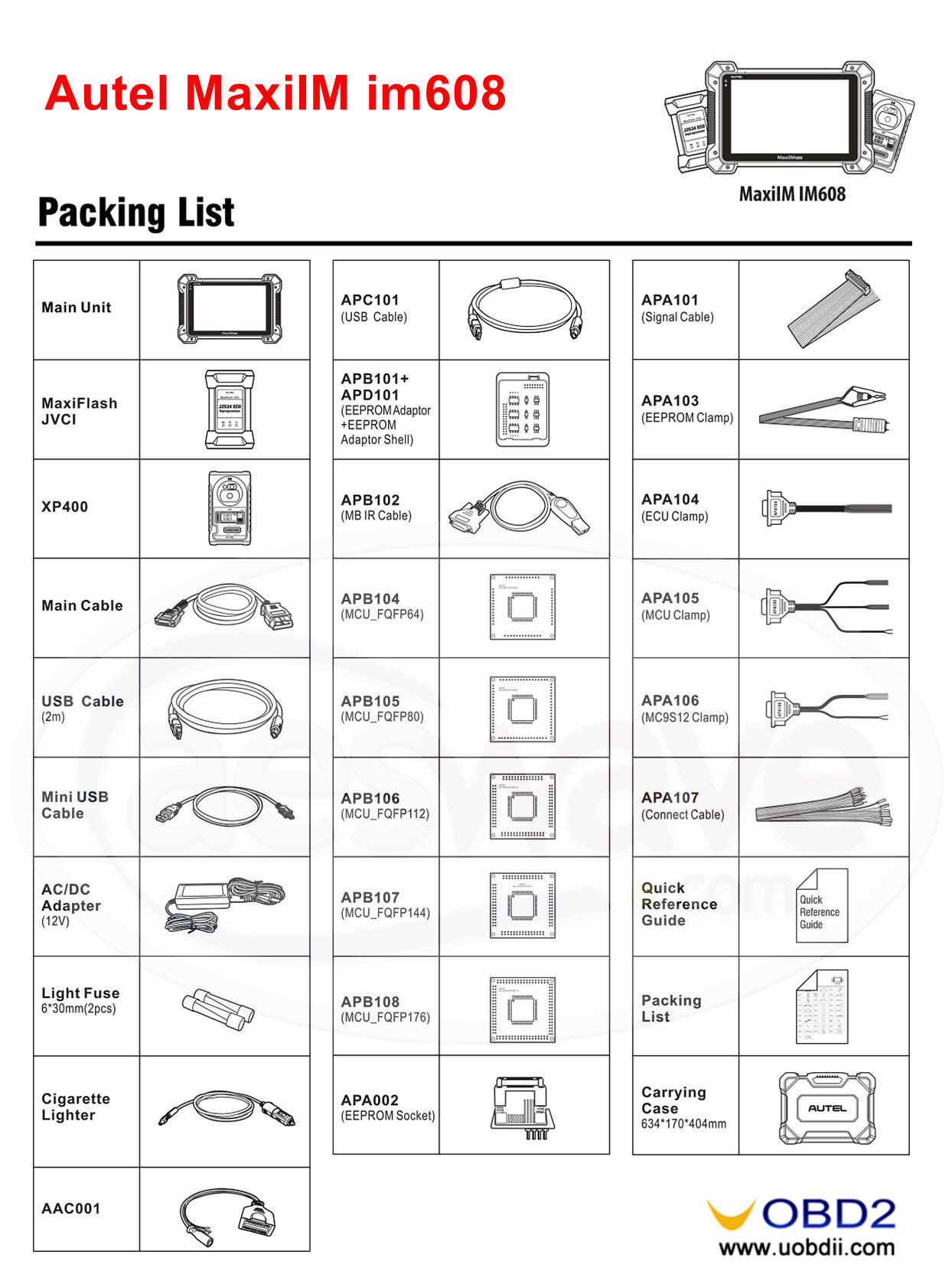

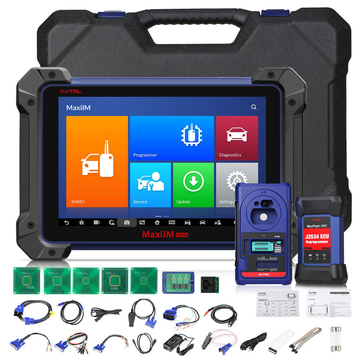

Autel MaxiIM IM608 Packing List:

1x Autel MaxiIM IM608 Main Unit
1x APC101 USB Cable
1x APA101 Signal Cable
1x MaxiFlash JVCI
1x APB101+APD101(EEPROM Adaptor+EEPROM Adapter Shell)
1x APA103(EEPROM Clamp)
1x XP400
1x APB102 MB IR Cable
1x APA104 ECU Clamp
1x Main Cable
1x APB104(MCU_FQFP64)
1x APA105(MCU Clamp)
1x USB Cable (2m)
1x APB105 MCU_FQFP80
1x APA106(MC9S12 Clamp)
1x Mini USB Cable
1x APB106(MCU_FQFP144)
1x APA107(Connect Cable)
1x AC/DC 12V Adapter
1x APB107(MCU_FQFP144)
1x Quick Reference Guide
2x Light Fuse 6*30mm
1x APB108(MCU_FQFP176)
1x Packing List
1x Cigarette Lighter
1x APA002(EEPROM Socket)

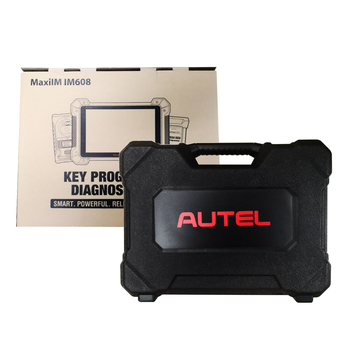

1x Carrying Case 634*170*404mm
1x AAC001
