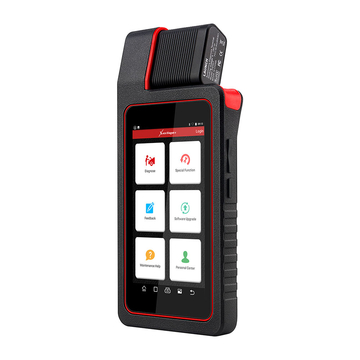

Launch X431 Diagun V Full System Scan Tool with 1 Year Free Update Online
Launch X431 Diagun V Full System Scan Tool with 1 Year Free Update Online
1%
OFF

Launch X431 Diagun V Full System Scan Tool with 1 Year Free Update Online

 0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.SP300C

{{detail_data.prodInfo.name}}

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
3$ off 50$ , Code:
BOWSHINE3
$   679
$ 689 save $ 10
0Reviews
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 679 $ 689 save $ 10
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
Returns:
Read details
Add to Wish list
  • Description
    • LAUNCH X431 DIAGUN V Bi-Directional Full System Scan Tool with 1 Year Free Update

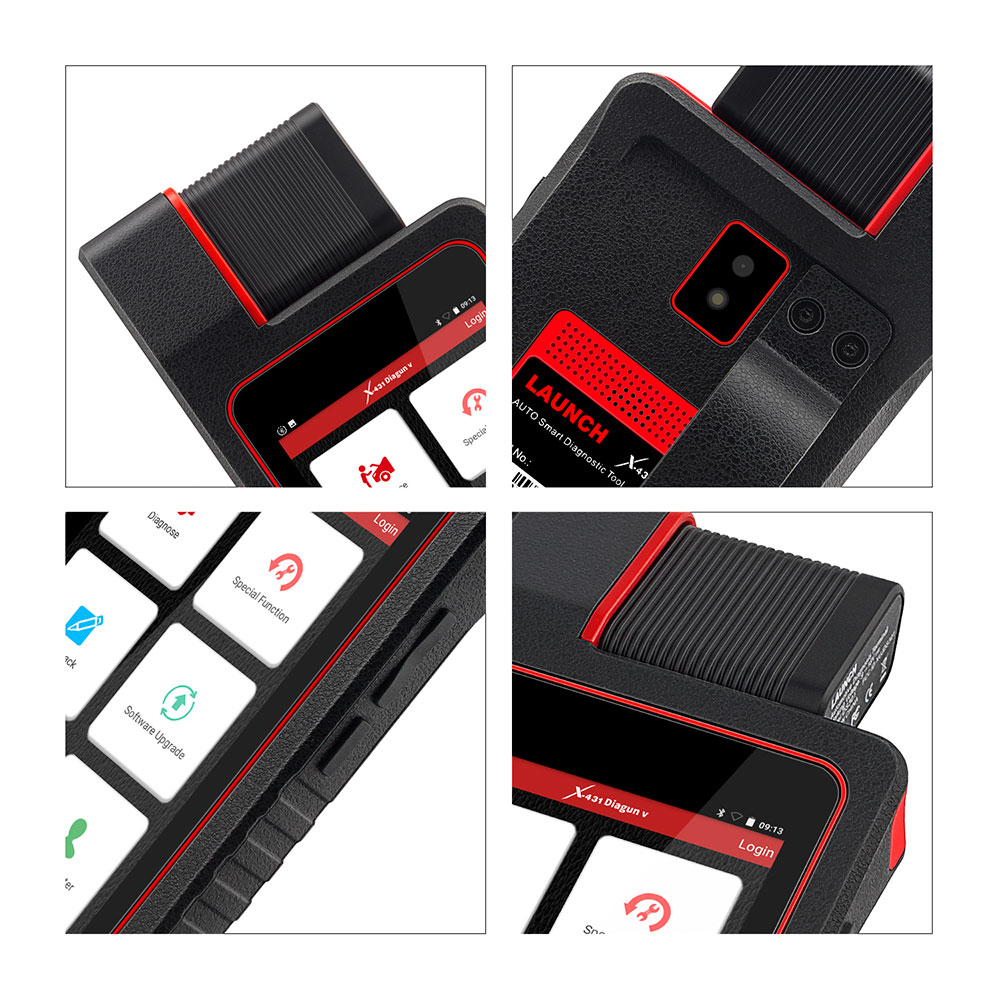

    Highlights:

    1. Free Update Online for 1 Year
    2. Upgrade Version of DIagun IV
    3. 32GB large storage for smoother operation
    4. The connector can be inserted into the host, which is easy to use, and not easy to lose.
    5. Both the front and back of the connector can be inserted into TYPE C interface, making operations more convenient and charging more stable.
    6. One-click Smart Upgrade: Support online one-click smart upgrade for car software. To enjoy better functions and upgrade services, upgrade software aperiodically.
    7.Wide Vehicle Coverage:
    Support all ECUs of 12V EFI car models, covering ten thousands of car models such as Maserati, Ferrari, Rolls-Royce, Bentley, Benz, BMW, Audi. Support fault detection for most Asian, European, American, and domestic car ECUs, to realize full car model and system fault diagnosis.

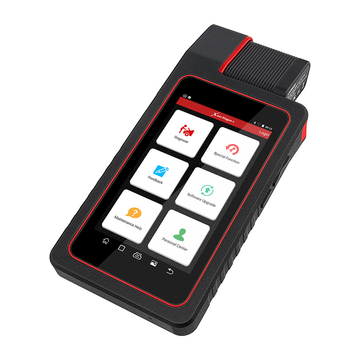

    What is Launch X431 Diagun V ?

    Launch X-431 Diagun V is a cost-effective product independently developed by Launch. It inherits many advantages of X-431 Diagun IV, such as wide coverage of car models, powerful diagnostic functions, and accurate test data. It supports the diagnostic functions including Read DTCs, Clear DTCs, Read Data Streams, Actuation Test, Special Functions, Coding, and Matching, realizing full car model and system fault diagnosis.

    Launch X431 Diagun V Full System Scan Tool with 1 Year Free Update Online

    Launch X431 Diagun V Functions:

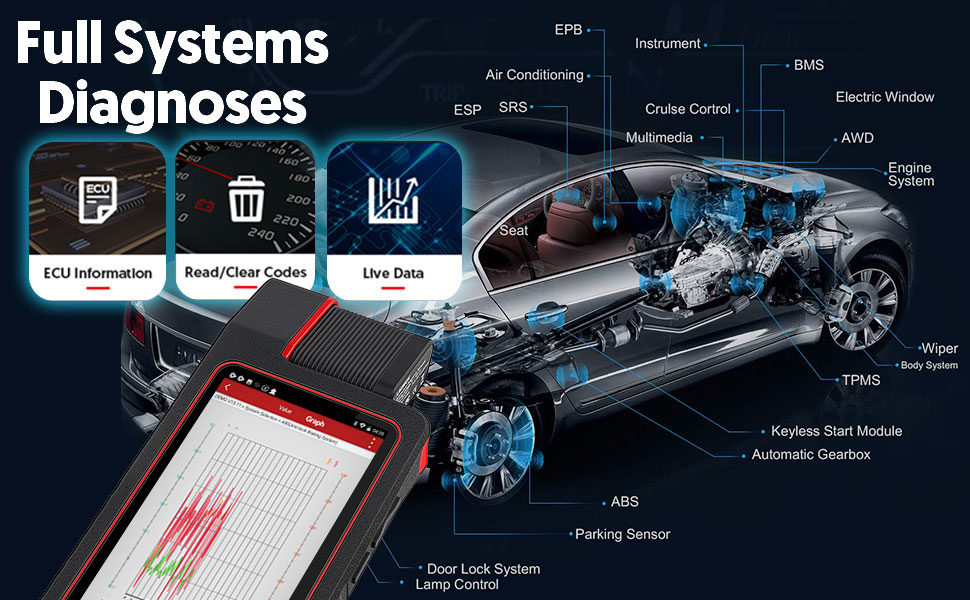

    1. Full System Diagnostic Function – Precise Diagnosis
    Launch's over 20-year car diagnosis technology and experience help develop original factory devices for most domestic brand car factories, enabling the product functions (such as Read DTCs, Read Data Streams, Actuation Test) to reach the level of original factories.

    Launch X431 Diagun V Full System Scan Tool with 1 Year Free Update Online

    2. Diagnostic Function – Data Stream and Waveform Recoding and Playback
    Data stream and waveform recoding and playback can analyze the faults that only reoccur during driving and can quickly rectify car faults.

    3. One-click Feedback of Diagnostic Problems
    If the car model or a function is abnormal during use, you can provide the fault information to Launch through diagnostic feedback, and then a specialized technician will track and deal with the fault.

    4. Massive Maintenance Help Materials
    Provide a large number of detailed operation skills, maintenance materials, maintenance cases, training videos, and product manuals to help maintenance technicians quickly rectify faults and improve the diagnostic efficiency.

    5. Personal Center
    Personal Center includes My Report, My Connector, Firmware Fix, Diagnostic Feedback, Personal Information, Change Password, Settings and so on.

    6. Many Special Functions
    Support 11 common special functions including service lamp reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, immobilizer matching, ABS bleeding, battery matching, gear learning, injector coding, and DPF regeneration.

    Launch X431 Diagun V Full System Scan Tool with 1 Year Free Update Online

    Attachment: Comparison of New and Old Product Device Parameter

    Product

    X-431 Diagun IV

    X-431 Diagun V

    System

    Android 7.0

    Android 7.0

    Screen Size

    5.5-inch HD 720*1280

    5.5-inch HD 720*1280

    Resolution

    720*1280

    720*1280

    Processor

    Quad-core 1.1GHz

    Quad-core 1.3GHZ

    Memory

    1G

    2G

    Storage

    16GB

    32GB

    2500mAh

    4680mAH

    Camera

    Front 2 million, rear 8 million

    Rear 5 million

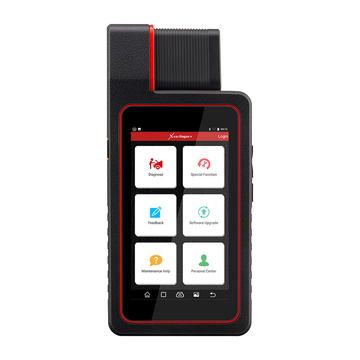

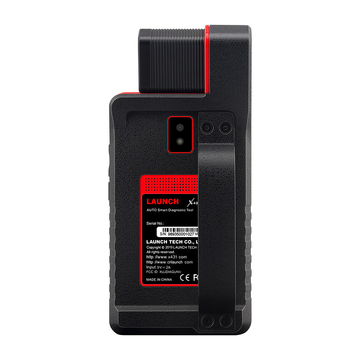

    X431 Diagun V Host Parameters

    Operating system: Android 7.0
    CPU: 1.3GHz Quad-core
    Display screen: 5.5-inch HD 720X1280
    Memory: 2G
    Storage: 32GB
    Battery: 4680mAh
    Camera: rear 5 mp

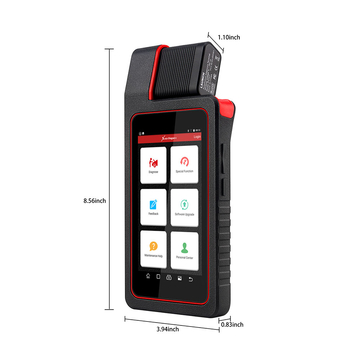

    Dimension: 218.4 x 100 x 36.7mm (length x width x height)
    Working temperature: 0℃～50℃
    Launch X431 Diagun V Full System Scan Tool with 1 Year Free Update Online

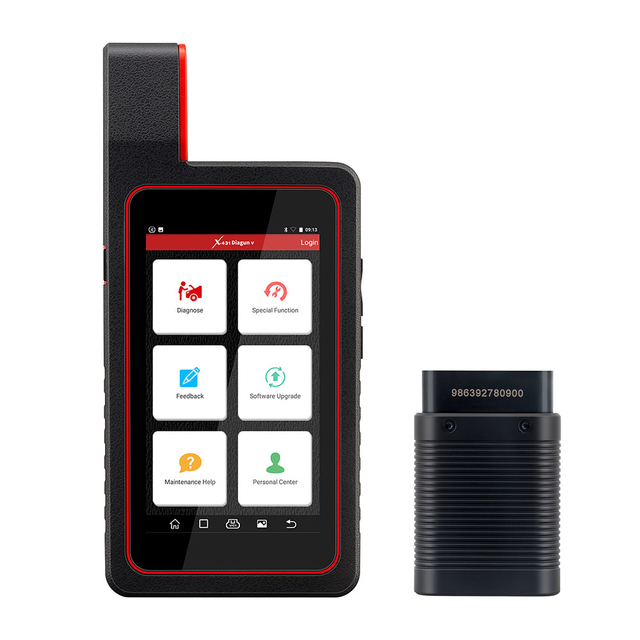

    DBScarIV Connector Parameters

    X-431 Diagun V adopts a DBScarIV diagnostic connector with small size and high stability. The connector can be inserted into the host and is easy to use. The same connector is used for diagnosis and matching. The connector supports fault tolerance CAN diagnosis. Detailed parameters are as follows:
    Dimension: 58×47×24 mm (without plug)
    Working voltage: 9V DC--18V DC
    Test voltage: DC12V
    Typical power consumption ≤2W
    Diagnostic mode: Bluetooth
    Working temperature: 0℃～50℃
    Indicator lamp (red): turns red when connected to power supply.
    Indicator lamp (blue): turns blue in wireless Bluetooth mode.

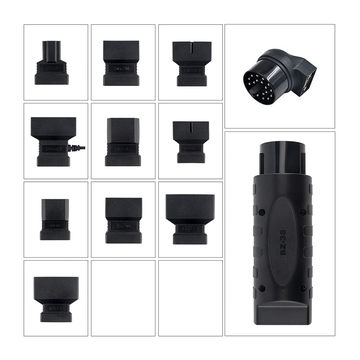

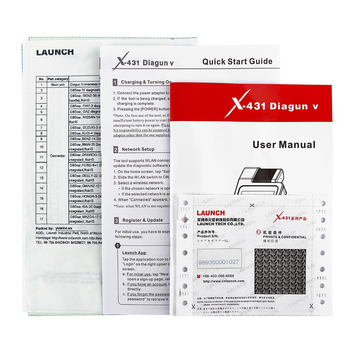

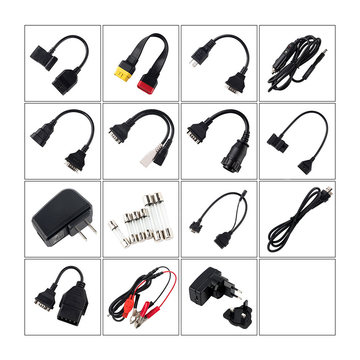

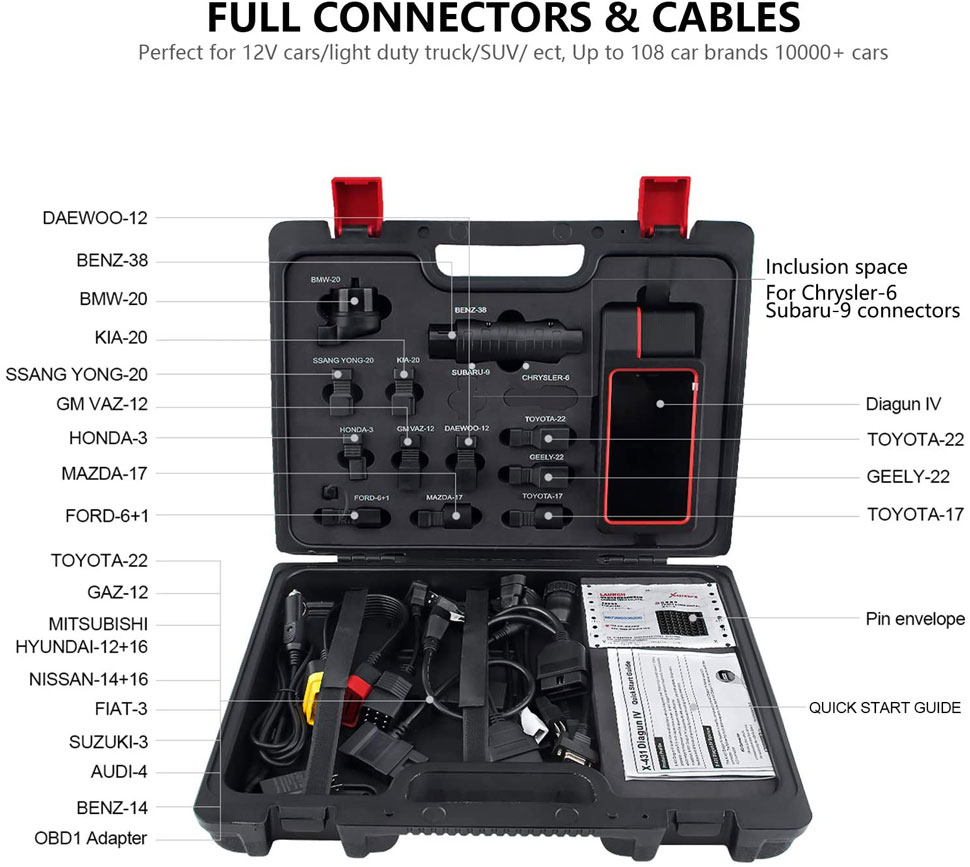

    Launch X431 Diagun V Package:

    Launch X431 Diagun V Full System Scan Tool with 1 Year Free Update Online

    Shipping Method and Delivery Time:

    US, UK, Czech and Russia Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.
    US Check: Ship from US
    UK Check: Ship from UK
    EU Check: Ship from Czech
    Russia Check: Ship from RU
    DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. If address belongs to remote area, customer will need to pay remote handling cost or we can change to ship by EMS. Please remember to leave message if you have any special requirement.
    Yanwen Express: 7-10 working days. No Tax or remote cost for European Countries.
    Standard Post: 7-15 working days. To South America and Africa countries it may take 20-25 working days. Customers can tick Express Shipping Service to ship by DHL.
