  • Description
  • Autel XP400 Key and Chip Programmer Work with Autel MaxiIM IM608/IM508

    Why Do you Need Autel XP400?

    1. If your original XP400 for IM608/IM600 is broken, you can buy to replace the old one.

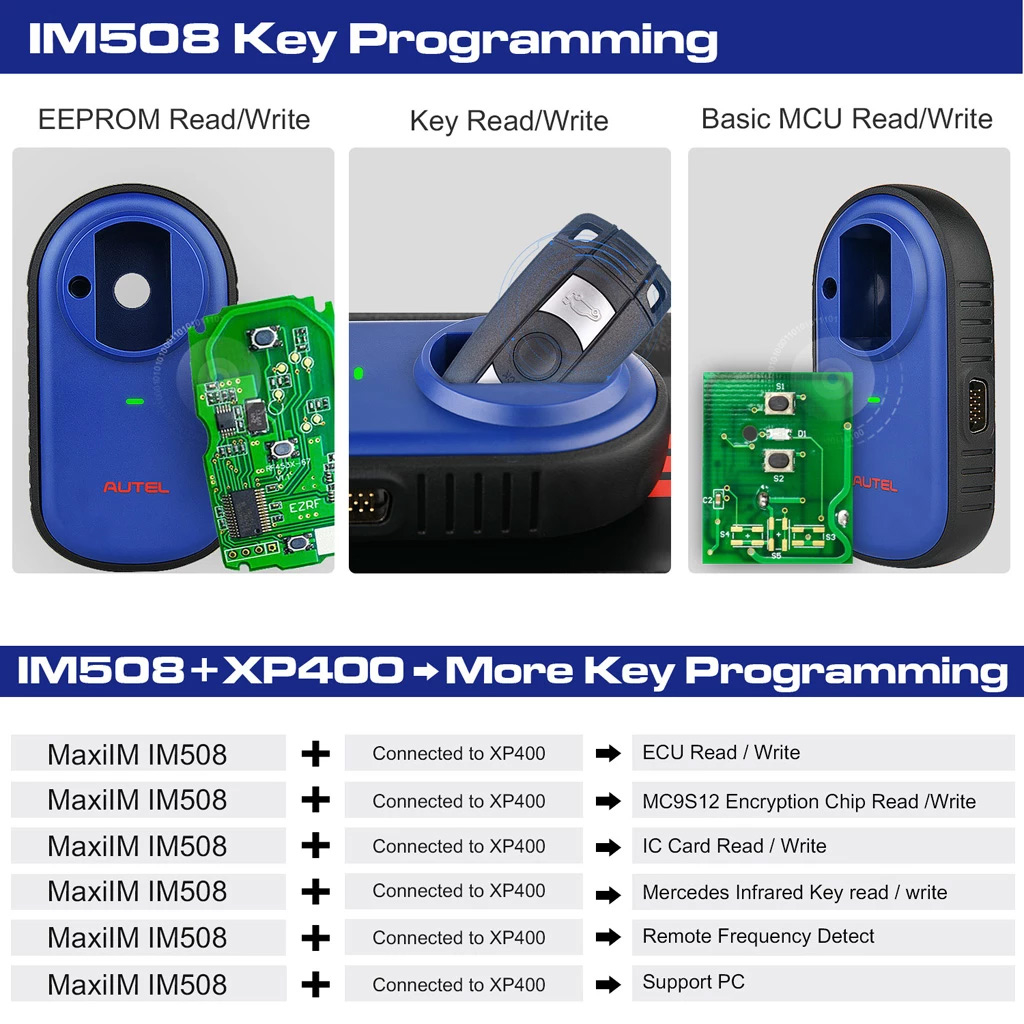

    2. With XP400, You can release more function on IM508:

    If you have a MaxiIM IM508 or Otosys IM100, you can buy XP400 to do advanced IMMO reprogramming like IM608 / IM600
    Detailed functions comparison between XP400 and XP200, please refer to bellow chart.

    Autel XP400

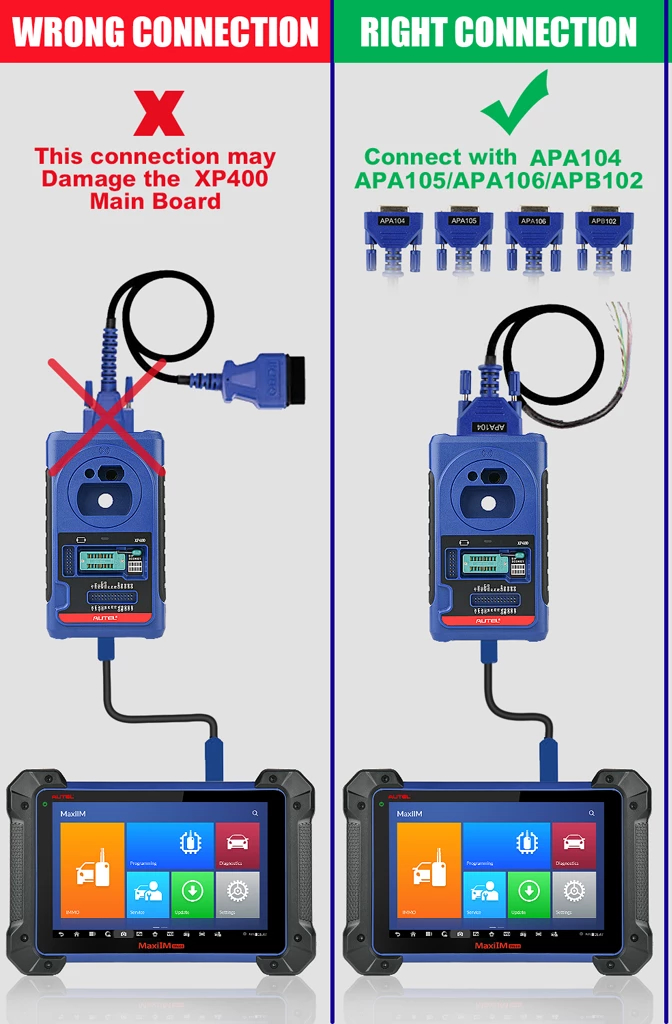

    Important Notice about XP400 Connection:

    Autel XP400

    Autel XP400 KEY & CHIP PROGRAMMER Function List:


    Support PC
    MCU / EEPROM Chips Read / Write
    ECU Read / Write
    MC9S12 Encryption Chip Read / Write
    Key Read / Write
    Mercedes Infrared Key Read / Write
    Remote Frequency Detect
    IC Card Read/Write

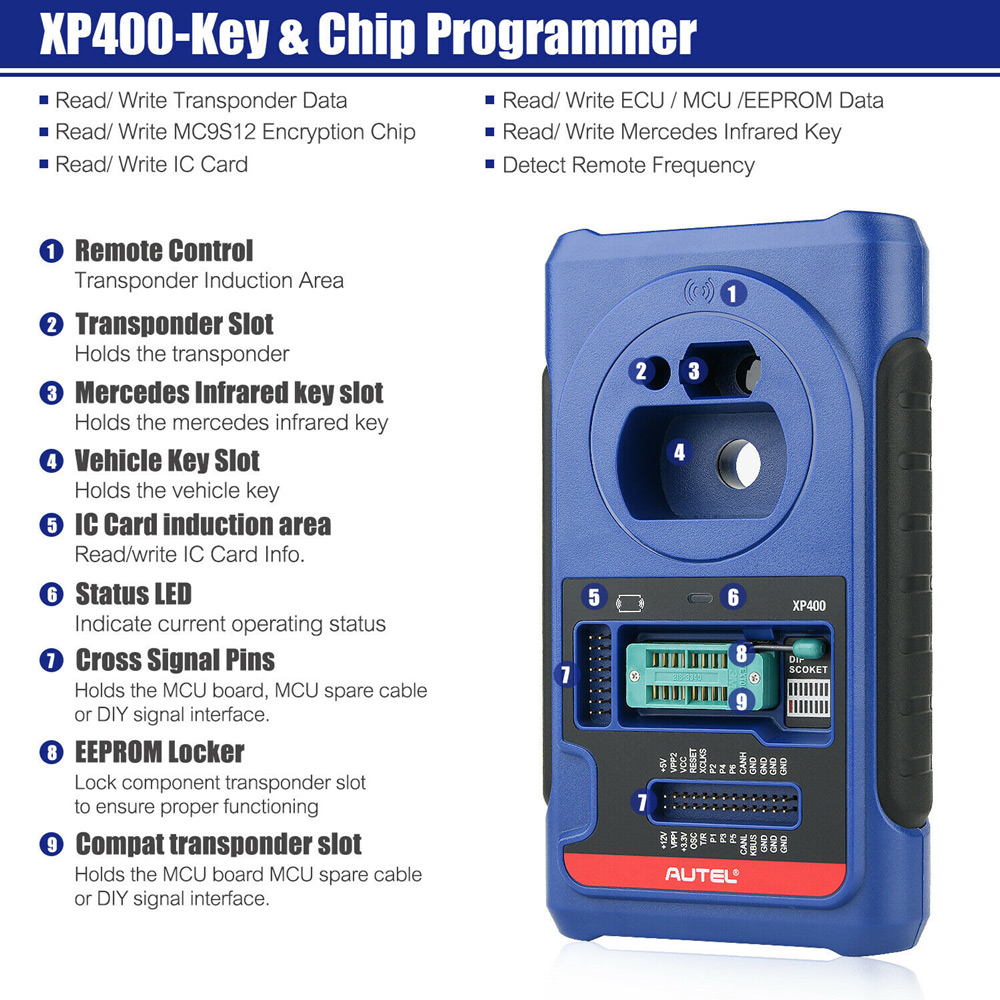

    Autel XP400 KEY & CHIP PROGRAMMER
    Autel XP400 KEY & CHIP PROGRAMMER

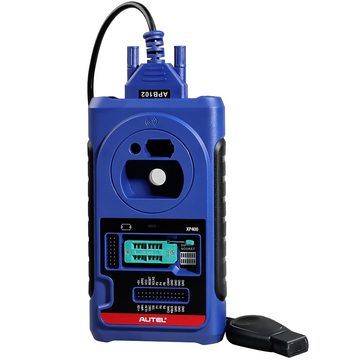

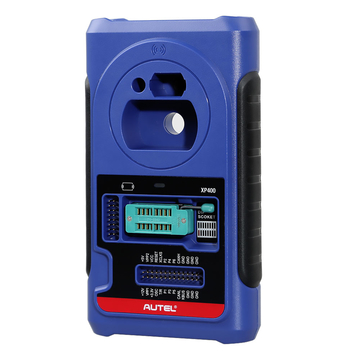

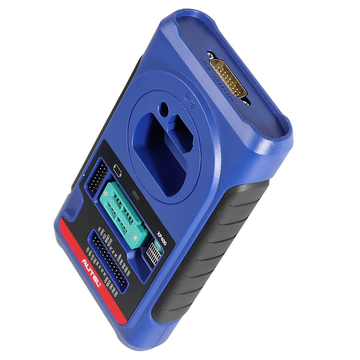

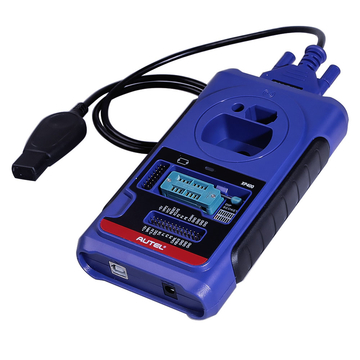

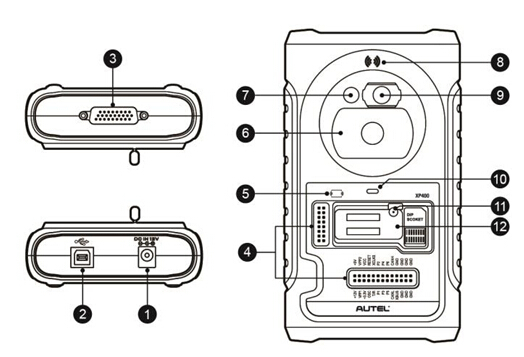

    Autel XP400 KEY & CHIP PROGRAMMER Introduction:

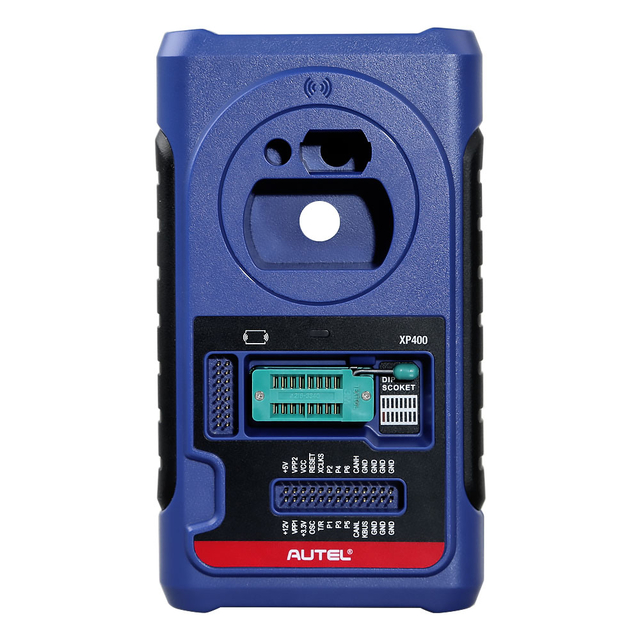

    Connect the IM608 tablet to the XP400 Key Programmer (no vehicle connection required) to access the key chip, read, retrieve and write key information, as well as other key related functions. The XP400 includes 12 ports:



    1. DC Port – provides 12V DC power supply.
    2. USB Port – provides data communication and 5V DC power supply.
    3. DB 26-Pin Port – connects with the Mercedes Benz infrared cable, vehicle key cable, ECU cable, MCU cable, MC9S12 cable.
    4. Cross Signal Pins – holds the MCU board, MCU spare cable or DIY signal interface.
    5. IC Card Induction Area
    6. Vehicle Key Slot – holds the vehicle key.
    7. Transponder Slot – holds the transponder.
    8. Remote Control Transponder Induction Area Figure 2-5 XP400 Views 11
    9. Mercedes Infrared Key Slot – holds the Mercedes infrared key.
    10. Status LED – indicates the current operating status.
    11. Locker – locks the EEPROM component transponder slot to ensure proper functioning.
    12. EEPROM Component Transponder Slot – holds the EEPROM plug-in transponder or EEPROM socket.

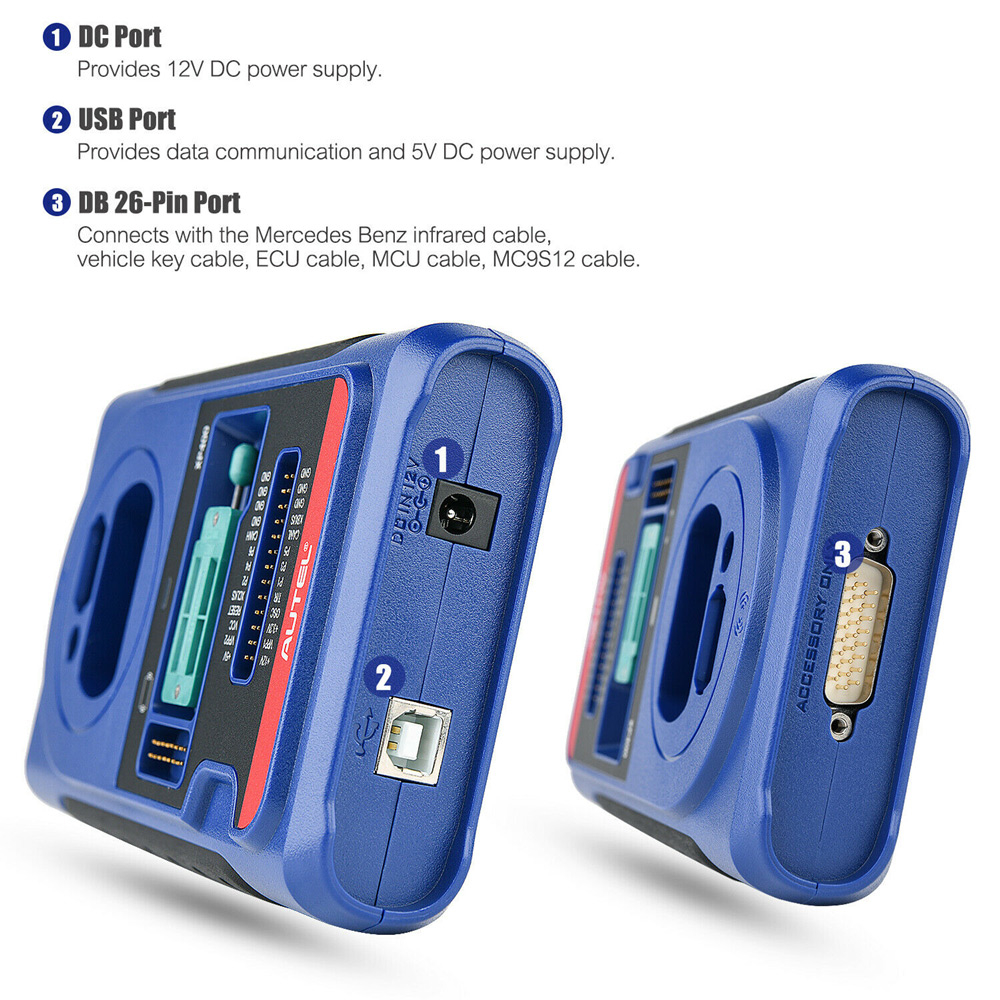

    DC Port : Provides 12 V power supply for the XP400.
    USB Port: Provides data communication and power supply for handheld device, PC and XP400.
    DB 26-Pin Port:

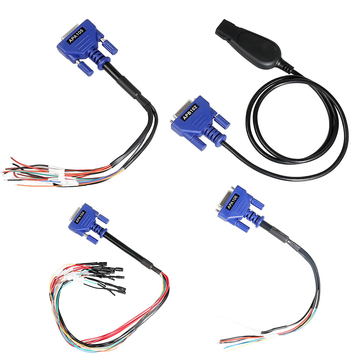

    Five components can be connected to this port:
    Mercedes Infrared Cable
    APA102 – Remote Match Cable (optional)
    APA104 – ECU Cable
    APA105– MCU Cable
    APA106 – MC9S12 Cable
    APA102 – Remote Match Cable (optional)
    No.
    Color
    Definition
    Pin correspond to DB26
    Note
    1
    Red
    VCC5V
    16
    2
    Black
    GND
    3/10/25
    3
    Blue and White
    REMOTE_MISO
    14
    4
    Gray and White
    REMOTE_MOSI
    5
    5
    Brown and White
    REMOTE_CLK
    23
    6
    Green and White
    REMOTE_RX_C S
    15

    APA104 – ECU Cable
    No.
    Color
    Definition
    Pin correspond to DB26
    Note
    1
    Red
    VCC12V
    7
    2
    Black
    GND
    25
    3
    Green
    IGN
    /
    4
    Orange
    CANL
    8
    5
    Blue
    CANH
    17
    6
    Brown
    BOOTM
    /
    7
    Yellow
    K
    18
    8
    White
    LIN
    26

    APA105 – MCU Cable
    No.
    Color
    Definition
    Pin correspond to DB26
    Note
    1
    Red and White
    VPP1
    20
    2
    Red and Black
    VPP2
    12
    3
    Red and Yellow
    +12V
    7
    4
    Red and Blue
    VPPR
    /
    5
    Black
    GND
    25
    6
    White
    S1
    14
    7
    Brown
    S2
    5
    8
    Gray
    S3
    23
    9
    Blue
    S4
    11
    10
    Red
    S5
    21
    11
    Orange
    S6
    13
    12
    Purple
    S7
    4
    13
    Yellow
    S8
    19
    14
    Green
    S9
    2
    15
    Black
    GND
    10
    Shielded Twisted
    16
    White
    OSC
    1
    Shielded Twisted

    APA106 – MC9S12 Cable
    No.
    Color
    Definition
    Pin correspond to DB26
    Note
    1
    Red
    +5V
    16
    2
    Black
    GND
    25
    3
    Green
    XCLKS
    2
    4
    Blue
    T/R
    11
    5
    Yellow
    RESET
    19
    6
    Black
    GND
    10
    Shielded Twisted
    7
    White
    OSC
    1
    Shielded Twisted

    Cross-shaped Signal Pin: Places MCU board, MCU spare cable or DIY signal cable to read or write MCU and ECU chips.
    IC Card Induction Area: Reads and writes IC card information.
    Vehicle Key Slot: Holds the vehicle key to read or write vehicle key information.
    Transponder Slot: Holds the transponder to read or write transponder information.
    Remote Control Transponder Induction Area: Reads and writes remote control transponder information.
    Mercedes Infrared Key Slot: Holds Mercedes infrared key to read or write Mercedes vehicle key information.
    Status LED: Shows the current operating status of the XP400. See the table below for detailed description.
    Indicator
    Status
    Description
    On
    Light Green
    Powered on and default
    Flash Green
    Communication
    Light Red
    Error
    Locker : Places EEPROM chip or socket to read or write EEPROM information.

    EEPROM Component Transponder Slot : Holds the EEPROM plug-in transponder or EEPROM socket.

    Autel XP400 Adapter Parameter
    Item
    Description
    Operating Temperature
    -10℃ ~ 60℃ (14℉ ~ 140℉)
    Storage Temperature
    -20℃ ~ 60℃ (-4℉ ~ 140℉)
    Port
    Mini USB, VGA_DB15
    Input Voltage
    5 VDC
    Operating Current
    < 250 mA
    Maximum Consumption
    1 W
    Device Dimensions (L*W*H)
    130 mm * 68 mm * 28 mm
    Package Dimensions (L*W*H)
    201 mm * 167 mm * 75 mm
    Net Weight
    466 g

    Shipping Method and Delivery Time:

    US, UK, Czech and Russia Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.
    US Check: Ship from US
    UK Check: Ship from UK
    EU Check: Ship from Czech
    Russia Check: Ship from RU
    DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. If address belongs to remote area, customer will need to pay remote handling cost or we can change to ship by EMS. Please remember to leave message if you have any special requirement.
    Yanwen Express: 7-10 working days. No Tax or remote cost for European Countries.
    Standard Post: 7-15 working days. To South America and Africa countries it may take 20-25 working days. Customers can tick Express Shipping Service to ship by DHL.
