Best Price V2021.6 MB SD Connect Compact 4 Wireless Star Diagnosis Support WIFI with Software HDD
Best Price V2021.6 MB SD Connect Compact 4 Wireless Star Diagnosis Support WIFI with Software HDD
2%
OFF

Best Price V2021.6 MB SD Connect Compact 4 Wireless Star Diagnosis Support WIFI with Software HDD

 0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.SP100BSS22110

{{detail_data.prodInfo.name}}

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
3$ off 50$ , Code:
BOWSHINE3
$   379
$ 385 save $ 6
0Reviews
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 379 $ 385 save $ 6
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
Returns:
Read details
Add to Wish list
  • Description

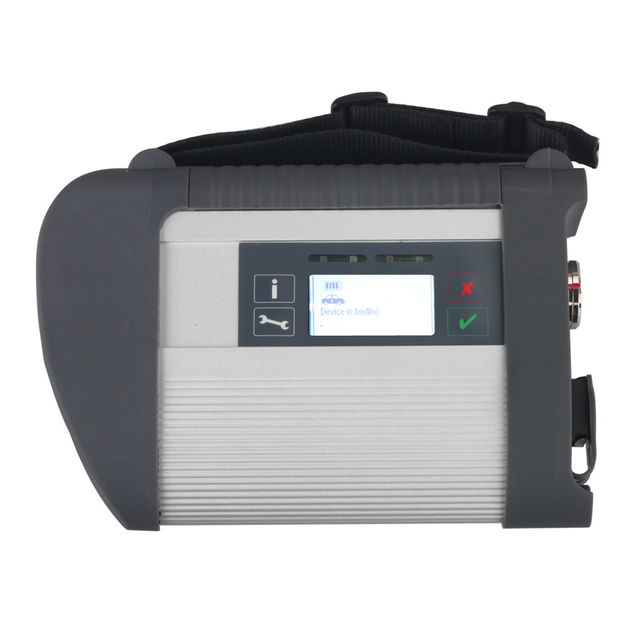

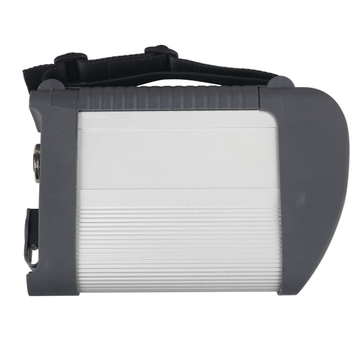

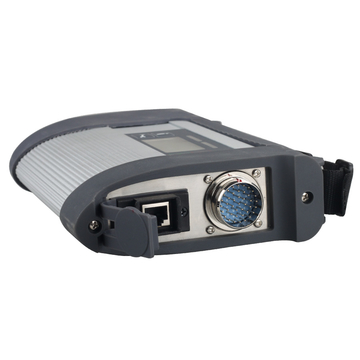

    • New MB SD Connect Compact 4 wireless Star Diagnosis Support WIFI with V2021.6 Software HDD

    Top 5 Reasons to Get New MB SD Connect Compact 4:

    1. New MB SD Connect C4 come with D-LINK WIFI Card
    2. New MB SD Connect C4 has more competitive price
    3. New MB SD Connect C4 come with latest software: V2020.9
    4. New MB SD Connect C4 support both cars and trucks, support wifi connection
    5. New MB SD Connect C4 come with one year warranty.

    Software includes (Win10 64Bit):

    Xentry 06.2021
    DAS 06.2021
    EPC 11.2018
    WIS 11.2018
    SDmedia Offline 2014.1
    HHT-WIN
    Vediamo 05.01.01
    Vediamo Database 2019
    Star Finder 2016 & 2020
    PL73 2019.1
    DTS Monaco V8.13 and V8.16

    Support Languages: English, Croatian, Czech, Danish, Dutch, Finish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian; Spanish, Swedish, Turkish, Chinese.

    New MB Compact 4 Feature:

    1. New MB SD Connect Compact 4 Star Diagnosis not only support K line diagnose and CAN BUS,but also UDS diagnose protocol. Because old MB STAR C4 main board do not have UDS chip, so old MB STAR C4 can not support it;

    2. Multiplexer now use Lan cable to connect, can fit Only applies to DELL computer and ThinkPad computer

    3. Connector adopt Military quick swap technology, it can support 10,000 times pull plug, more stable;

    4. All core accosseries adopt original new packing chip, and 24hours test, guarantee the quality of the products;

    5. Support multi-language: Bulgarian/ Danish/ Greek/ Spanish/ French/ Italian/ Korean/ Polish/ Romanuan/ Serbo-Croatian/ Turkish/ Czech/ German/ English/ Finish/ Hyngarian/ Japanese/ Dutch/ Portuguese/ Russian/ Swedish/ Chinese

    MB SD C4 Supported Vehicle List:

    Passenger Car Support List:

    A(176), A(169), A(168), B(246), B(245), CLC(117), C(204) C(203), C(202), 190(201), E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140), S(126), E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140), SLK(172), SLK(171), SLK(170), SL(231), SL(230), SL(129), SL(107), SLS(197), M(166), M(164), M(163), G(463), G(461), E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140), SLK(172), SL(231), SL(230), SL(129), SL(107), SLS(197), M(166), M(164), M(163), G(460), GL(164), GLK(204), R(251)

    Van Support List:

    MB 100(631), T1, SprinterIII, SprinterII, SprinterI, Sprinter900, Citan, Vito(639), Vito(638), V(638), Viano(639), T2, Vario, Vaneo(414)

    Truck Support List:

    Actros963/4, Actros2,3, AtegoIII, AtegoII, AxorII, Eonic, Zetros, Actros, Atego Light, Atego Heavey, HPN M96, Atron, HPN M2000, SKL, FSK, Further model series

    Unimog Support List:

    U20, UGN, UHN

    Bus Support List:

    TRAVEGO, INTOURO, INTEGRO, CITARO, CAPACITY, CITO, TOURISMO, O350/ O403, CONECTO, O404, O405- O408, Minibus, OC500, TOURO, TOURINO, MBC, MULITEGO, O500, O500/ OH, OH, OH368, OF, OF384, LO, O400, FURTHER MODEL SERIES

    Super Sports Car Support List:

    SLR(199)

    How to Set WIFI for New MB SD C4?

    1. Disconnect the local area connection
    2. Connect the sdconnect 4 with the car and start the car
    3. Connect to the wireless connections, please follow the next instructions to set: click Configuration-MUX-Register/configure, under the "General information", select name "04" and then tick off "Wlan parameters, road", then set the following parameters: IP address: 192.168.2.200, Network screen: 255.255.255.0, Encryption: WEP / Hex, Key: aaaaaaaaaaaaaaaaaaaaaaaaaa (26 a in total), we have video tutorial, please click column "Video" to watch or contact our customer service to send you.

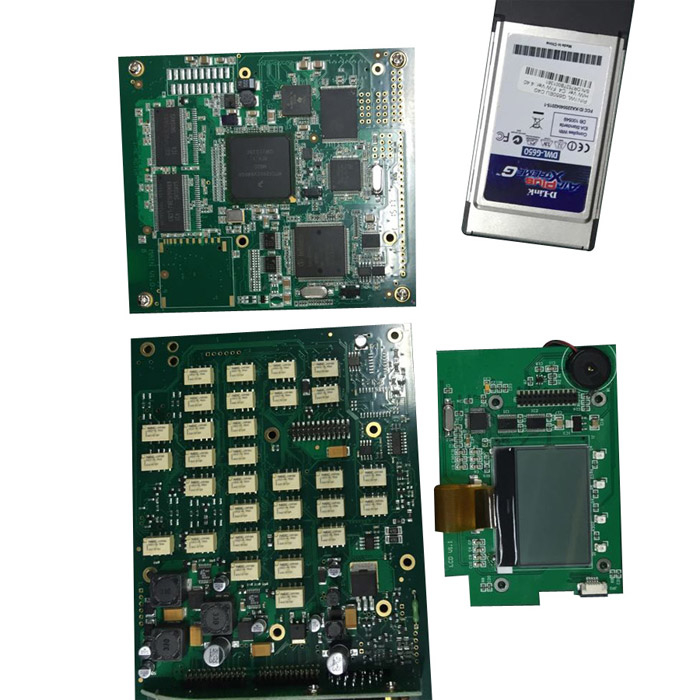

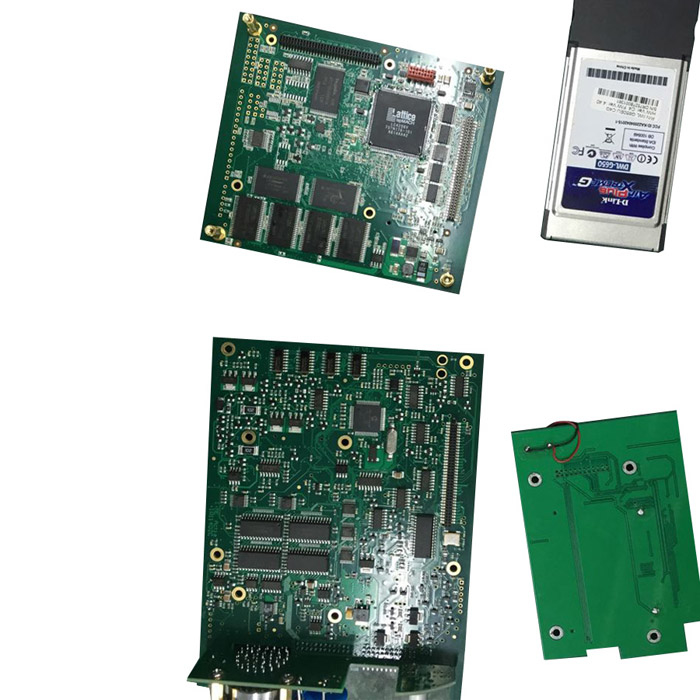

    New MB SD C4 PCB Board Display:

    MB SD Connect Compact 4
    MB SD Connect Compact 4

    MB SD C4 Firmware Update to V2.3 Procedure

    1. Prepare 6 common AA batteries of 5. Then install the battery by following the "1,steps-for-installing-battery" file.
    Notes: The batteries need to be new with fully charged.
    2. Connect the MB SD C4 interface with the computer by green cable. Then use the OBD cable to connect the MB SD C4 interface with car.
    If can not connect car, please use the OBD 12V power supply to take place of car.
    3. Open the 2012.09 DAS software. Then check those 3 files Update_automatic, Update_manual, Update_Special from the C:\programm files\SDconnect Toolkit.
    If the name of the file is not right, please correct it.
    4. Restart the computer.
    5. Start to update MB SD C4 Firmware by following the file from: "2,Update SDconnect".

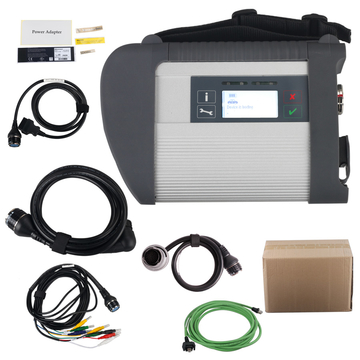

    Package list:

    1pc x New MB SD C4 Multiplexer

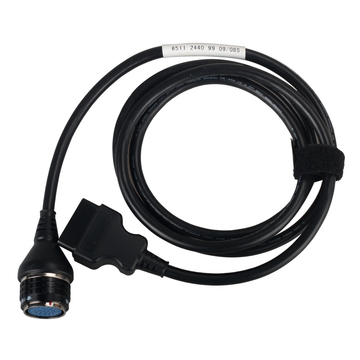

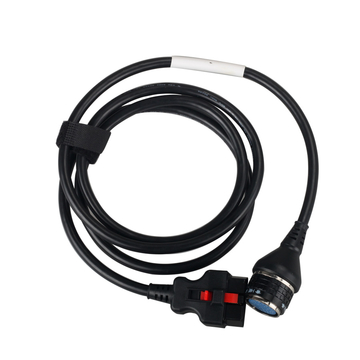

    1pc x OBDII 16PIN Cable

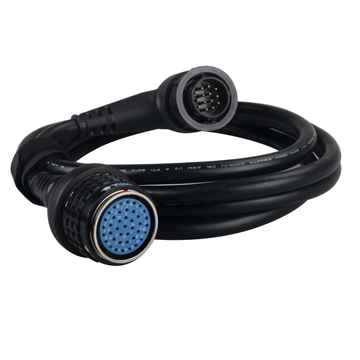

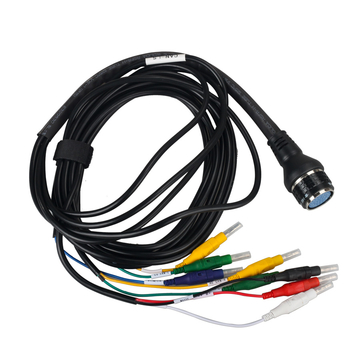

    1pc x 38PIN Cable
    1pc x 14PIN Cable
    1pc x 4PIN Cable

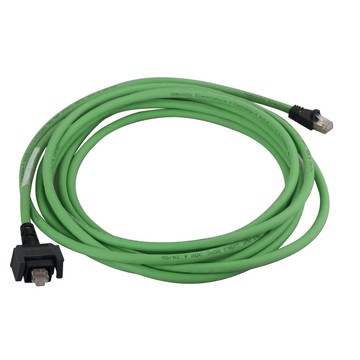

    1pc x Lan Cable
    1pc x Software HDD
    Shipping Method and Delivery Time:

    US, UK, Czech and Russia Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.
    US Check: Ship from US
    UK Check: Ship from UK
    EU Check: Ship from Czech
    Russia Check: Ship from RU
    DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. If address belongs to remote area, customer will need to pay remote handling cost or we can change to ship by EMS. Please remember to leave message if you have any special requirement.
    Yanwen Express: 7-10 working days. No Tax or remote cost for European Countries.
    Standard Post: 7-15 working days. To South America and Africa countries it may take 20-25 working days. Customers can tick Express Shipping Service to ship by DHL.
