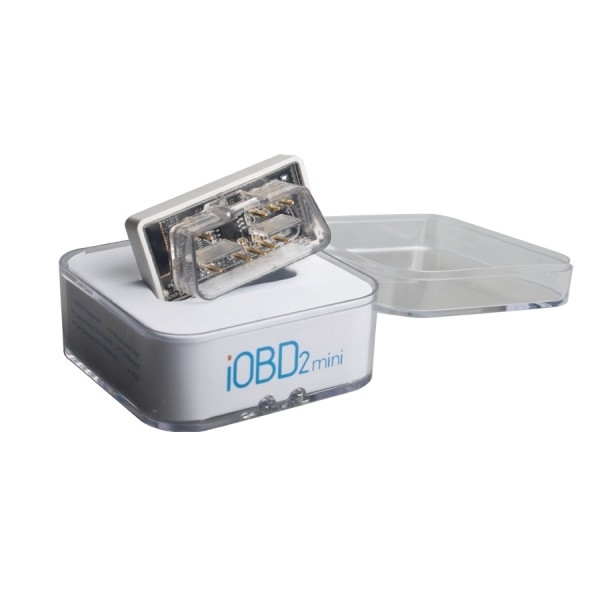

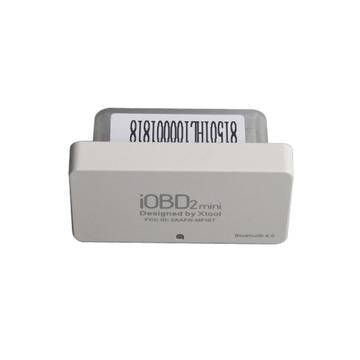

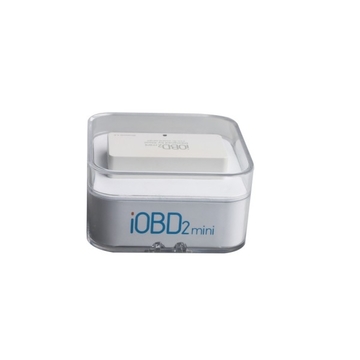

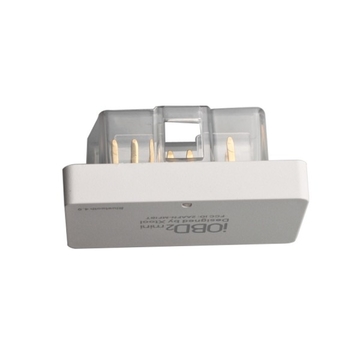

  • XTOOL iOBD2 Mini OBD2 EOBD Scanner Support Bluetooth 4.0 for iOS and Android
    Supported OBDII Protocols:
    1. ISO15765-4 (CAN)
    2. ISO14230-4 (KWP2000)
    3. ISO9141-2
    4. J1850 VPW
    5. J1850 PWM
    Support Both IOS and Android
    Recommended APP: IOBD2 (search and download it from Apple store and Google Play Store)
    Bluetooth Connection: Bluetooth 4.0

    Language supported: English only
    iOBD2 Mini OBD2 EOBD Scanner Function:
    1.Diagnose
    The Diagnostic functions include (Picture 1):
    Function Display 1
    Reads DTCs: Reads the current DTCs stored in the engine and shows their detailed information.
    Clear DTCs: Clears the current DTCs.
    Live Data: Reads the parameters related to the ECU.
    Freeze Frame Data: ECU will set DTCs and record the data stream of the car engine at the moment when emissions related faults occurred. And the data is called freeze frame data.
    Readiness Test: Shows the status of readiness test. Click Readiness test in the menu, the screen will display the test status of the car.
    Support and Complete: It means the car supports this test and has completed.
    Support But Incomplete: It means the car supports this test but has not completed.
    Not supported: It means the car does not support this test.
    2) My Dashboard

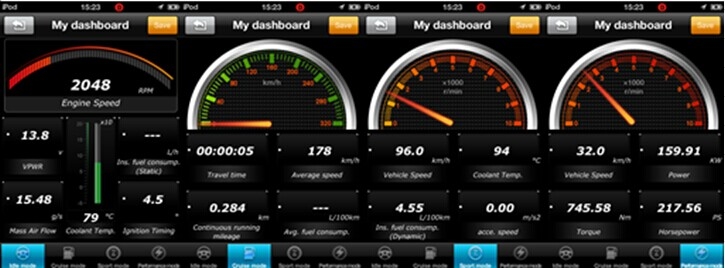

    [My dashboard] function includes (Picture 2,3, 4,5):
    Function Display 2
    Idle Mode: show you the engine rotational speed, water temperature, battery voltage, Air-intake temperature, instant fuel consumption (static), average fuel consumption. Ever wished you had your own customizable gauges, showing only the data you were interested in (Picture 2)
    Cruise mode: show you the vehicle speed, The current engine load, water temperature, Vehicle travel time, vehicle travel average speed, Continuous running mileage, instant fuel consumption(dynamic),Ever wished you had your own customizable gauges, showing only the data you were interested in.(Picture 3)
    Sport mode: show you the engine rotational speed, vehicle speed, water temperature。Ever wished you had your own customizable gauges, showing only the data you were interested in.(Picture 4)
    Performance mode: show you the vehicle speed, capacity, torque, horsepower and you can also customize your gauges here (Picture 5)

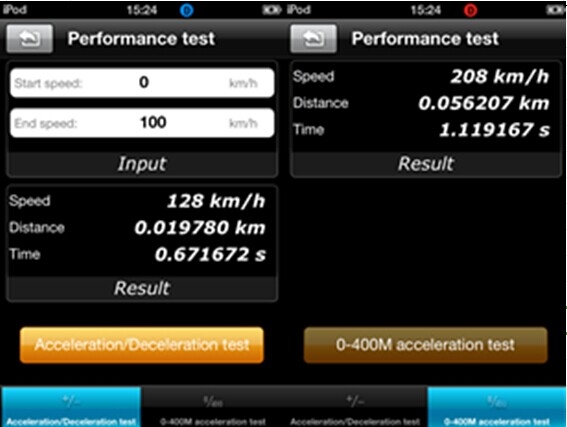

    4) Performance Test
    Performance Test Function Includes(Picture 8, 9):
    Function Display 3
    Accelerate/Decelerate test: Test acceleration / deceleration process time and distance. (Picture 8)
    0 to 400m acceleration test: Test spending time from 0 to 400 meters. (Picture 9)
    5) Setting
    It allows users to change the unit of temperature, mileage, vehicle speed, fuel, fuel consumption, torque and horsepower, set the alarm for over speed, fatigue driving and water temperature, and set parameters of vehicle weight, fuel consumption coefficient and vehicle speed coefficient according to their needs on [Customize My Dashboard] (Picture 10) .
    Function Display 4

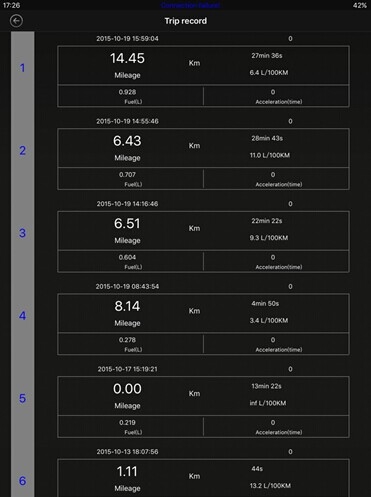

    6) History
    Driving data such as trip distance, average speed, fuel consumption and acceleration time will be recorded.
    Function Display 5
    Cautions & Warnings:
    Please read following tips before you use iobd2:
    Please plug the IOBD2 mini adapter correctly into your car by following the installation instructions before operating.
    When driving the car, please do not operate this unit. Any distraction may cause an accident.
    IOBD2 mini communicates with cars via Bluetooth. Please do not use this product in the places with strong electro-magnetic interference in order to ensure communication proper.
    All information on this manual is based on the latest IOBD2 mini version. XTOOLTECH reserves the right to make changes at any time without notice.

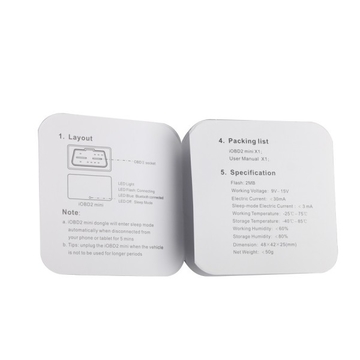

    IOBD2 Mini OBD2 EOBD Scanner Specifications:
    Flash: 2MB
    Working Voltage: 9~12 V
    Electric Current: < 30 mA
    Sleep-mode Electric Current: < 3 mA
    Working Temperature: -25℃~75℃
    Storage Temperature: -40℃~85℃
    Working Humidity: < 60 %
    Storage Humidity: < 80 %
    Dimension: 48 * 42 * 25 (mm)
    Net Weight: < 50 g

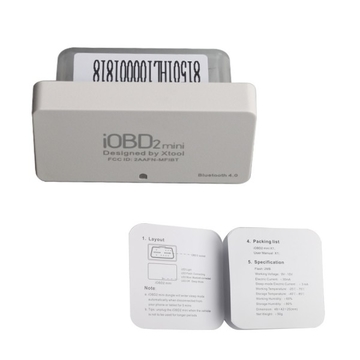

    Package List:
    1pc x IOBD2 Mini
    1pc x User's manual

    Shipping Method and Delivery Time:

    US, UK, Czech and Russia Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.
    US Check: Ship from US
    UK Check: Ship from UK
    EU Check: Ship from Czech
    Russia Check: Ship from RU
    DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. If address belongs to remote area, customer will need to pay remote handling cost or we can change to ship by EMS. Please remember to leave message if you have any special requirement.
    Yanwen Express: 7-10 working days. No Tax or remote cost for European Countries.
    Standard Post: 7-15 working days. To South America and Africa countries it may take 20-25 working days. Customers can tick Express Shipping Service to ship by DHL.
