  • Launch X431 HD3 Ultimate Heavy Duty Truck Diagnostic Adapter

    LAUNCH X431 HD3 is Ultimate Heavy Duty Truck Diagnostic Adapter. With full comprehensive diagnostic software function, it's the most convenient and easy to scan and diagnose vehicle. It supports wireless Bluetooth diagnosis for various car models. Work with X431 V+ , X431 PRO3, X431 PAD II and X431 PAD III scanners together, it support trucks and commercial vehicles.

    With this device you can test heavy duty truck 24V. Connections via USB and Bluetooth. The package also includes the necessary additional adapters.

    Launch X431 HD3 Features:

    1. Full comprehensive HD truck diagnostic software functions
    2. Wide diagnostic software coverage
    3. Accurate test data
    4. Release new software version timely to let customers enjoy latest service
    5. Able to test truck with 12V or 24V battery diesel engine. When testing 24V truck, battery conversion is not required
    6. Diagnostic hardware is designed according to international standard, compatible with diagnostic interfaces of worldwide models
    7. Including wide-range connector and cable
    8. Supported brands:Benz,Man,Volvo,Daf,Scania,Iveco,Renault,Freightliner,International,Mack,Fuso,Isuzu,UD, etc.

    Launch X431 HD3 Functions

    Identification of control units
    Adaptation of control units
    Reset service intervals
    Reading vehicle data streams
    Display of current system parameters
    Check actuators
    Reading and erasing vehicle fault codes

    Launch X431 HD3 Benefits

    36 brands of foreign trucks with the possibility of expanding the supported brands

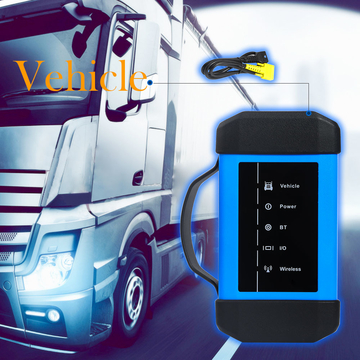

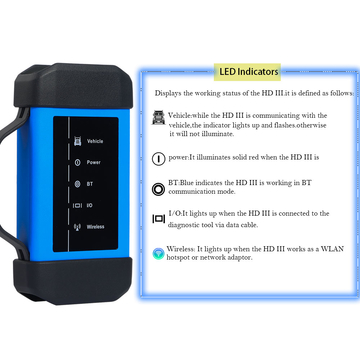

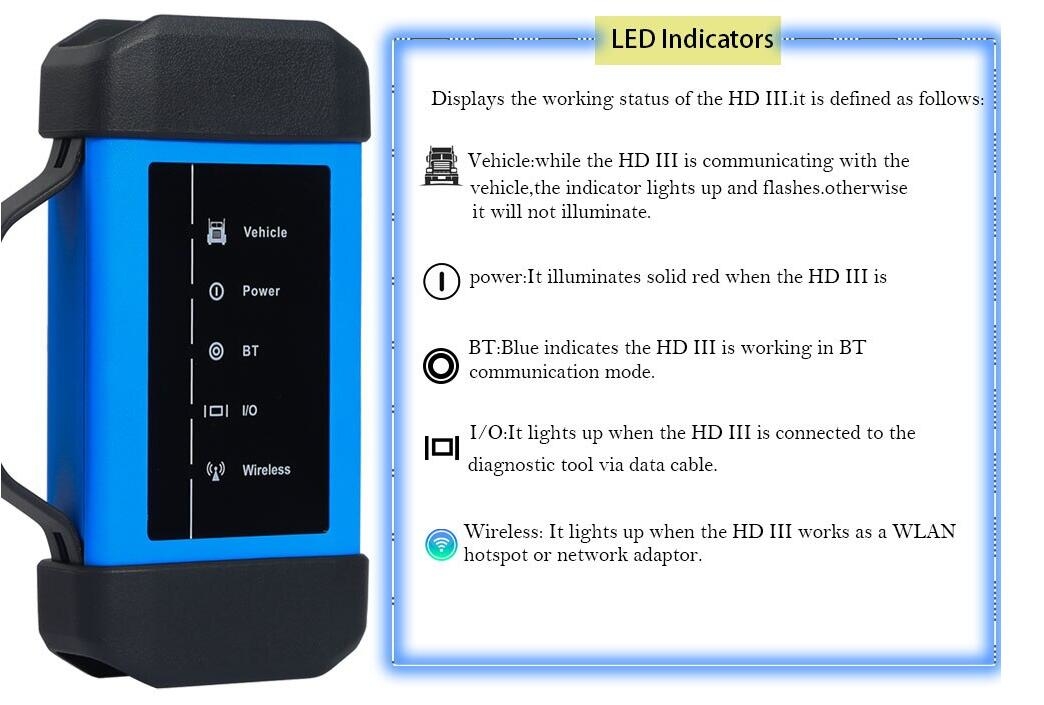

    indicators showing the status of the connection in real time
    IP65 protection
    shockproof case.

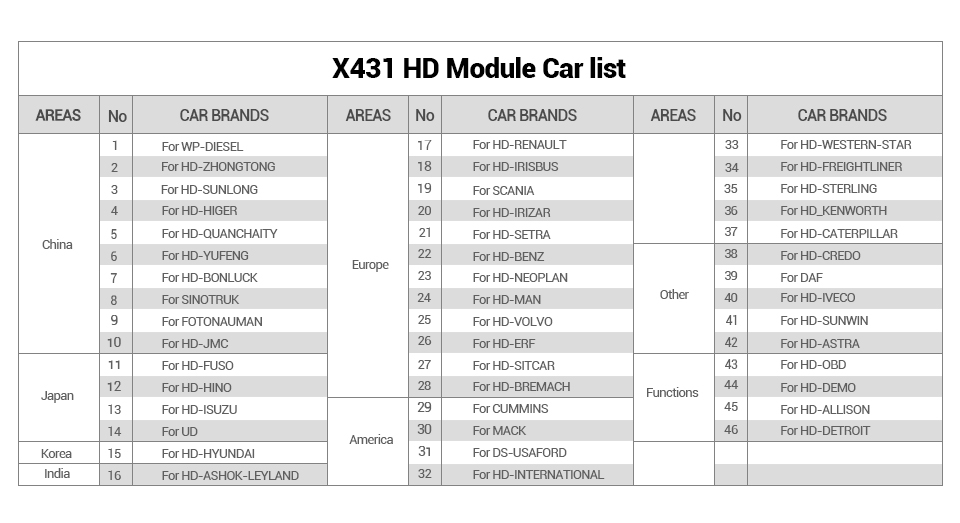

    Launch X431 HD3 Supported heavy duty vehicle list:


    Europe:
    MERCEDES BENZ
    MAN
    VOLVO
    SCANIA
    IVECO
    DAF
    RENAULT

    U.S:
    Freightliner
    INTERNATIONAL
    Kenworth
    PETERBILT
    STERLING
    WESTERN STAR
    MACK
    DETROIT
    CUMMINS

    Asia:
    HINO
    FUSO
    ISUZU
    UD
    HYUNDAI

    Launch X431 HD3 Diagnostic system:
    Engine Diagnosis:
    support Chaochai, Dachai, Laiyang Power, Quanchai, Shangchai, Weichai, Xichai, Yangchai, Yuchai, Yunnei Power, Cummins, Xinchen Power, Chaochai Xinfeng, Great Wall Xinfeng, Doosan, Huayuan Lai, Platinum, Isuzu and other engine systems;

    Natural Gas Diagnosis:
    support Cummins natural gas, Nanchong natural gas, Shangchai natural gas, Weichai natural gas, Xichai natural gas, Iveco natural gas, Yuchai natural gas, heavy gas natural gas, Chaochai natural gas, Yunzhong natural gas system, etc.;

    Post-Processing Diagnosis:
    support Guangxi Sanli tail gas post-treatment, Tenneco post-treatment, Kailong post-treatment, Tianlan DCU, Bosch post-processing system diagnosis, etc.

    Calibration Function:
    support Chaochai calibration, Dongfeng Renault calibration, Cummins calibration, Shangchai calibration, Weichai calibration, Xichai calibration, Yuchai calibration, heavy truck calibration, Yangchai calibration, etc.;

    ECU Brush Writing:
    support Bosch ECU brush writing, Nanyue single pump ECU brush writing, Bosch bottom layer brush writing, natural gas ECU brush writing, electric ECU brush writing, Delphi ECU brush writing, China National Heavy Duty Truck ECU brush writing, Tenneco DCU Wait;

    ABS System:
    WABCO ABS, Delphi ABS, Knorr ABS, Bosch ABS, Komi ABS, Localized ABS (liberation), Wanan ABS, SABS, Asia Pacific ABS, Hongding ABS, Wanan ABS (liberation), Yuan Feng Qingqi ABS, Wanan Qingqi ABS, Ford ABS, Wandu ABS, Jingxi Heavy Industry ABS, etc.;

    Construction Machinery:
    Supports dozens of engineering machinery vehicle system diagnostics.

    Launch X431 HD3 Specifications:

    CPU: 1.4GHz quad core
    Operating system: Android 7.1
    Memory: 2G
    Storage: 16GB, support 128G expansion
    Display: 10.1-inch capacitive screen
    Screen resolution: 1280×800
    Camera: 5 million pixels behind
    Weight: about 0.50 kg
    Size: 264x210x30 (mm)
    Working temperature: -10 ° C ~ 50 ° C

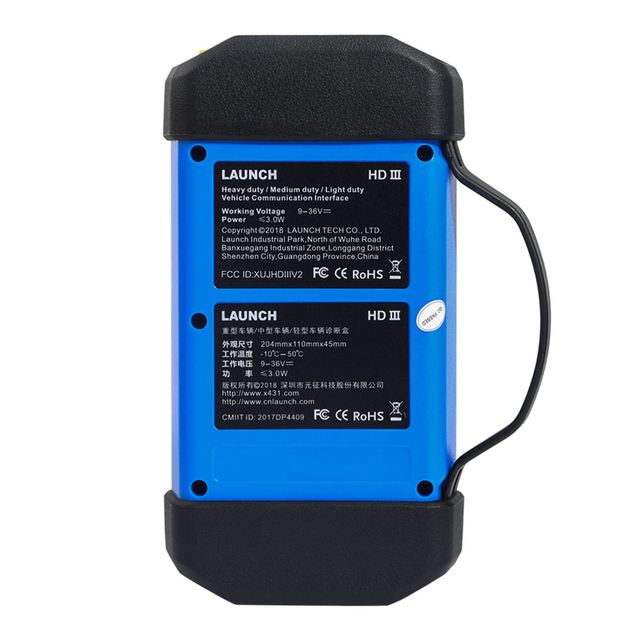

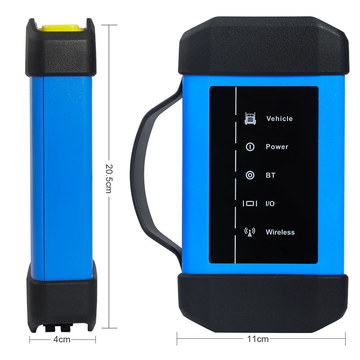

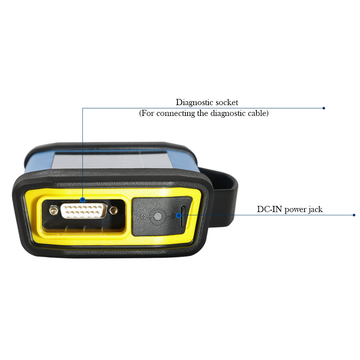

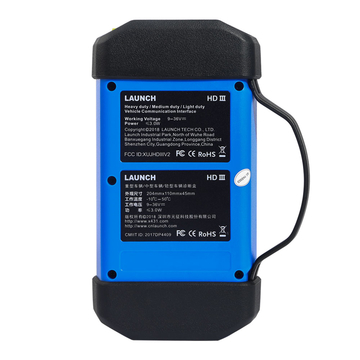

    Diagnostic box parameters
    CPU: 120MHz
    Power consumption: ≤3W
    Working voltage: DC 9-36V
    Working temperature: -10 ° C ~ 50 ° C
    Communication method: USB+Wi-Fi+Bluetooth
    Size: 204x110x45 (mm)

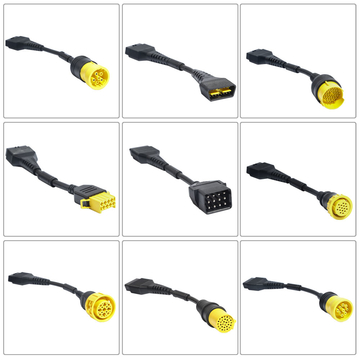

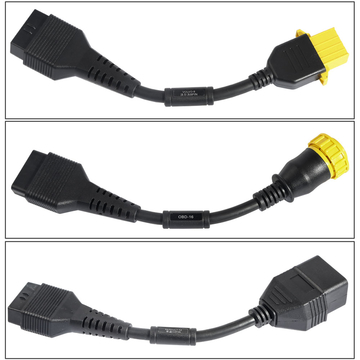

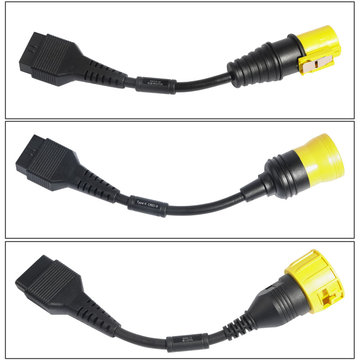

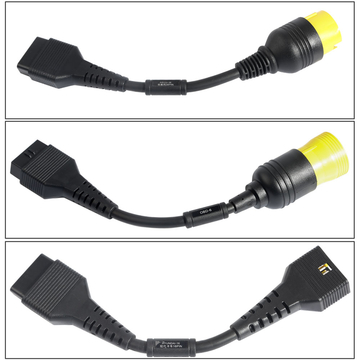

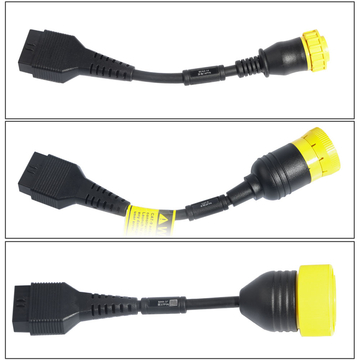

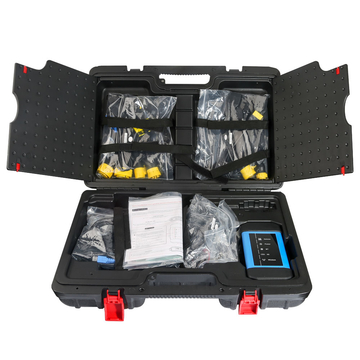

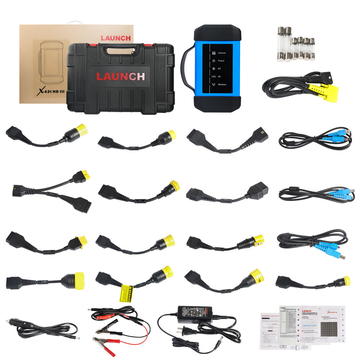

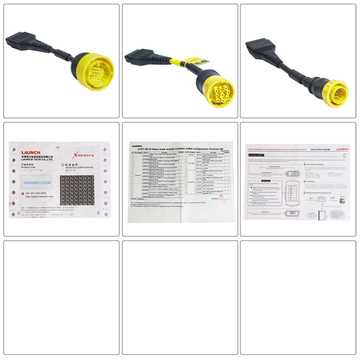

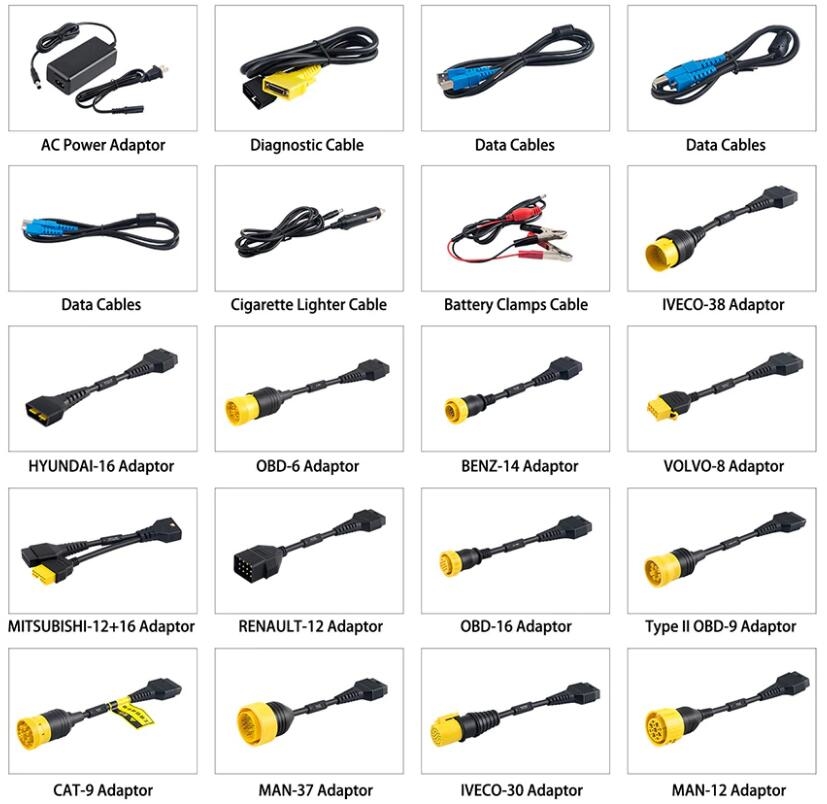

    Launch X431 HD3 Packing List:

    Launch X431 HD3 Packing List:
    1 pc x Launch X431 HD3
    1 pc x AC Power Adapter
    1 pc x Diagnostic Cable

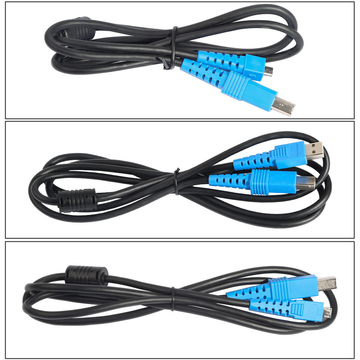

    3 pc x Data Cables
    1 pc x Cigarette Lighter Cable
    1 pc x Battery Clamps Cable
    1 pc x IVEO-38 Adaptor
    1 pc x Hyundai-16 Adaptor
    1 pc x OBD-6 Adaptor
    1 pc x Benz-14 Adapter
    1 pc x Volvo-8 Adapter
    1 pc x Mitsubishi-12+6 Adapter
    1 pc x Renault-12 Adaptor
    1 pc x OBD-16 Adaptor
    1 pc x Type II OBD-9 Adaptor
    1 pc x CAT-9 Adaptor
    1 pc x MAN-37 Adaptor
    1 pc x IVECO-30 Adaptor
    1 pc x MAN-12 Adaptor


    Shipping Method and Delivery Time:

    US, UK, Czech and Russia Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.
    US Check: Ship from US
    UK Check: Ship from UK
    EU Check: Ship from Czech
    Russia Check: Ship from RU
    DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. If address belongs to remote area, customer will need to pay remote handling cost or we can change to ship by EMS. Please remember to leave message if you have any special requirement.
    Yanwen Express: 7-10 working days. No Tax or remote cost for European Countries.
    Standard Post: 7-15 working days. To South America and Africa countries it may take 20-25 working days. Customers can tick Express Shipping Service to ship by DHL.
