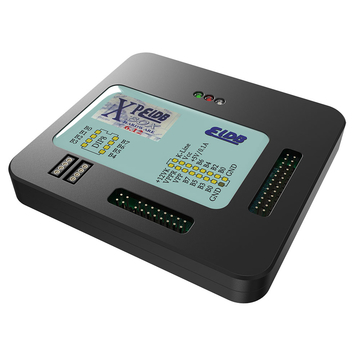

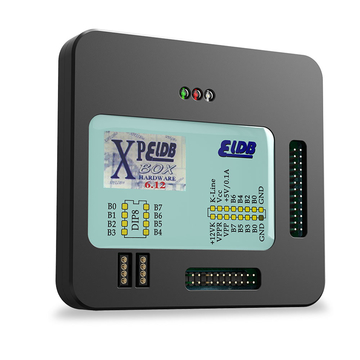

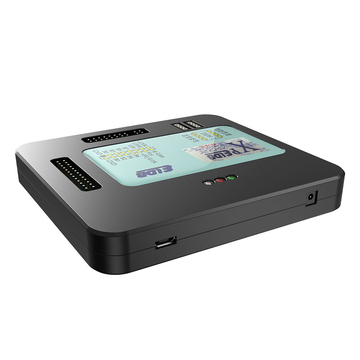

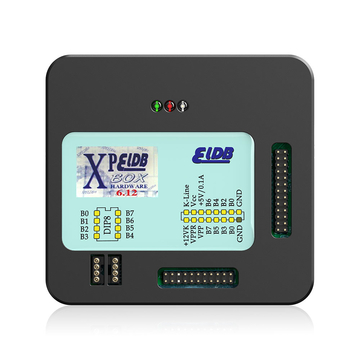

  • Latest Version XPROG-M V6.12 ECU Programmer with USB Dongle

    XPROG-M V6.12 Highlights:


    1. Latest Software Version: V6.12, Firmware: V4.4
    2. With USB Dongle, No need activation
    3. Adds new authorization: AUTH-0028-1 Renesas V850 Authorized and AUTH-0028-2 Renesas SuperH Authorized 2017/10/9
    4. Operating System: WinXP/Win7/Win8

    Ship from UK warehouse to European address ONLY,other countries please buy XPROG-M V5.84

    Language: English only.

    XPROG-M V6.12 Using Tips:

    1. You are not allowed to update from the older version Xprog V5.84 to this newest V6.12 XPROG-M Dongle.
    2. Make sure anti-virus program closed. Or X-prog software may be killed.
    3. Disconnect the internet. Or V6.12 XPROG-M hardware may be damaged.
    4. Uninstall all of the old version of xprog-m or Xprog box software, before you install V6.12 software we provide, because our xprog-box hardware is not compatible with other lower or higher version software. Otherwise the hardware will be damaged and its warranty will be invalid.
    5. Never try to UPDATE, or XPROG-M hardware will be damaged; if you update it online, its warrantywill be invalid.

    XPROG M V6.12 Authorizations included:

    AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
    AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
    AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
    AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
    AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
    AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
    AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
    AUTH-0008 BMW EWS3 authorization
    AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
    AUTH-0010 MB ZGS001 authorization
    AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
    AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
    AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
    AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
    AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
    AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
    AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
    AUTH-0023-1 MAC7xxx
    AUTH-0023-2 XC23xx
    AUTH-0024-1 MC9S12Cxx
    AUTH-0024-2 MC9S12XE
    AUTH-0024-3 9S12XE SECURITY
    AUTH-0024-4 MC9S12HA/HY/P
    AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
    AUTH-0027-1 HC(S)908 update Authorized 2016/3/13
    AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13
    AUTH-0028-1 Renesas V850 Authorized 2017/10/9
    AUTH-0028-2 Renesas SuperH Authorized 2017/10/9

    Xprog m 6.12 Newly added authorized:
    AUTH-0028-3 Renesas RL78 Authorized
    AUTH-0028-4 Renesas M32C Authorized

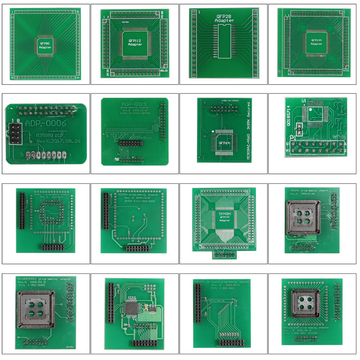

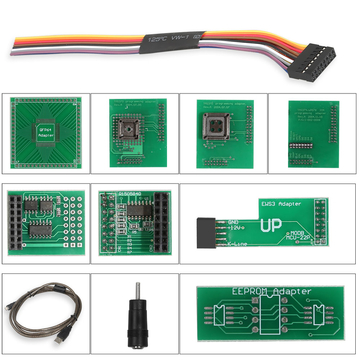

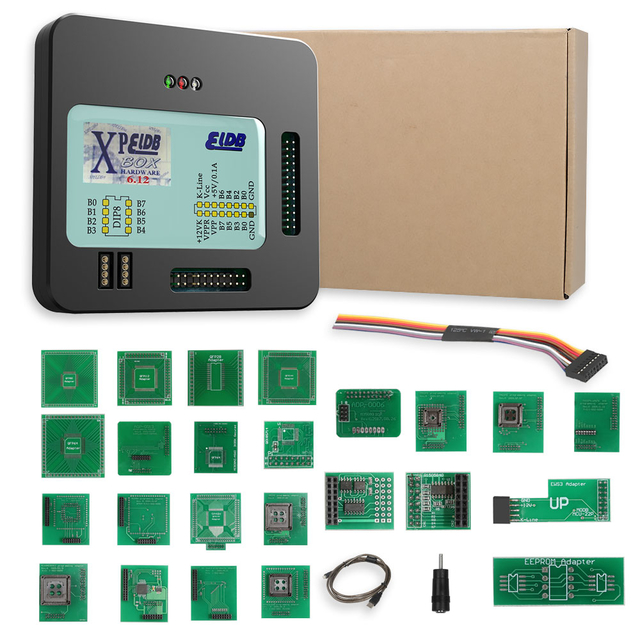

    XPROG-M V6.12 Adapters included:

    ADP-0001 TMS370 PLCC28 programming adapter
    ADP-0002 TMS370 PLCC44 programming adapter
    ADP-0003 TMS370 PLCC68 programming adapter
    ADP-0004 Motorola HC05B/X PLCC52 programming adapter
    ADP-0005 Motorola HC05B/X QFP64 programming adapter
    ADP-0006 ST M35080 in-circuit programming adapter
    ADP-0008 TMS374 family in-circuit programming adapter
    ADP-0009 MC68HC05V12 programming adapter
    ADP-0010 TMS374 on-board programming adapter
    ADP-0011 HC11EA9/E9 programming adapter
    ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
    Additional adapter for 5M48H P-Flash
    ADP-0019 Rev.A
    EWS3 adapter
    EEPROM adapter
    QFP28 adapter
    QFP64 adapter
    QFP80 adapter
    QFP112 adapter
    QFP144 adapter

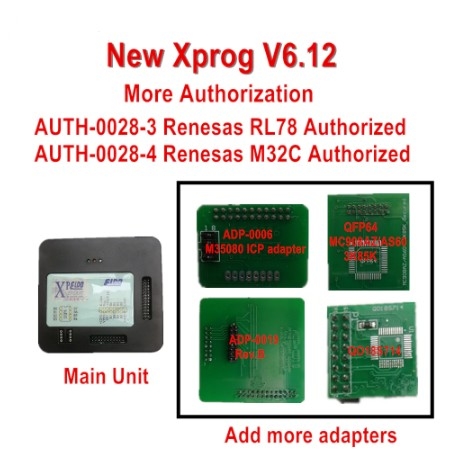

    X-PROG V6.12 Newly Added 4 Adapters:

    ADP-0019 Rev.B
    ADP-0006 M35080 ICP adapter
    QFP64 MC908AZ/AS60 3K85K adapter
    QO18S714
    X-PROG V6.12 Newly Added 4 Adapters:
    XPROG-M V6.12 Install Notice:

    XPROG-M V6.12 windows system required as below:
    1. Windows XP 32bit OR windows 7 64 bit required, all the patch software for the windows system should be installed already and the windows properly works well...
    2. The windows system should be with at lest 2 partitions (except the CD ROM.)
    3. Can not be working with virtual harddisk.

    XPROG Box 6.12 Installing Steps:

    1. Click the file "installation.reg", get the file information to the regedit.
    2. Install the file "AdbeRdr11000_zh_CN.exe", it is a must, otherwise the Xprog software will not start.
    3. Plug the Xprog main interface to the computer, install the USB driver.
    4. Copy the folder "XPROG-BOX6.12" to the desktop, and open it, and run the "xprogdesktop.exe", then software open.

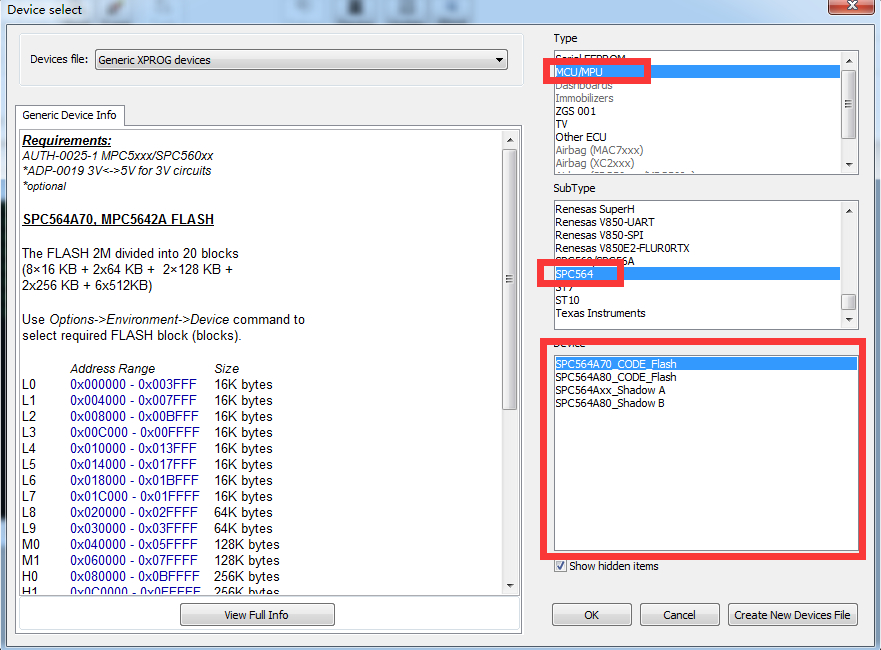

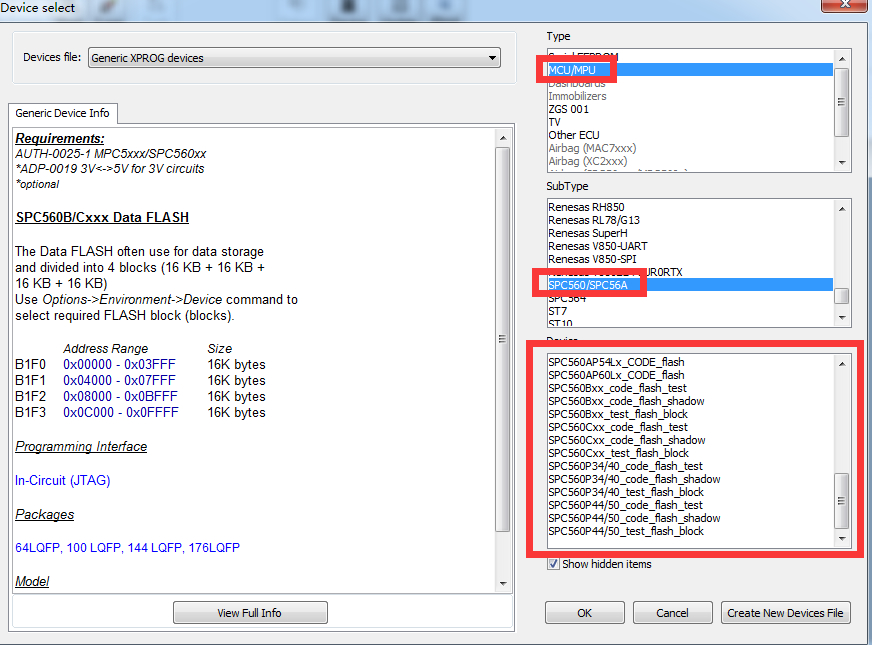

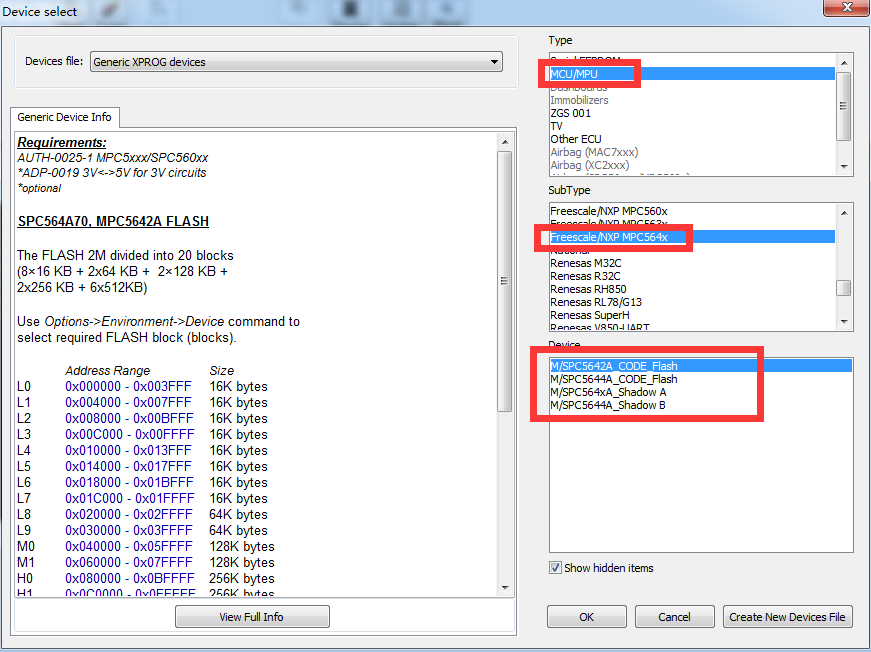

    XPROG-M V6.12 Software Add some functions A PART Display:

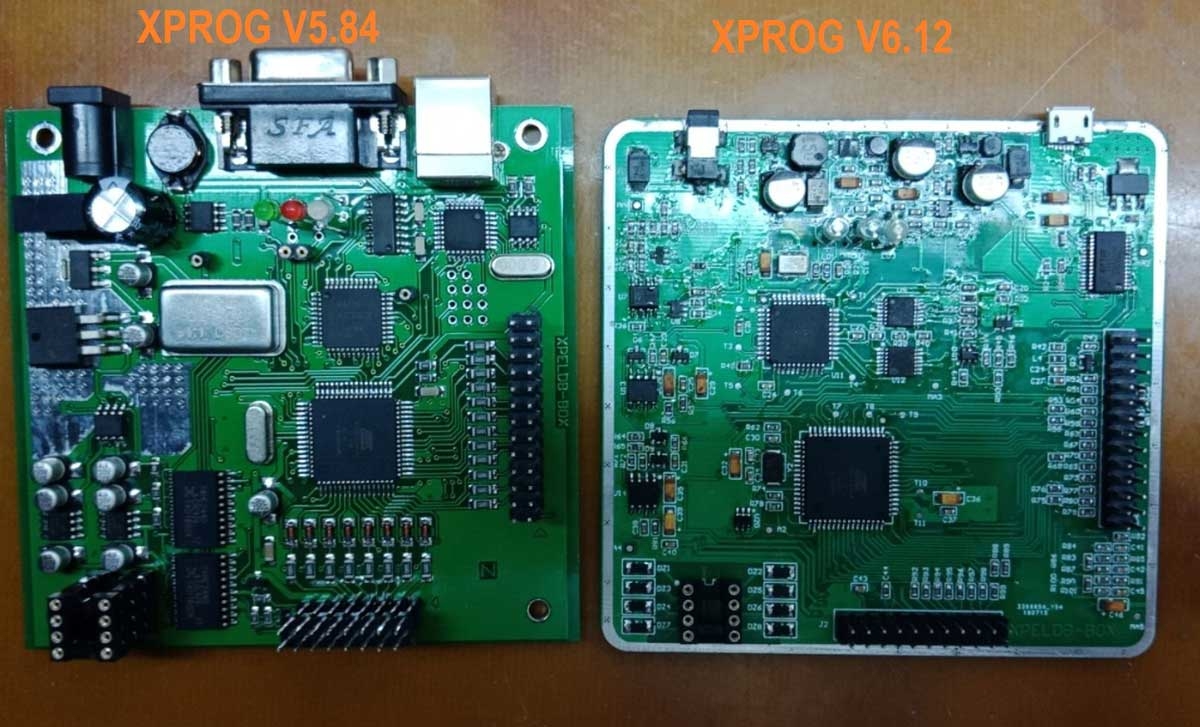

    XPROG V6.12 PCB VS XPROG V5.84 PCB

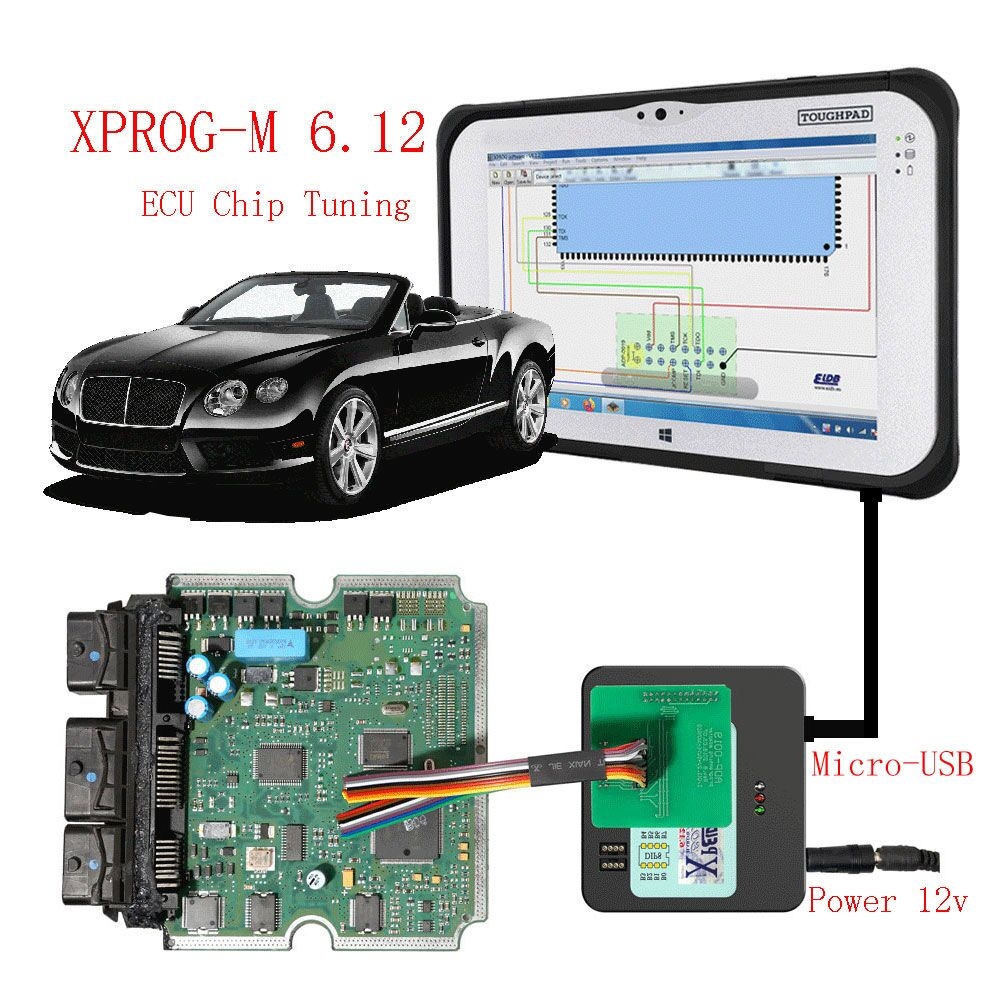

    How to Connect XPROG V6.12?



    Xprog V6.12 Full Chip List:

    EEPROM
    Atmel
    AT24C01A
    AT24C02
    AT24C04
    AT24C08
    AT24C16
    AT24C32
    AT24C32A
    AT24C64
    AT24C64A
    AT25010
    AT25020
    AT25040
    AT25080
    AT25160
    AT25320
    AT25640
    AT25128
    AT25256
    AT93C46
    AT93C46A
    AT93C56
    AT93C56A
    AT93C57
    AT93C66
    AT93C66A

    Catalyst
    CAT24(W)C01
    CAT24(W)C02
    CAT24(W)C04
    CAT24(W)CO8
    CAT24(W)C16
    CAT24(W)C32
    CAT24(W)C64
    CAT93C46
    CAT93C46A
    CAT93C56
    CAT93C56A
    CAT93C57
    CAT93C66
    CAT93C66A
    CAT93C86
    CAT93C86A

    FAIRCHILD
    FM93C46
    FM93CS46
    FM93C56
    FM93C66
    FM93C86A

    Microchip
    24xx00
    24xx01
    24xx014
    24xx02
    24xx04
    24xx08
    24xx16
    24xx32
    24xx64
    24xx128
    24xx256
    24xx320
    93xx46A
    93xx46B
    93xx46C
    93xx56A
    93xx56B
    93xx56C
    93xx66A
    93xx66B
    93xx66C
    93xx76A
    93xx76B
    93xx76C
    93xx86A
    93xx86B
    93xx86C

    Mitsubishi
    M6M80011
    M6M80021
    M6M80041

    National
    NM24C02
    NM24C03
    NM24C04
    NM24C05
    NM24C08
    NM24C09
    NM24C16
    NM24C17
    NM93C06/L/LZ
    NM93C46/L/LZ
    NM93CS46/L/LZ
    NM93C46A/AL
    NM93C56/L/LZ
    NM93C56A
    NM93CS56/L/LZ
    NM93C66/L/LZ
    NM93C66A
    NM93CS66/L/LZ
    NM93C86A/AL

    ST
    ST24/25xx01
    ST24/25xx02
    ST24/25xx04
    ST24/25xx08
    ST24/25xx16
    M24C32
    ST24/25E32
    M24C64
    ST24/25E64
    ST24/25E256
    M35080
    M35160
    M93C06
    M93C46
    M93C56
    M93C66
    M93C76
    M93C86
    M95010
    M95020
    M95040
    M95080
    M95160
    M95320
    M95640
    M95128
    M95256
    M95512
    ST93C06
    ST93C46A/47
    ST93CS46/47
    ST93C56/57
    ST93CS56/57
    ST93C66/67
    ST93CS66/67
    ST95P02
    ST95P04
    ST95P08

    Toshiba
    TC89101
    TC89102

    Xicor
    X24(C)02
    X24(C)04
    X24(C)08
    X24(C)16
    X24164
    X24(C)44

    MCU/MPU
    Atmel
    ATmega8
    ATmega16

    ATmega32
    ATmega64
    ATmega128

    Infineon(XC16x)
    SA-KXC164C9-16F
    SA-KXC164CS-32F

    Infineon(XC20xx)
    SAH-XC2060M-104 flash0
    SAH-XC2060M-104 flash1
    SAH-XC2060M-104 flash2
    SAH-XC2060M-104 flash3
    SAK-XC2060N-40 flash0
    SAK-XC2060N-40 flash1

    Infineon(XC22xx)
    SAH-XC226xN-16 flash0
    SAH-XC226xN-16 flash1
    SAH-XC226xN-24 flash0
    SAH-XC226xN-24 flash1
    5AH-XC226xN-40 flash0
    SAH-XC226xN-40 flash1

    Infineon(XC23xx)
    SAH-XC23364-72 flashO
    SAH-XC23364-72 flash1
    SAH-XC23364-72 flash3
    SAK-XC2336B-24 fla.h0
    SAK-XC2336B-24 flash1
    SAK-XC2336B-40 flash0
    SAK-XC2336B-40 flash1
    SAK-XC236xA-56 flashO
    SAH-XC236xA-56 flash1
    SAH-XC236xA-56 flash3
    SAH-XC236xA-72 flash0
    SAH-XC236xA.72 flash1
    SAH-XC236xA-72 flash3
    SAH-XC236xA-104 fashO
    SAH-XC236xA.104 fash1
    SAH-XC236xA-104 flash2
    SAH-XC236xA-104 flash3
    SAH-XC236xB-24 flashO
    SAH-XC236xB-24 fash1
    SAH-XC236xB-40 flashO
    SAH-XC236xB-40 flash1

    neon(XC27xx)
    SAH-XC27x7X flash0
    SAH-XC27x7X flash1
    SAH-XC27x7X flash2
    SAH-XC27x7X flash3
    SAH-XC27x7X flash4
    SAH-XC27x7X flash5
    SAH-XC27x7X flash6

    Freescale/NXP(MAC7xxx)
    MAC7111VAG50 Flash
    MAC7111VAG50_ Data_ Flash
    MAC71 12VAG50_ Flash
    MAC7112VAG50_ Data _Flash
    MAC7116VAG50_ Flash
    MAC7116VAG50_ Data _Flash
    MAC7131MVF_ Flash
    MAC7131MVF_ Data_ FIash
    MAC7241VAF64_ Flash
    MAC7241VAF64_ Shadow_ Block
    MAC7242VAF64_ Flash
    MAC7242VAF64_Shadow_Block

    Microchip
    PIC12C509A

    Micronas
    CDC3217G
    CDC3272G
    CDC3297G
    CDC32xxG> 24C32


    Micronas-secured
    CDC3217G-secured
    CDC3272G-secured
    CDC3297G-secured
    CDC32xxG-secured>24C32

    Freescale/NXP HCO5
    MC68HC05B4/B6/B8/B16/B32
    MC68HC705B16[0D28J]
    MC68HC705B16N
    MC68HC705B32
    MC68HC705B32(3G96A)
    MC68HC05X32(0D53J)
    MC68HC05X32(0D62J)
    MC68HC05X32(0D69J;1H52A)
    MC68HC05X32[1D69J]
    MC68HC705X32(2D59J)
    MC68HC05K3(S105078003)
    NC68HC05E6(0F82B)
    MC68HC05E6(0G72G)
    MC68HC05H12[0H57A]
    MC68HC05P3(1E25B)
    MC68HC705P3(1F75B)
    MC68HC05V12(1H24M)

    Freescale/NXP HCO8
    XC68HC708AZ60(8H62A)
    MC68HC084S32(1J27F)
    MC68HC08AZ32
    MC68HC08AZ32(0J66D)
    MC68HC908AZ32(0L72A)
    MC68HC08AZ32A(1L52H)
    MC68HC08AZ32A(2L52H]
    MC68HC08AS60
    MC68HC08AS60[8H62A)
    MC68HC908AS60(3J74Y)
    MC68HC08AZ60
    MC68HC08AZ60(2J74Y)
    MC68HC08AZ60[1J35D)
    MC68HC08AZ60A
    MC68HC08AZ604(1L87J)
    MC68HC9084Z604[3K85K]


    Freescale/NXP HCO8-Updated
    MC68HCx08AS/AZ32 CONFIG
    MC68HCx08AS/AZ60 CONFIG
    MC68HCx08AS/AZ32A CONFIG
    MC68HCx08AS/AZ60A CONFIG
    MC68HCx08AS/AZxxx EEPROM1+security
    MC68HCx08AS/AZxxx EEPROM2+security
    MC68HCx08AS/AZxxA EEPROM2+security
    MC68HC908AS32A_ FLASH+security
    MC68HC908AS32A_FLASH+secuity
    MC68HC908AS60_ FLASH+security
    MC68HC908AS60A_ FLASH+security
    MC68HC908AZ60_FLASH+security
    MC68HC9084Z60A FLASH+security
    MC68HC908GR4_ FLASH+secuity
    MC68HC908GR8_ FLASH+secuity
    MC68HC908GR16 FLASH+security
    MC68HC908LJ12 FLASH+security
    MC68HC908L J24_ FLASH+security
    MC68HC908LK24_ FLASH+secunty


    Freescale/NXP 9S08
    MC9S08AC/AW8(A) FLASH
    MC9S08AC/AW16(A) FLASH
    MC9S08AW32_ FL ASH
    MC9S08AW48_ FLASH
    MC9S08AW60_ FLASH
    MC9S08DZ16_ EEPROM
    MC9S08DZ16_ FLASH
    MC9S08DZ32_ EEPROM
    MC9S08DZ32_ FLASH
    MC9S08DZ48_ EEPROM
    MC9S08DZ48_ FLASH
    MC9S08DZ60_ EEPROM
    MC9S08DZ60_ FLASH-I
    MC9S08DZ60_ FL4SH-II
    MC9S08DZ96_ EEPROM
    MC9S08DZ96_ FLASH
    MC9S08DV96_ FLASH
    MC9S08DZ128_ EEPROM
    MC9S08DZ128 FLASH
    MC9S08DV128 FLASH
    MC9S08EL 16 EEPROM
    MC9S08EL 16 FLASH
    MC9S08EL 32 EEPROM
    MC9S08EL 32 FLASH
    MC9S08FL8 FLASH
    MC9S08FL 16 FLASH
    MC9S08JM8_ FLASH
    MC9S08JM16_ FLASH
    MC9S08JM32_ FLASH
    MC9S08JM60_ FLASH
    MC9S08SG4 FLASH
    MC9S08SG8 FLASH
    MC9S08SG16 FLASH
    MC9S08SG32 FLASH
    MC9S08SH4 FLASH
    MC9S08SH8 FLASH
    MC9S08SH16 FLASH
    MC9S08SH32 FLASH
    MC9S08SL 8 EEPROM
    MC9S08SL 8 FLASH
    MC9S08SL 16 EEPROM
    MC9S08SL 16 FLASH

    Freescale/NXP HC11
    MC68HC11A1[C11W]
    MC68HC11A8-old
    MC68HC11A8-new
    MC68HC11A8[AB95T)
    MC68HC11E1
    MC68HC11E9(4E28B)
    MC68HC11E9(W/Secunty 0F36W)
    MC68HC11EA9
    MC68HC11EA9(0D46J)
    MC68HC11EA9[1D47J]
    MC68HC11EA9[2D47J)
    MC68HC11F1(2F37E]
    MC68HC11F1E87J]
    MC68HC11K4
    MC68HC11K4(0E75J]
    MC68HC11K4(1E62H]
    MC68HC11K4[3E74J)
    MC68HC11KA4
    MC68HC11KA4(0E57S)
    MC68HC11KS2(1E59B)
    MC68HC11KS2(0H95B]
    MC68HC11KW1
    MC68HC11L6
    MC68HC11P2(3E74J)
    MC68HC11P2(1E53M]
    MC68HC11P2(0G10V]
    MC68HC11PA8
    MC68HC11PH8
    MC68HC11PH8[3D64J]
    MC68HC11PH8(0H30R)

    Freescale/NXP HC(S)12
    MC68HC12BL16 EEPROM
    MC68HC1 2B32 EEPROM
    MC68HC912BD32 EEPROM
    MC68HC912BD32_ FLASH
    MC68HC912D60_ EEPROM
    MC68HC912D60_ FLASH
    MC68HC912D60A_ EEPROM
    MC68HC912D60A_ FLASH
    MC68HC912Dx128_ EEPROM
    MC68HC912Dx128_ FLASH
    MC68HC912Dx128A _EEPROM
    MC68HC912Dx128A_FLASH
    MC9S12C16-FLASH
    MC9S12C32-FLASH
    MC9S12C64-FLASH
    MC9S12C96-FLASH
    MC9S12C128-FLASH
    MC9S12_ EEPROM
    MC9S12_ FLASH
    MC68HC912BD32-EEPROM-secured
    MC68HC912BD32-FLASH-secured
    MC68HC912D60-EEPROM-secured
    MC68HC912D60-FLASH-secured
    MC68HC912D60A-EEPROM-ecured
    MC68HC912D60A-FLASH-secured
    MC68HC912Dx128-EEPROM-secured
    MC68HC912Dx128-FLASH-secured
    MC68HC91 Dx128A-EEPROM-secured
    MC68HC912Dx128A-FLASH-secured
    MC9S12C64-FLASH-ecured
    MC9S12T64-FLASH
    MC9S12-EEPROM-secured
    MC9S12-FLASH-secured

    Freescale/NXP 9S12G
    MC9S12G(A/N)NVM
    MC9S12G(A/N)16 EEPROM
    MC9S12G(A/N)16_ P-FLASH
    MC9S12G(A/N)32_ EEPROM
    MC9S12G(A/N)32_ P-FLASH
    MC9S1 2G(A/N)48_ EEPROM
    MC9S12G[A/N)48_ P-FLASH
    MC9S1 2G(A)64_ EEPROM
    MC9S1 2G[A)64_ P-FLASH
    MC9S1 2G[A)96_ EEPROM
    MC9S12G(A)96_ P-FLASH
    MC9S12G(A)128 EEPROM
    MC9S12G(A)128 P-FLASH
    MC9S12G(A)192 EEPROM
    MC9S12G(A)192 _P-FLASH
    MC9S12G(A)240_ EEPROM
    MC9S12G(A)240_PFLASH

    Freescale/NXP 9S12HA/HY/P
    MC9S12HA32/48/64 D-FLASH
    MC9S12HY32/48/64_ D-FLASH
    MC9S12P32/64/96/128 D-FLASH
    MC9S12HY/HA32_ P-FLASH
    MC9S12HY/HA48_ P-FL4SH
    MC9S12HY/HA64_ P-FLASH
    MC9S12P32_ P-FLASH
    MC9S12P64_ P-FLASH
    MC9S12P96_ P-FLASH
    MC9S12P128_ P-FLASH
    Freescale/NXP 9S12HZ

    MC9S12HZ128/256 EEPROM
    MC9S12HZ128 FLASH
    MC9S12HZ256 FLASH

    Freescale/NXP 9S12VR
    MC9S12VR NVM
    MC9S12VR16 FLASH
    MC9S12VR32 FLASH
    MC9S12VR48 FLASH
    MC9S12VR64 FLASH
    MC9S12VR16 EEPROM
    MC9S12VR32 EEPROM
    MC9S12VR48 EEPROM
    MC9S12VR64 EEPROM

    Freescale/NXP 9S12XD
    MC9S12XDx128 EEPROM
    MC9S12XDx128_ FLASH
    MC9S12XD256_ EEPROM
    MC9S12XD256_ FLASH
    MC9S12XDT384_ EEPROM
    MC9S12XDT384_ FLASH
    MC9S1 2XDP512_ EEPROM
    MC9S12XDP512_ FLASH
    MC9S12XDx128-EEPROM-secured
    MC9S12XDx128-FLASH-secured
    MC9S12XD256-EEPROM-secured
    MC9S12XD256-FLASH-secured
    MC9S12XDT384-EEPROM-ecured
    MC9S12XDT384-FLASH-secured
    MC9S12XDP512-EEROM-secured
    MC9S12XDP512-FLASH-secured

    Freescale/NXP 9S12XE
    MC9S12XEG128 EEE
    MC9S12XEG128_ D-FLASH
    MC9S12XEG128_ P-FLASH
    MC9S12XET256_ EEE
    MC9S12XET256_ D-FLASH
    MC9S12XET256_ P-FLASH
    MC9S12XEQ384_ EEE
    MC9S12XEQ384_ D-FLASH
    MC9S12XEQ384_ P-FLASH
    MC9S12XEQ/XET512 _EEE
    MC9S12XEQ/XET512_ _D-FLASH
    MC9S12XEQ/XET512 P-FLASH
    MC9S12XEP768_ EEE
    MC9S12XEP768_ D-FLASH
    MC9S12XEP768_ P-FLASH
    MC9S12XEP100 EEE
    MC9S12XEP100_ D-FLASH
    MC9S12XEP100_ P-FLASH
    MC9S12XEG128_ EEE-Secured
    MC9S12XEG128_ D-FLASH-Secured
    MC9S12XEG128_ P-FLASH-Secured
    MC9S12XET256_ EEE Secured
    MC9S12XET256_ D-FLASH-Secured
    MC9S12XET256_ P-FLASH-Secured
    MC9S12XEQ384_ EEE Secured
    MC9S12XEQ384_ D-FLASH-Secured
    MC9S12XEQ384 P-FLASH-Secured
    MC9S12XEQ/XET512_ EEE Secured
    MC9S12XEQ/XET512_ D-FLASH-Secured
    MC9S12XEQ/XET512_P-FLASH-Secured
    MC9S12XEP768_ EEE-Secured
    MC9S12XEP768 D-FLASH-Secured
    MC9S12XEP768 P-FLASH-Secured
    MC9S12XEP100 EEE-Secured
    MC9S12XEP100 D-FLASH-Secured
    MC9S12XEP100 P-FLASH-Secured

    Freescale/NXP 9S12XF
    MC9S12XF EEPROM+securty
    MC9S12XF EEPROM from D_ FLASH+secuity
    MC9S12XF D-FLASH+secunty
    MC9S12XF128_ P-FLASH+security
    MC9S12XF256_ P-FLASH+security
    MC9S12XF384_ P-FLASH+secunity
    MC9S12XF512 P-FLASH+security

    Freescale/NXP 9S12XHY
    MC9S12XHY128 D-FLASH
    MC9S12XHY128_ P-FLASH
    MC9S12XHY256_ D-FLASH
    MC9S12XHY256_ P-FLASH

    Freescale/NXP 9S12XHZ
    MC9S12XHZ256 EEPROM
    MC9S12XHZ256_ FLASH
    MC9S12XHZ384_ EEPROM
    MC9S12XHZ384_ FLASH
    MC9S12XHZ512 EEPROM
    MC9S12XHZ512_ FLASH

    Freescale/NXP 9S12XS
    MC9S12XS64 D-FLASH
    MC9S12XS64_ P-FLASH
    MC9S12XS128_ D-FLASH
    MC9S12XS128_ P-FLASH
    MC9S12XS256 D-FLASH
    MC9S12XS256_ P-FLASH
    MC9S12XS128 D-FLASH-Secured
    MC9S12XS128_ P-FLASH-Secured
    MC9S12XS256 D-FLASH-Secured
    MC9S12XS256_ P-FLASH-Secured

    Freescale/NXP MPC5xx
    MPC
    MPC->Configuration-A
    MPC->Configuration-B
    MPC->External FLASH
    MPC->External EEPROM M95xxx

    Freescale/NXP MPC55xx
    MPC5515 CODE Flash
    MPC5516_ CODE_ Flash
    MPC5517_ CODE_ Flash
    MPC5554_ CODE_ Flash
    MPC5565_ CODE_ Flash
    MPC5566_ CODE_ Flash
    MPC551x_ Shadow
    MPC5554_ Shadow

    Freescale/NXP MPC560x
    MPC560xB/C/P DATA Fash
    MPC560x5_ DATA-Flash
    MPC5602B_ CODE Flash
    MPC5603B_ CODE_ FIash
    MPC5604B_ CODE_ Flash
    MPC5605B_ CODE_ FIash
    MPC5606B_ CODE_ FIash
    MPC5607B_ CODE_ Flash
    MPC5602C_ CODE_ FIash
    MPC5603C_ CODE_ Flash
    MPC5604C_ CODE _Flash
    MPC5604P CODE Flash
    MPC5602S CODE Flash
    MPC5604S CODE Flsh
    MPC5606S CODE Flash0
    MPC5606S CODE Flash1
    MPC560xB/C/P Code Flash Test
    MPC5608B/C/P- Gode Flash Shadow
    MP5S60B/CPTest Flash _lock
    MPC560xS Code Flash Test
    MPC5606S_ Code_ Flash_ Test1
    MPC560xS_ Code_ Flash_ Shadow
    MPC560xS_ Test_Flash_ Block

    Freescale/NXP MPC563x
    MPC/SPC5632M Flash0
    MPC/SPC5632M Flash1
    MPC/SPC5633M Flath0
    MPC/SPC5633M Flash1
    MPC/SPC5634M Flash0
    MPC/SPC5634M Flash1
    MPC/SPC5634M Flash2
    MPC/SPC563xM Shadow
    MPC/SPC563xM OTP0
    MPC/SPC563xM OTP1
    MPC/SPC563xM OTP2
    Freescale/NXP MPC564x
    MPC/SPC5642A-CODE Flash
    MPC/SPC5644A-CODE Flash
    MPC/SPC564XA-Shadow A
    MPC/SPC5644A-Shadow B
    National
    CR16MCS9V
    CR16MCS9V-KLine
    Renesas M32C
    M308xxx-data Flash
    M30853FW Code Flash
    M30853FH Code Flash
    M30853FJ Code Flash
    M30855FW Code Flash
    M30855FH Code Flash
    M30855F3 Code Flash
    M30880FW Code Flash
    M30880FH Code Flash
    M30880FJ Code Flash
    M30882FW Code Flash
    M30882FH code flash
    M30882FJ Code Flash
    Renesas R32C
    R5F6452X EEPROM
    R5F6452X EEPROM ECC
    R5F6452x Data Flash
    R5F64524 Code Flash
    R5F64525 Code Flash


    Renesas RH850
    R7F01A223-Data Flash
    R7F01A223-Code Flash
    R7F7010xx-Data Flash
    R7F7014xx-Data _Flash
    R7F7010xx-Code Flash-256kB
    R7F7010xx-Code Fash-384kB
    R7F7010xx-Code Flash-512B
    R7F7010xx-Code Flash-768KB
    R7F7010xx Code Flash-1024B
    R7F7010xx-Code Flash-1536kB
    R7F7010xx-Code Flash-2048kB
    R7F7014xx-Code Flash-2048KB
    R7F7014xx-Code Flash-3840kb
    R7F7014xx-Code Flach-4096kb
    R7F7014xx-Code Flash-5120kb
    Renesas RL78/G13
    R5F 100xxx Data Flash 4b
    R5F 100xxx Data Flash 8kb
    R5F 100/101XAx Code Flash 16kb
    R5F100/10 1xCx Code Flash 32kb
    R5F100/10 1xDx Code Flash 48kb
    R5F100/101xEx_Code_Flash_64kb
    R5F 100/101xFx_Code_Flash_96kb
    R5F100/101xGx_Code_Flash_128kb
    R5F100/101xhx_Code_Flash_192kb
    R5F100/101×Jx_Code_Flash_256kb
    R5F100/101xKx_Code_Flash_384kb
    R5F100/101xLx_Code_Flash_512kb

    Renesas SuperH
    64F7055F
    R4F70580S

    Renesas V850-UART
    uPD70F33xx Data Flash(UART)
    uPD70F36xx Data Flash[UART)
    uPD70F3344/54/64_ Code_ FIash(UART)
    uPD70F3345/55/65_ Code_ FIash(UART)
    uPD70F3346/56/66_ Code_ FIash(UART)
    uPD70F3347/57/67_ Code_ FIash(UART)
    uPD70F3348/58/68_ Code_ FIash(UART)
    uPD70F3370_ Code_ Flash(UART)
    uPD70F3371_ Code_ Flash(UART)
    uPD70F3372_ Code_ Flash(UART)
    uPD70F3373_ Code_ Flash(UART)
    uPD70F3374_ Code_ Flash(UART)
    uPD70F3375_ Code_ Flash(UART)
    uPD70F3376_ Code_ Flash(UART)
    uPD70F3377_ Code_ Flash(UART)
    uPD70F3378_ Code_ Flash(UART)
    uPD70F3379_ Code_ FIash(UART)
    uPD70F3380_ Code_ Flash(UART)
    uPD70F3381_ Code_ Flash(UART)
    uPD70F3382_ Code_ FIash(UART)
    uPD70F3383_ Code_ Flash(UART)
    uPD70F3384_ Code_ FIash(UART)
    uPD70F3385_ Code_ Flash(UART)
    uPD70F3610_ Code_ FIash(UART)
    uPD70F3611_ Code_Flash(UART)
    uPD70F3612_ Code_ Flash(UART)
    uPD70F3613_ Code_ Flash(UART)
    uPD70F3614_ Code_ Flash(UART)
    uPD70F3615_ Code_ FIash(UART)
    uPD70F3616_ Code_FIash(UART)
    uPD70F3617_ Code_ Flash(UART)
    uPD70F3618_ Code_ FIash(UART)
    uPD70F3619_ Code_ Flash(UART)
    uPD70F3620_ Code_ FIash(UART)
    uPD70F3621_ Code_ Flash(UART)
    uPD70F3622_ Code_ Flash(UART)
    uPD70F3623_ Code_ FIash(UART)
    uPD70F3624 _Code_ Flash(UART)
    uPD70F3625_ Code_ FIash(UART)
    uPD70F3626_ Code_ Flash(UART)
    uPD70F3627_ Code_ Flash(UART)
    uPD70F3628_ Code_ FIash(UART)
    uPD70F3629_ Code_ FIash(UART)
    uPD70F3630_Code_ Flash(UART)
    uPD70F3631_ Code_ FIash(UART)
    uPD70F3632_ Code_ Flash(UART)
    uPD70F3633_ Code_ Flash(UART)
    uPD70F3634_ Code_ FIash(UART)
    uPD70F3635_ Code_ FIash(UART)
    uPD70F3636_ Code_ Flash(UART)
    uPD70F3637_ Code_ Flash(UART)
    uPD70F3638_ Code_ FIash(UART)

    Renesas V850-SPI
    uPD70F33xx Data Flash(SPI)
    uPD70F346x_ Data Flash(SPI)
    uPD70F347x_ Data_ FIash(SPI)
    uPD70F36xx_ Data FIash(SPI)
    uPD70F3231 Code_Flash(SPl)
    uPD70F3344/54/64_ Code_ Flash(SPI)
    uPD70F3345/55/65_ Code_ Flash(SPI)
    uPD70F3346/56/66_ Code_ Flash(SPI)
    uPD70F3347/57/67_ Code_ Flash(SPI)
    uPD70F3348/58/68_ Code_ Flash(SPI)
    uPD70F3370_Code_ Flash(SPI)
    uPD70F3371_Code_ Flash(SPI)
    uPD70F3372_Code_ Flash(SPI)
    uPD70F3373_Code_ Flash(SPI)
    uPD70F3374_Code_ Flash(SPI)
    uPD70F3375_Code_ Flash(SPI)
    uPD70F3376_Code_ Flash(SPI)
    uPD70F3377_Code_ Flash(SPI)
    uPD70F3378_Code_ Flash(SPI)
    uPD70F3379_Code_ Flash(SPI)
    uPD70F3380_Code_ Flash(SPI)
    uPD70F3381_Code_ Flash(SPI)
    uPD70F3382_Code_ Flash(SPI)
    uPD70F3383_Code_ Flash(SPI)
    uPD70F3384_Code_ Flash(SPI)
    uPD70F3385_Code_ Flash(SPI)
    uPD70F3464_Code_ Flash(SPI)
    uPD70F3465_Code_ Flash(SPI)
    uPD70F3466_Code_ Flash(SPI)
    uPD70F3470_Code_ Flash(SPI)
    uPD70F3471_Code_ Flash(SPI)
    uPD70F3472_Code_ Flash(SPI)
    uPD70F3610_Code_ Flash(SPI)
    uPD70F3611_Code_ Flash(SPI)
    uPD70F3612_Code_ Flash(SPI)
    uPD70F3613_Code_ Flash(SPI)
    uPD70F3614_Code_ Flash(SPI)
    uPD70F3615_Code_ Flash(SPI)
    uPD70F3616_Code_ Flash(SPI)
    uPD70F3617_Code_ Flash(SPI)
    uPD70F3618_Code_ Flash(SPI)
    uPD70F3619_Code_ Flash(SPI)
    uPD70F3620_Code_ Flash(SPI)
    uPD70F3621_Code_ Flash(SPI)
    uPD70F3622_Code_ Flash(SPI)
    uPD70F3623_Code_ Flash(SPI)
    uPD70F3624_Code_ Flash(SPI)
    uPD70F3625_Code_ Flash(SPI)
    uPD70F3626_Code_ Flash(SPI)
    uPD70F3627_Code_ Flash(SPI)
    uPD70F3628_Code_ Flash(SPI)
    uPD70F3629_Code_ Flash(SPI)
    uPD70F3630_Code_ Flash(SPI)
    uPD70F3631_Code_ Flash(SPI)
    uPD70F3632_Code_ Flash(SPI)
    uPD70F3633_Code_ Flash(SPI)
    uPD70F3634_Code_ Flash(SPI)
    uPD70F3635_Code_ Flash(SPI)
    uPD70F3636_Code_ Flash(SPI)
    uPD70F3637_Code_ Flash(SPI)
    uPD70F3638_Code_ Flash(SPI)
    uPD70F3639_Code_ Flash(SPI)

    Renesas V850E2-FLURORTX
    uPD70F3548/49/50 Data Flash
    uPD70F3551/52/53_ Data Flash
    uPD70F3554_ Data Flash
    uPD70F3555/56_ Data Flash
    uPD70F3557/58_ Data Flash
    uPD70F3559/60_ Data Flash
    uPD70F3570/71/72_ Data Flash
    uPD70F3573/74/75_ Data Flash
    uPD70F3576/77/78/79/80_ Data FIash
    uPD70F3582/83/84/85_ Data _Flash
    uPD70F 4000/01/02 Data_ Flash
    uPD70F 4003/04/05 Data_ Flash
    uPD70F4006_ Data Flash
    uPD70F4007/08_ Data Flash
    uPD70F4009/10_ Data Flash
    uPD70F4011/12_ Data Flash
    uPD70F3548_ Code_ Flash
    uPD70F3549_ Code_ Flash
    uPD70F3550_ Code_ Flash
    uPD70F3551_ Code_ Flash
    uPD70F3552_ Code_ Flash
    uPD70F3553_ Code_ Flash
    uPD70F3554_ Code_ Flash
    uPD70F3555_ Code_ Flash
    uPD70F3556_ Code_ Flash
    uPD70F3557_ Code_ Flash
    uPD70F3558_ Code_ Flash
    uPD70F3559_ Code_ Flash
    uPD70F3560_ Code_ Flash
    uPD70F3570_ Code_ Flash
    uPD70F3571_ Code_ Flash
    uPD70F3572_ Code_ Flash
    uPD70F3573_ Code_ Flash
    uPD70F3574_ Code_ Flash
    uPD70F3575_ Code_ Flash
    uPD70F3576_ Code_ Flash
    uPD70F3577_ Code_ Flash
    uPD70F3578_ Code_ Flash
    uPD70F3579_ Code_ Flash
    uPD70F3580_ Code_ Flash
    uPD70F3581_ Code_ Flash
    uPD70F3582_ Code_ Flash
    uPD70F3583_ Code_ Flash
    uPD70F3584_ Code_ Flash
    uPD70F3585_ Code_ Flash
    uPD70F4000_ Code_ Flash
    uPD70F4001_ Code_ Flash
    uPD70F4002_ Code_ Flash
    uPD70F4003_ Code_ Flash
    uPD70F4004_ Code_ Flash
    uPD70F4005_ Code_ Flash
    uPD70F4006_ Code_ Flash
    uPD70F4007_ Code_ Flash
    uPD70F4008_ Code_ Flash
    uPD70F4009_ Code_ Flash
    uPD70F4010_ Code_ Flash
    uPD70F4011_ Code_ Flash
    uPD70F4012_ Code_ Flash

    SPC560/SPC56A
    SPC560B40Lx_ DATA flash
    SPC560B50Lx_ DATA flash
    SPC560B54Lx_ DATA flash
    SPC560B60Lx_ DATA flash
    SPC560B64Lx_ DATA flash
    SPC560C40Lx_ DATA flash
    SPC560C50Lx_ DATA flash
    SPC560P44Lx_ DATA flash
    SPC560P50Lx_ DATA flash
    SPC564P54Lx_ DATA flash
    SPC564P60Lx_ DATA flash
    SPC560B40Lx_ CODE_ flash
    SPC560B50Lx_ CODE_ flash
    SPC560B54Lx_ CODE_ flash
    SPC560B60Lx_ CODE_ flash
    SPC560B64Lx_ CODE_ flash
    SPC560C40Lx_ CODE_ flash
    SPC560C50Lx_ CODE_ flash
    SPC560P44Lx_ CODE_ flash
    SPC560P50Lx_ CODE_ flash
    SPC560AP54Lx_ CODE_ flash
    SPC560AP60Lx_ CODE_ flash
    SPC560Bxx_ code_ flash test
    SPC560Bxx_ code_ flash_ shadow
    SPC560Bxx_ test flash. _block
    SPC560Cxx_ code_ flash test
    SPC560Cxx_ code_ flash _shadow
    SPC560Cxx_ test flash_ block

    SPC564
    SPC564A70_ code_ flash
    SPC564A80_ code_ flash
    SPC564Axx_ Shadow A
    SPC564A80_ Shadow B


    ST7
    ST72321(R/AR)6
    ST72F321(R/AR)6
    ST72321(R/AR/J)7
    ST72F321(R/AR/J)7
    ST72321(R/AR/J)9
    ST72F321(R/AR/J)9
    ST72521B(R/AR)6
    ST72F521(R/AR)6
    ST72521B(M/R/AR)9
    ST72F521(M/R/AR)9

    ST10
    ST10F168
    ST10F168> ST24C64
    ST10F269
    ST10F272
    ST10F275
    ST10F276
    ST10F280

    TEXAS Instruments
    TMS370C002A
    TMS370C010A
    TMS370C012A
    TMS370C020A
    TMS370C022A
    TMS370C032A
    TMS370C040A
    TMS370C042A
    TMS370C050A
    TMS370C052A
    TMS370C056A
    TMS370C058A
    TMS370C256A
    TMS374C003APQQ
    TMS374CD13APQQ

    ZGS 001
    A 164 540 56 62
    MC9S12DT256>EEPROM
    MC9S12DT256-FLASH
    MC9S12DT256- External FLASH(Am29F400BT)

    A 169 540 69 45
    MC9S12DT256>EEPROM
    MC9S12DT256-FLASH
    MC9S12DT256- External FLASH(Am29F800BT)

    A 220 445 19 00
    MC9S12DT256>EEPROM
    MC9S12DT256-FLASH
    MC9S12DT256- External FLASH(Am29F800BT)

    A 211 445 25 00
    MC9S12DT256>EEPROM
    MC9S12DT256-FLASH
    MC9S12DT256- External FLASH(Am29F800BT)

    A 211 540 25 45
    SC68HC912DG128A->EEPROM
    SC68HC912DG128A->FLASH
    SC68HC912DG128A->Extemal FLASH[29F400TC]

    A 211 540 29 45
    SC68HC912DG128A->EEPROM
    SC68HC912DG128A->FLASH
    SC68HC912DG128A->Extemal FLASH[Am29F400BT]

    A 211 540 35 45
    MC9S12DT256->EEPROM
    MC9S12DT256->FLASH
    MC9S12DT256- >External FLaSH[Am29F800BT)

    TV
    BMW
    E60 E63 E64

    Other ECU
    Audi
    BCM2_ uPD70F3381 Code Flash
    BCM2_ uPD70F381_ Data_ Flash

    BMW
    FRM EEE
    FRM_ P-FLASH

    Chevrolet
    AVEO ECM ECU Code Flsh

    Chrysler-Dodge-Jeep
    BCM.GRAND CHEROKEE WK 2014 Fash
    BCM-GRAND CHEROKEE _WK_ 2014 _Shadow
    Chrysler TIPM_ Flash
    Chrysler TIPM_ Data Flash
    NCG3-MPC565
    NCG3-MPC565-Configuration-A
    NCG3-MPC565->Configuration-B
    NCG3-MPC565-M95080
    NCG4-MPC5554_ Code_ Flash
    NCG4-MPC5554_ Shadow
    NCG4-MPC554-ST95320

    Citroen
    ECU_ SAK-XC164CS-32F
    ECU_ XC164CS-32F->24C16

    FORD
    FORD BCM CODE Flash
    FORD_ BCM DATA Flash

    GM ECU
    SAF-XC164CS-16F

    HONDA Bikes
    CB650F 2015 Code Flash
    CB650F 2015_ Data Flash

    Renault Clio III
    EPS ST10F269
    EPS_ ST10F269- 24C16
    EPS_ XC164CS-32F
    EPS_ XC164CS-32F- 24C16

    SUBARU
    TCM 2009 64F7055F

    TRIUMPH
    Chassis_ Control Unit Flash0
    Chassis_ Control Unit Flash1
    Chassis_ Control Unit Flash2

    VW
    VW GearBox R4F70580S

    XP8000E_ XET256
    XP8000E XET256 EEE
    XP8000E XET256_ P-FLASH

    VOLVO
    VOLVO_ CCM Flash
    VOLVO_ ECU_ 64F7055
    VOLVO_ ECU_ R4F70580

    XPROG-M 6.12 Reviewes:

    Review 1:
    work perfect today
    cas 3 read ok
    jcb tacho HC908LJ12 ok
    Colt airbag hc12d64 ok

    Review 2:
    I work on that 6.12 for two weeks. It doesn't work on VM, but I installed in on 64bit Win 10, works properly, but this chinese adobe is not working.
    Xprog is working like a charm, the only drawback is that I had to copy the connection diagrams and rename the files to have easy access, as without adobe there is no diagrams within the software.
    So if opening pdfs manually is not a problem to You, than it's a good tool

    Review 3:
    all opened authorization work fine.


    XPROG-M 6.12 Package List:

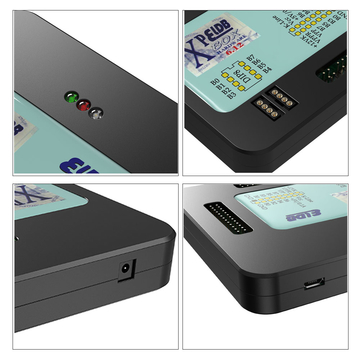

    1pc x XPROG-Box Hardware (Aluminum Enclosure) .
    24pcx Adapters Set
    1pc x USB Cable.
    1pc x USB Dongle
    1pc x CD with XPROG-Box Software (V5.84) Shipping Method and Delivery Time:

    US, UK, Czech and Russia Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.
    US Check: Ship from US
    UK Check: Ship from UK
    EU Check: Ship from Czech
    Russia Check: Ship from RU
    DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. If address belongs to remote area, customer will need to pay remote handling cost or we can change to ship by EMS. Please remember to leave message if you have any special requirement.
    Yanwen Express: 7-10 working days. No Tax or remote cost for European Countries.
  • Customer Reviews
  • Customer Reviews
    • Write a Review
      Average Rating:
      {{stardata.star}}
      based on {{comment.count}} reviews
    • {{comment.star5}}%
      {{comment.star4}}%
      {{comment.star3}}%
      {{comment.star2}}%
      {{comment.star1}}%
    No data
    Latest Version Xprog V6.12 XPROG-M ECU Programmer With USB Dongle
    {{comments.user.name}}
    Verified Purchase
    {{comments.rating}}.0
    {{comments.date_added}}
    {{comments.topic}}
    {{comments.text}}
    Showing {{comments.replies.length}} comment

    {{reply_items.text}}By {{reply_items.author}}

  • Questions & Answers
  • Questions & Answers
    Ask a Question
    No data
    Tags:
    Your Browsing History
    {{item.displayed_price.rate_of_discount}} %
    OFF

    {{item.detail.name}}

    {{item.displayed_price.unit_prefix}} {{item.displayed_price.min}} {{item.displayed_price.unit_prefix}}  {{item.displayed_price.original_min}}

    Currency: USD
    USD - US Dollar
    EUR - Euro
    GBP - British Pound
    CAD - Canada Dollars
    AUD - Australia Dollars
    JPY - Japan Yen
    SEK - Sweden Kronor
    NOK - Norway Kroner
    IDR - Indonesia Rupiahs
    BRL - Brazil Reais
    RUB - Russia Rubles
    THB - Thailand Baht
    AED - Arab Emir. Dirham
    Need Help?
    Chat live with us
    Request Quote
    Want to call?

    18588965631

    Skype Me
    Track Order
    Want to check the status of your order? You can put in your order number and click track order to find the tracking information or login your account to check the detail information.
    order number
    • order number
    • tracking number
