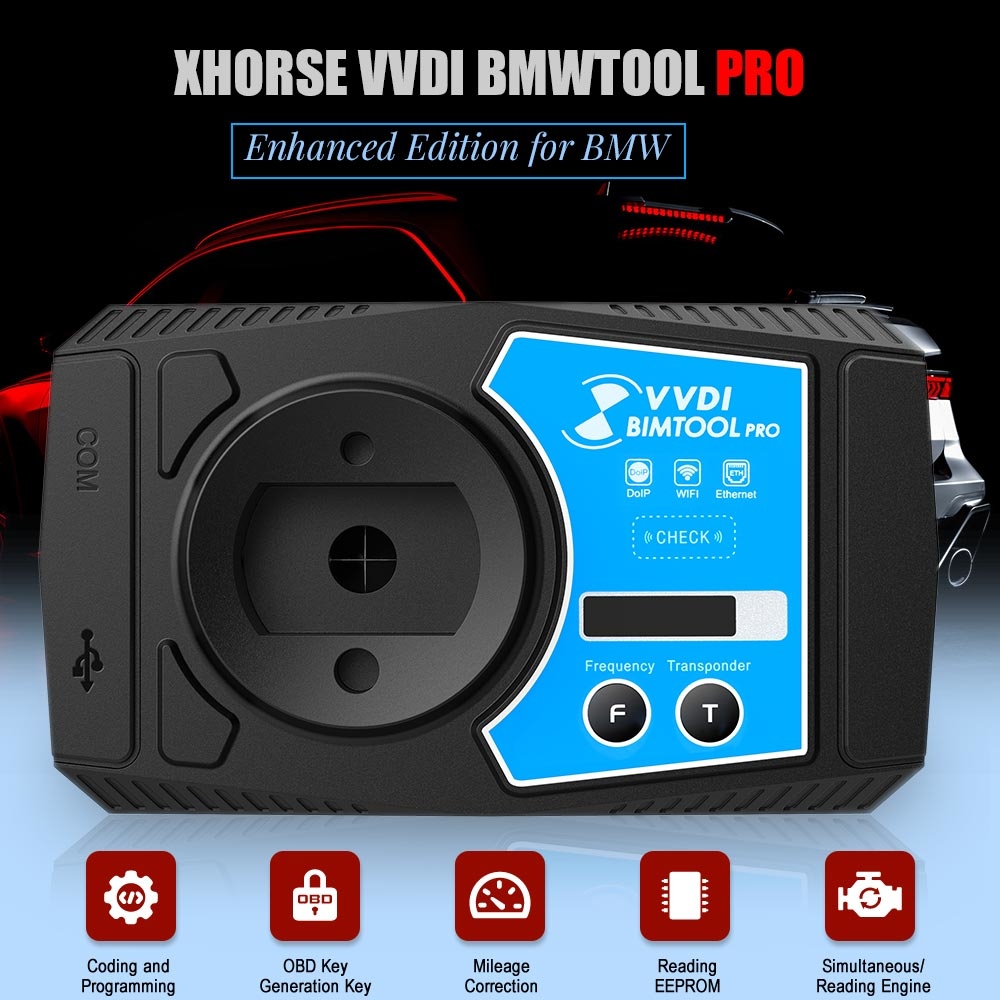

V1.7.3 Xhorse VVDI BIMTool Pro Enhanced Edition Update Version of VVDI BMW

XHORSE VVDI BIMTOOL PRO Update Version of VVDI BMW Tool

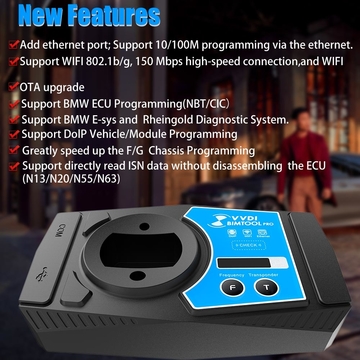

Highlights of VVDI BIMTOOL Pro:

1. Add Ethernet Port
Aside of USB port, which will speed up the programming / coding, usually it will only take several minutes instead of dozens of hours when using the USB cable.

2. Add Wifi Connection (WIFI 802.1b/g, 150 Mbps high-speed connection, and WIFI OTA upgrade)
When upgrading the machine firmware, you can connect the WIFI.

3. Operating System: Compatible with WIN7 8 10 etc, no computer operation system limitation.
Free Download V1.7.3 VVDI BMW Tool Software

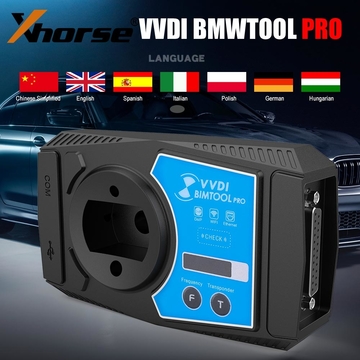

4. Language: English, Italian, Spanish, Deutsch, Hungarian, Polish etc.

5. Support BMW ECU Programming(NBT/CIC), BMW E-Sys and Rhelngold Diagnostic System, able to replace the specialized devices, and greatly speed up the F/G Classis Programming.
(Being connected via the network cable)

6. Support DolP Vehicle/ Module Programming

7. Support directly read ISN data without disassembling the ECU (N13/N20/N55/N63)



VVDI BIMTOOL Pro Using Notice:

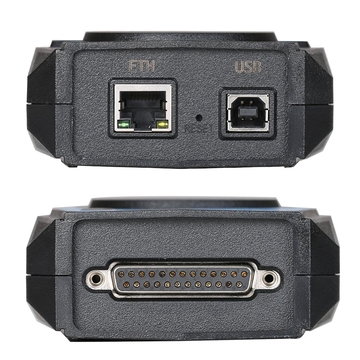

1. Please don't use the Internet Port and USB Port at the same time.
For FEM/BDC Programming using the USB Port connect is ok; Others Programming you can connect the Internet Port.

2. When connect the port with PC, first it will display"Booting", after 20 secs it will display as "BMW", then it means the connect ok.

Xhorse VVDI BIMTool Pro Functions:

1. E-Series programming, coding, DTCs
1). Support autodetect car chassis
2). Support scan all car units
3). Support calculate all configuration units
4). Support read/write car configuration(FA)
5). Support input HW/ZB number to programming
6). Support calculate default coding from FA
7). Support edit detail coding information, change car config
8). Support many languages DTC code

2. F-Series programming, coding, DTCs
1). Support autodetect car chassis
2). Support read/write car configuration(FA)
3). Support calculate programming files from unit, car, whold database
4). Support calculate default coding from FA
5). Support edit detail coding information, change car config
6). Support detail special function list from coding
7). Support many languages DTC code

3. CAS1/CAS2/CAS3/CAS3+/CAS3++ISTAP OBD key learning
1). Support read key information, write key inforamtion
2). Support key learning
3). Support read/write EEPROM
4). Support read ECU/gearbox synchronize codes
5). Support write ECU/gearbox synchronize codes
6). Support synchronize ECU and CAS
7). Support synchronize CAS and ELV
8). Support read ISN via OBDII
9). Support reset KM via OBDII
10). Support disable key/enable key

4. CAS4(1L15Y)/CAS4+(5M48H) OBD key learning
1). Support read CAS encrypt key via OBDII
2). Support key learning via programmer and via ignition switch
3). Support disable key/enable key
4). Support erase key position
5). Support reset KM via OBDII
6). Support read ISN via OBDII
7). Support backup/restore coding
8). Support update original CAS4 file

5. FEM/BDC OBD key learning
1). Support read FEM/BDC encrypt key via OBDII
2). Support key learning via programmer and via ignition switch
3). Support disable key/enable key
4). Support erase key position
5). Support reset KM via OBDII
6). Support read ISN via OBDII
7). Support backup/restore coding
8). Support exchange used FEM/BDC
9). Support close/open transport mode
10). Support reset ECU lock
11). Support switch on ignition without working key

6. CAS EEPROM dump key learning
1). Support EWS1, EWS2, EWS3, EWS4, CAS1(0K50E), CAS2(2K79X), CAS3(0L01Y), CAS3+(0L15Y), CAS3++ISTAP(0L15Y, 0M23S)
2). Support prepare dealer key via programmer
3). Support disable key/enable key
4). Support read ISN from working key

7. 8HP Gearbox renew
1). Support clear ISN in 8HP gearbox
2). Support backup/restore coding
3). Support reset adaptation information

8. Read synchronize code from E-Series ECU: Support MEV9N46L, MSV70, MSS60, MS450, N62 etc

9. Read E-Series/F-Series ECU ISN via OBDII
1). Support MSV80, MSV801, MSD80, MSD81, MSD802, MSD812, MSD851
2). Support MED17xx/MVD17xx/MEVD17xx/MV1722
3). Support MED172/MEV17N46/ME17N45
4). Support MEVD172Y/MEVD172/MEVD1725/B38/X63TU

10. Support exchange ECU and CAS
1). Support write ECU ISN via OBDII
2). Support write ECU VIN via OBDII
3). Support change ECU ISN and VIN with EEPROM dump
4). Support chagne CAS1/CAS2/CAS3/CAS4 ISN and VIN with EEPROM dump

11. CAS repair(OBD&EEPROM)
1). Support repair ISTAP CAS
2). Support repair CAS EEPROM(Service mode EEPROM), you can start engine after repair the file(CAS1,CAS2,CAS3,CAS3+,CAS3++ISTAP)

12. CAS3+/CAS4+ lost all dump file support restore ISN and VIN
1). Support CAS3+(1L15Y) encrypt version
2). Support CAS3++(ISTAP) version
3). Support CAS4+(5M48H) version

13. File KM calibration
1). Support EWS1, EWS2, EWS3, EWS4
2). Support CAS1(0K50E), CAS2(2K79X), CAS3(0L01Y), CAS3+(0L15Y, 0M23S)
3). Support CAS4(1L15Y), CAS4(5M48H, 1N35H)
4). Support E-Series dashboard EEPROM(M35080)
5). Support F-Series dashboard EEPROM(35160, 35128)

14. Unlock HITAG2 key: Support lock hitag2 key made from BMW TOOL via programmer

15. EWS3/EWS4 can read EEPROM, write EEPROM via CAS PLUG

For more details, please read the User Manual.



BMW BIMTool Pro Latest Update Information:

BMW BIMTool Pro V1.7.1 Date 2021-04-22
Require firmware V1.6.4
1. Support program not support unlock FEM/BDC directly, After programming can do unlock function
2. Bugfix for E-Series programming
3. Improvement for F/G-Series programming and coding
4. Bugfix

BMW BIMTool Pro V1.7.1 Date 2021-04-06
Require firmware V1.6.4
1. Bugfix for Read 6HP EGS ISN(E-series)
2. Add many new functions for coding
3. Improvement for F/G series programming and coding
4. Bugfix

BMW BIMTool Pro E /F Chassis Programming & Coding:

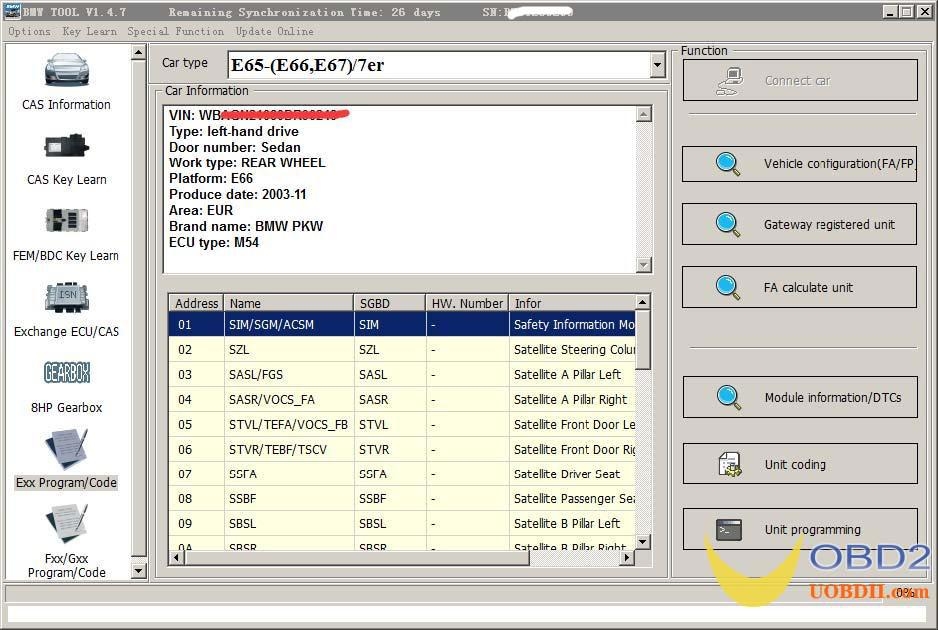

●Program / Code BMW Exx

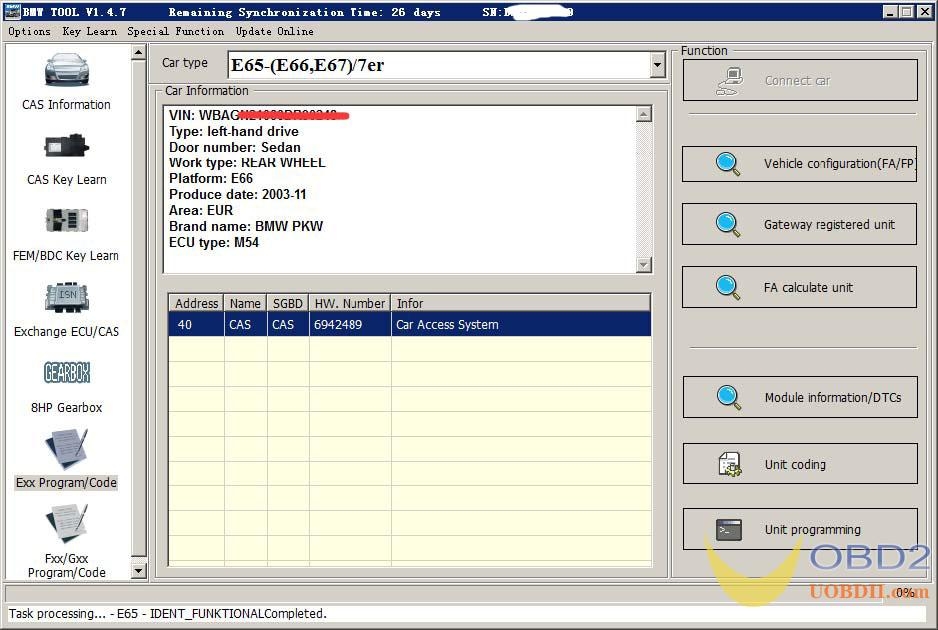

1. Connect Car
Can auto detect vehicle model, read module information, support chassis: E36, E38, E39, E46, E52, E53, E60, E63, E64, E65, E66, E67, E70, E71, E72, E83, E85, E86, E89, E90, E91, E92, E93, K1X, K24, KH2, R50, R52, R53, R55, R56, R57,
RR1,.etc chassis

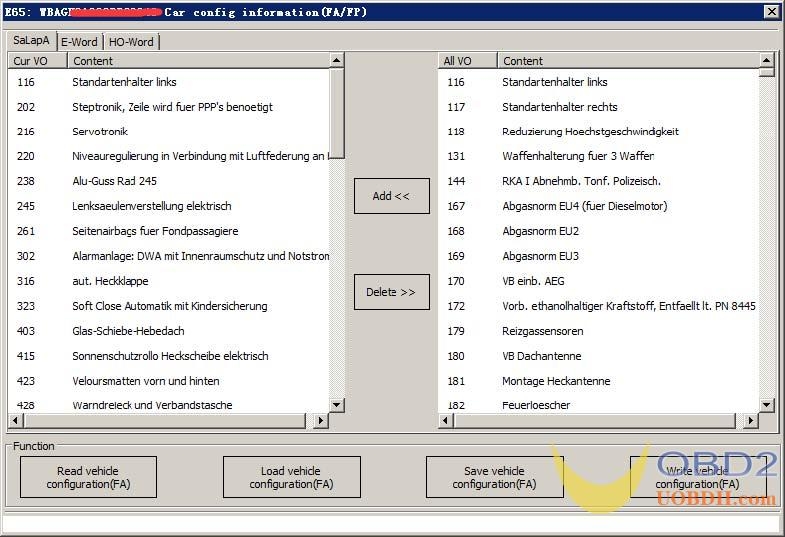

2. Read and write Vehicle configuration(FA/FP)
Can read the configuration information inside of vehicle module, and to change the vehicle configuration information for replacing second-hand module.



3. Registered unit information from gateway / Calculate adaptive control unit
Read registered unit information from gateway
Calculate adaptive control unit-calculate all control units of the current vehicle based on configuration information

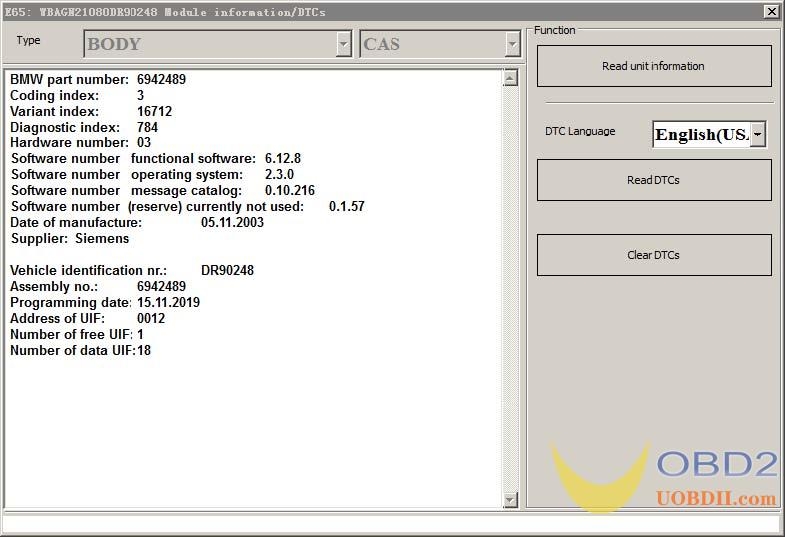

4. Module information/DTCs
Read the specific information of selected module, then read and clear DTCs .,etc

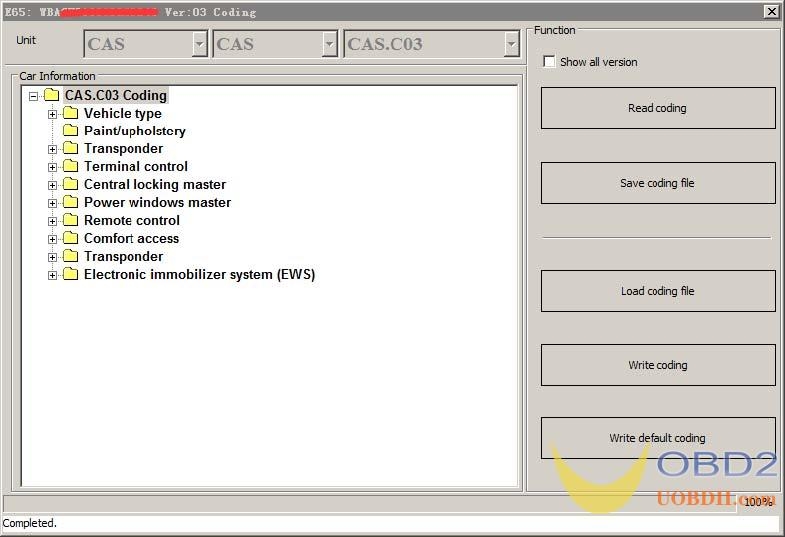

5. Unit coding
Read the coding information of selected unit, save coding, load coding, write coding and calculate the default coding based on the vehicle configuration information etc.

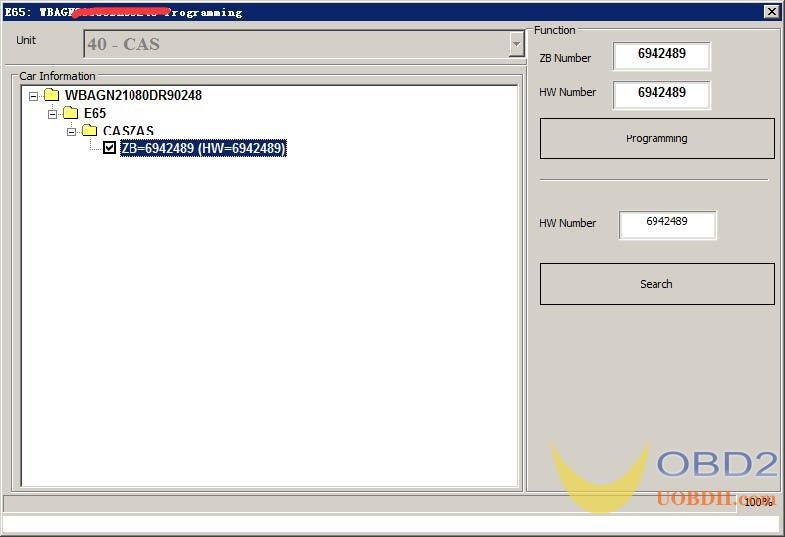

6. Module programming
According to the hardware version number and ZB version number in the current module, search for the supported programming files and perform programming functions

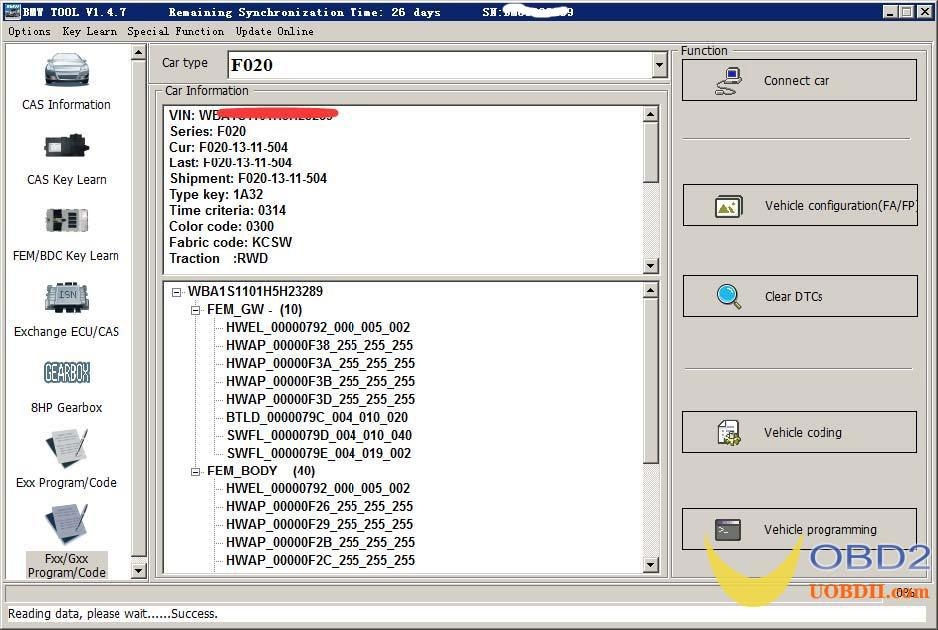

●Program / Code Fxx / Gxx
1. Connect to car
Auto detect vehicle model, and read the information inside of module.

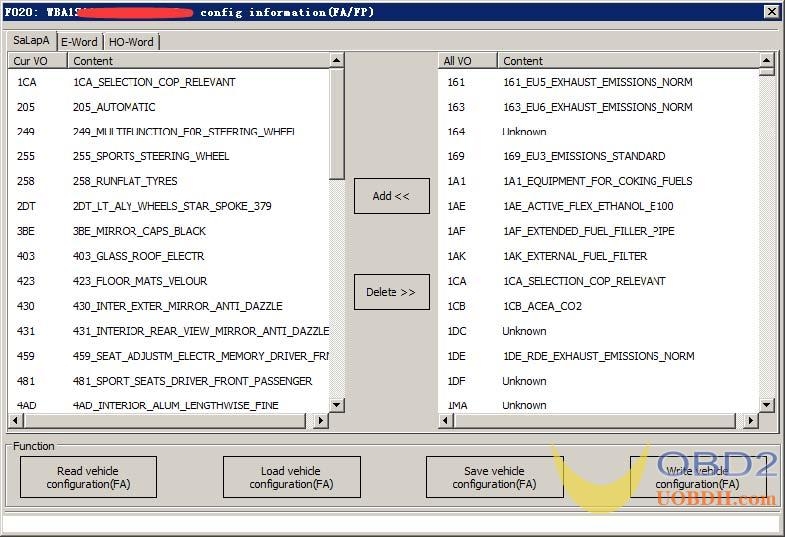

2. Read & write vehicle configuration(FA/FP)
Can read the vehicle configuration information inside of module, and change the vehicle configuration information for replacing second hand module.

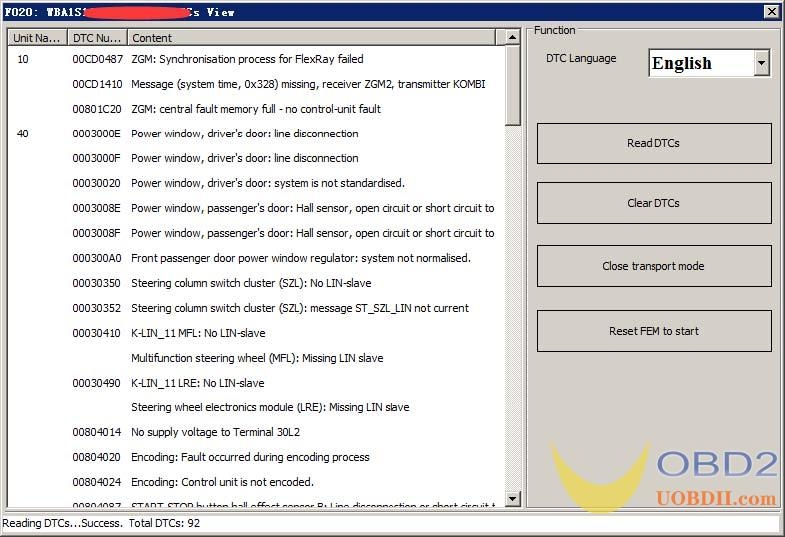

3. Read / Clear DTCs
Can read and clear DTCs for vehicle maintenance.

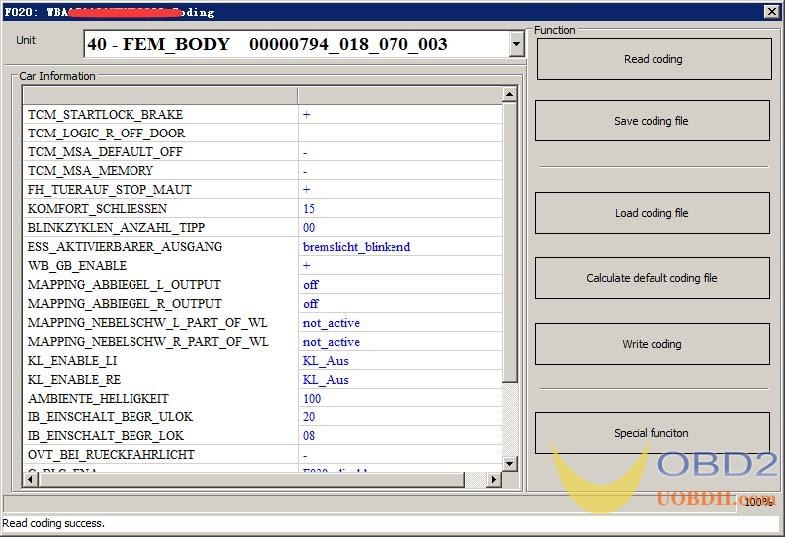

4. Vehicle coding
Can read out the coding information inside of module, the user can change the corresponding value as required to realize some configuration functions.



Features:
1). Read the coding: read the code information in the module
2). Save coding file: Save the coding information to a file
3). Load coding file: Load the coding file that is saved.
4). Calculate the default coding: If the default coding of module is lost, it will be calculated according to the vehicle configuration information
5). Write coding: write the coding to the module
6). Hide function: We have re-organized some of the frequently-used configuration changes option, see the figure below:

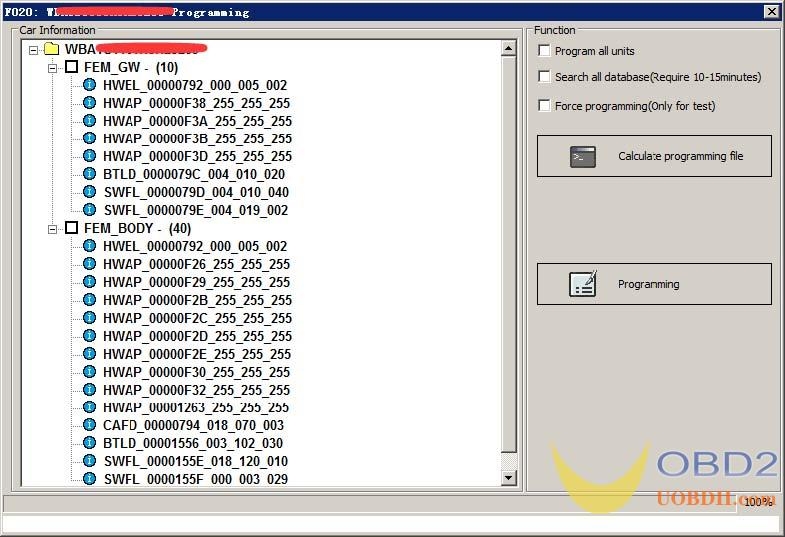

5. Vehicle programming
From vehicle configuration information to calculate the related module flash information, and write to module.

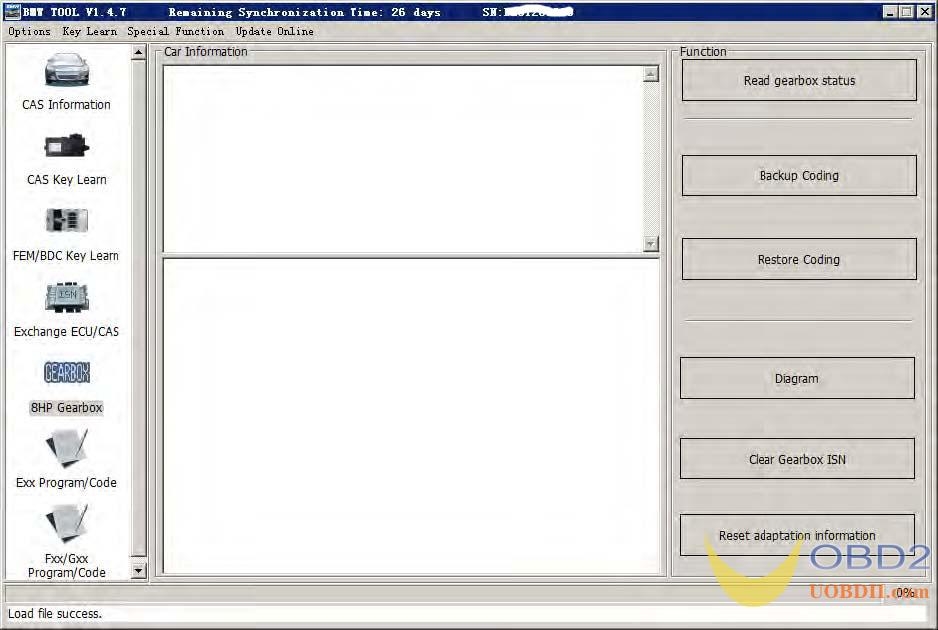

BMW BIMTool Pro Gearbox (Clear and Reset):
Function description:
1. Read gearbox status: Support read 8HP gearbox status, module is brand new or not,.etc
2. Backup Coding: Backup gearbox coding
3. Restore Coding: Restore gearbox coding
4. Clear Gearboxs ISN: Support clear 2nd-hand used gearbox all inside information, let this module become as brand new
5. Reset adaption information: Reset gearbox inside adaption information, let it back to original status

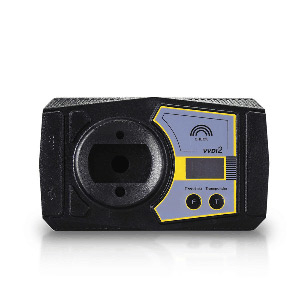

VVDI BIMTOOL Pro, VVDI BMW Tool and VVDI2 Comparison Table:

	VVDI BIMTOOLPro	VVDI BMW Tool	VVDI2
Functions	Locksmith, Programming, Coding	Locksmith, Programming, Coding	Locksmith
Update	Software Online for free Firmware use "update kit" update for free	Software Online for free Firmware use "update kit" update for free	Software Online for free Firmware use "update kit" update for free
Support Programming System	EWS to CAS (1, 2, 3, 3++ 4,4+) and the latest FEM/BDC system	EWS to CAS (1, 2, 3, 3++ 4,4+) and the latest FEM/BDC system	EWS to CAS (1, 2, 3, 3++ 4,4+)
Progrogramming Function	Support Can and DOIP	Support Can	No

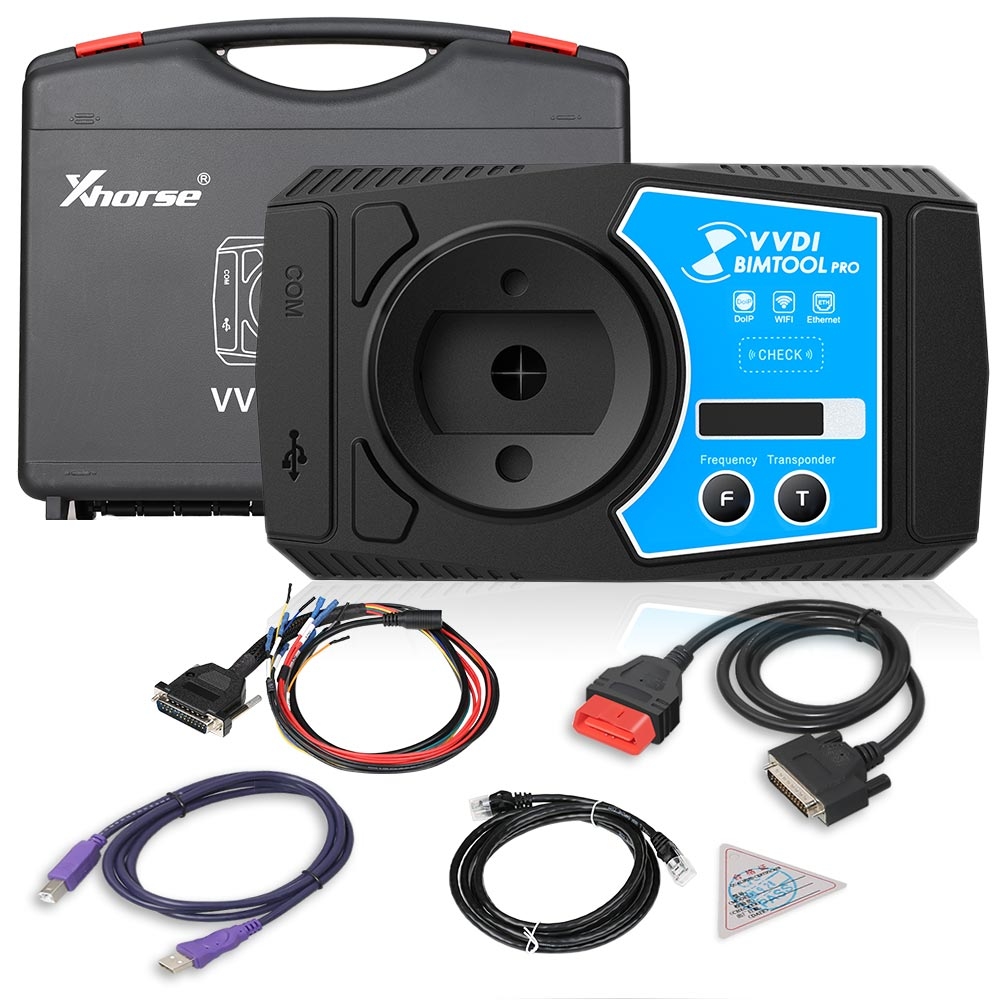

Package List:

1pc x VVDI BIMTool Pro Main Unit
1pc x OBD Cable
1pc x Ethernet Cable
1pc x USB Cable
1pc x ECU Reflash Cable
1pc x Plastic Box
